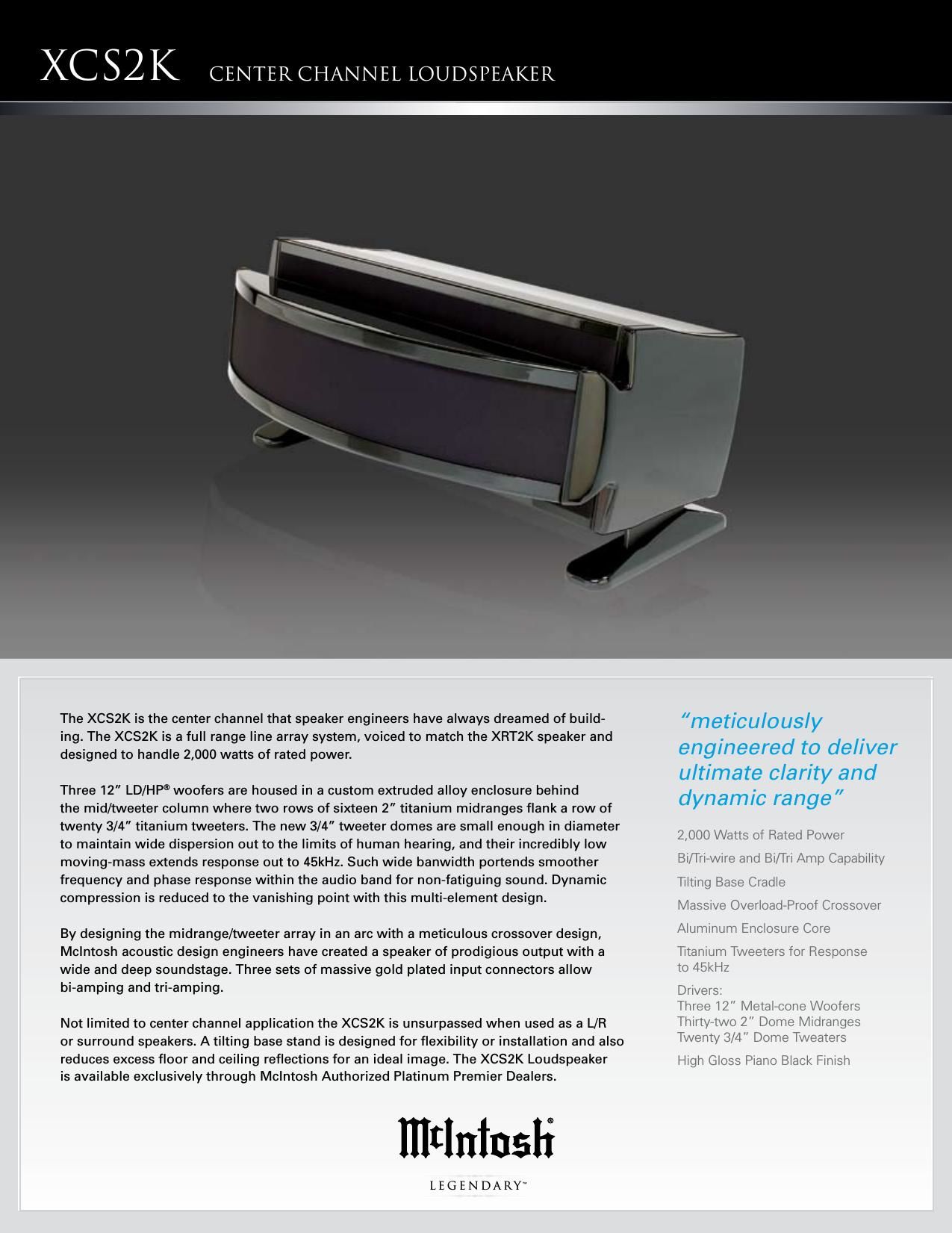

xcs2k center channel loudspeaker
REFERENCE SPL
2.8V / 1m: 86db
CROSSOVER FREQUENCIES
250Hz & 1.5kHz
DIMENSIONS (H x W x D)
19-1/4 (48.9cm) x 42-1/2 (107.9cm) x
25 (63.5cm)
EXTERIOR SURFACES
High gloss black polyester/brushed aluminum
GRILLE FINISHES
Black knit cloth with high gloss black trim
WEIGHT
203 Ibs. (92.3 kg) net
SYSTEM TYPE
Sealed Arc Array, 3-Way
NORMAL IMPEDANCE
8 Ohms
POWER HANDLING
2,000 Watts
MAGNETIC SHIELDING
All Drivers
WOOFERS
Three 12 Extented Excursion
MIDRANGE
Thirty-two 2 Inverted Titanium Dome
TWEETERS
Twenty 3/4 Titanium Dome
ANECHOIC RESPONSE
16Hz -“ 45kHz
TITANIUM DOME TWEETERS
These dome drivers have titanium
diaphragms with frequency response to
45kHz. Their small size is ideal fro produc-
ing a wide angle stereo sound image.
INVERTED DOME MIDRANGES
Each midrange driver is 2 in diameter
with a titanium inverted dome. Titanium
has great rigidity resulting in smoother
uncolored reproduction throughout the
critical mid frequencies.
ALUMINUM CONE WOOFERS
These metal cone woofers produce
powerful bass down to 16Hz without
any trace of chestyness. The resulting
increase in clarity is easily noticed with
piano and voice.
THREE SETS OF INPUT
Three sets of massive gold plated input
connectors make Bi and Tri-amping and
Bi and Tri-wiring a snap.
ARCED MID-TWEETER-MID
DESIGN
Placing a row of tweeters between two
rows of midranges in an arc yields wide
dispersion in all directions. This design
projects a wide image and deep sound
stage throughout the listening room.
The sealed aluminum cabinet allows the
system to be located close to a rear wall
without bass boom.
FOR THE CONSUMERS
PROTECTION
In order to ensure the highest level
of customer satisfaction, new McIntosh
products may only be purchased over-the-
counter or delivered and installed by an
Authorized McIntosh Dealer.
McIntosh products that are purchased
over the Internet, by phone or mail order
are presumed to be used and do not
qualify for any McIntosh Warranty.
McIntosh does not warrant, in any way,
products that are purchased from anyone
who is not an Authorized Dealer or prod-
ucts that have had their serial number
altered or defaced.
