136

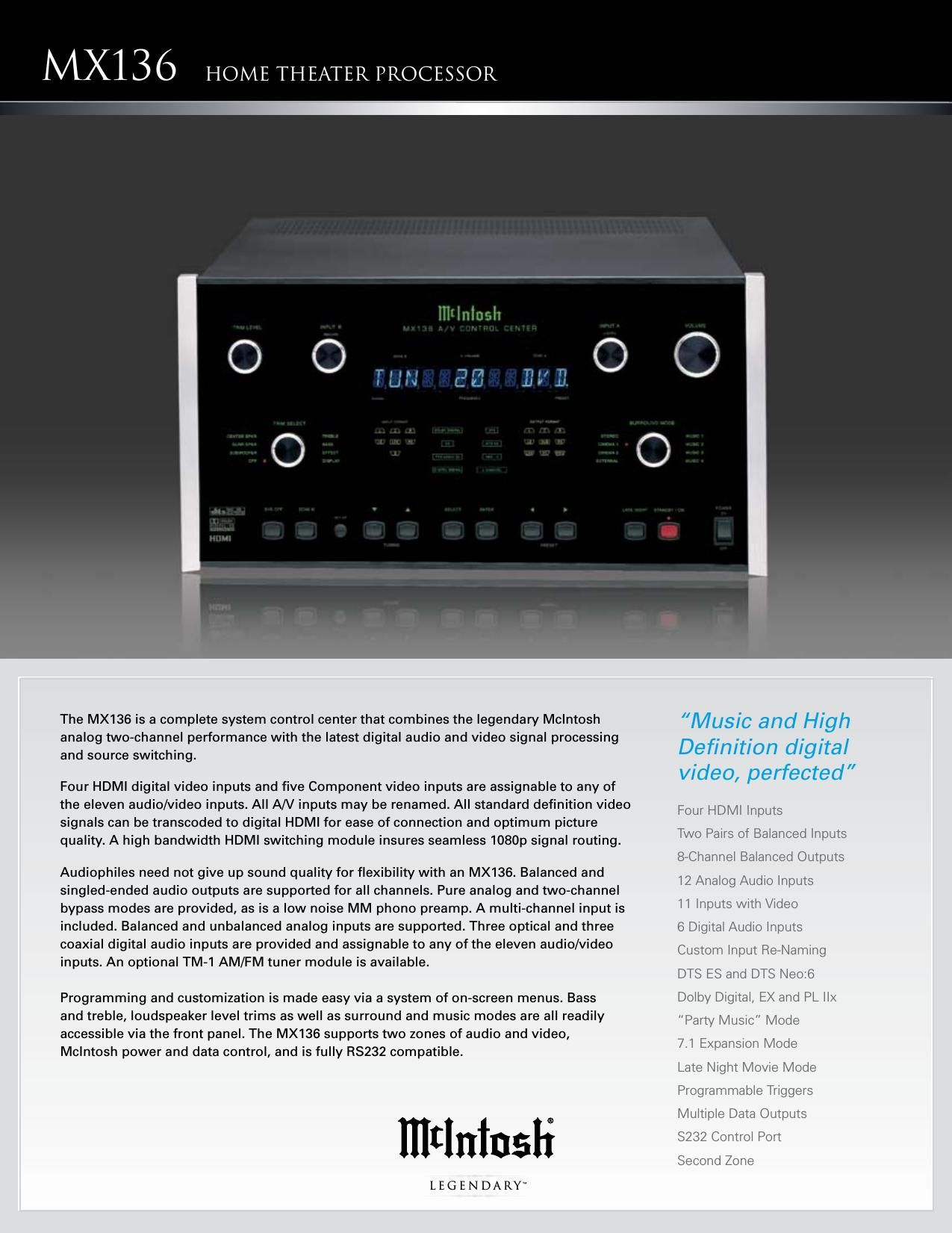

Mx136 home theater processor
FREQUENCY RESPONSE STEREO MODE
LEFT and RIGHT FRONT Channels, +0, -0.5dB from
20Hz to 20kHz
DOLBY PRO LOGIC IIx MODE
and MUSIC MODES
LEFT, CENTER and RIGHT FRONT, LEFT and RIGHT
SURROUND and BACK channels, +0, -0.5dB from
20Hz to 20kHz
If SMALL speakers are programmed, the above
channels employ high pass filters with a corner
frequency of 80Hz and a 12dB per octave roll-off.
DD, DTS, and 8 CHANNEL
EXTERNAL INPUT
All channels, +0, -0.5dB from 20Hz to 20kHz
SUBWOOFER
Low pass filtered with an 80Hz corner frequency
and 24dB per octave roll-off in all Modes except
External.
RATED OUTPUT
2V from all Outputs
OUTPUT IMPEDANCE
Less than 600 Ohms all Outputs
MAXIMUM OUTPUT
8V from all Outputs
TOTAL HARMONIC DISTORTION
All channels, 0.005% from 20Hz to 20kHz
INPUT SENSITIVITY
Line Level: 100mV for 500mV output
Phono: 1mV for 500mV output
Dolby Level: 200mV External Processor
Reference Level: 200mVSIGNAL-TO-NOISE RATIO, A-WEIGHTED
98dB below rated output
MAXIMUM INPUT SIGNAL
High Level: 6V
INPUT IMPEDANCE:
High Level: 20k Ohms, Phono: 47k Ohms
VOLTAGE GAIN
High Level to Tape Output: 0dB
High Level to Preamp Output: 14dB
Phono to Preamp Output: 54dB
TONE CONTROLS
Bass and Treble variable 12dB boost to
12dB cut
POWER REQUIREMENTS
100V, 110V, 120V, 220V, 230V, 240V,
50/60Hz, 65 watts
OVERALL DIMENSIONS (H x W x D)
includes feet
9-7/16 (24cm) x 17-1/2 (44.5cm) x
18-3/4 (47.6cm)
WEIGHT
31 lbs. (14.1Kg) net, 46 lbs. (20.9Kg) in
shipping carton
FLEXIBLE SET UP
Six customizable music modes which are
assignable to any of the 11 inputs.
Easy adjustment from front panel or
remote without layered menus.
Separate bass and treble settings for
each source.
Fully re-nameable inputs.
A full compliment of balanced XLR
or unbalanced outputs.
2 sets of balanced inputs.
AM/FM TUNER OPTION
Add the TM-1 Tuner Module and
rediscover how good radio can be
with a McIntosh tuner.
VIDEO TRANSCODING
Standard definition video signals can
be transcoded up to Component and/or
digital HDMI.
MULTI ZONE FLEXIBILITY
Support for two zones of both audio
and video.
REMOTE CONTROL
One button operation with all McIntosh
products via power and data control.
IR and RS 232 compatible for easy
interface with third party controllers.
FOR THE CONSUMERS
PROTECTION
In order to ensure the highest level
of customer satisfaction, new McIntosh
products may only be purchased over-the-
counter or delivered and installed by an
Authorized McIntosh Dealer.
McIntosh products that are purchased
over the Internet, by phone or mail order
are presumed to be used and do not
qualify for any McIntosh Warranty.
McIntosh does not warrant, in any way,
products that are purchased from anyone
who is not an Authorized Dealer or prod-
ucts that have had their serial number
altered or defaced.
