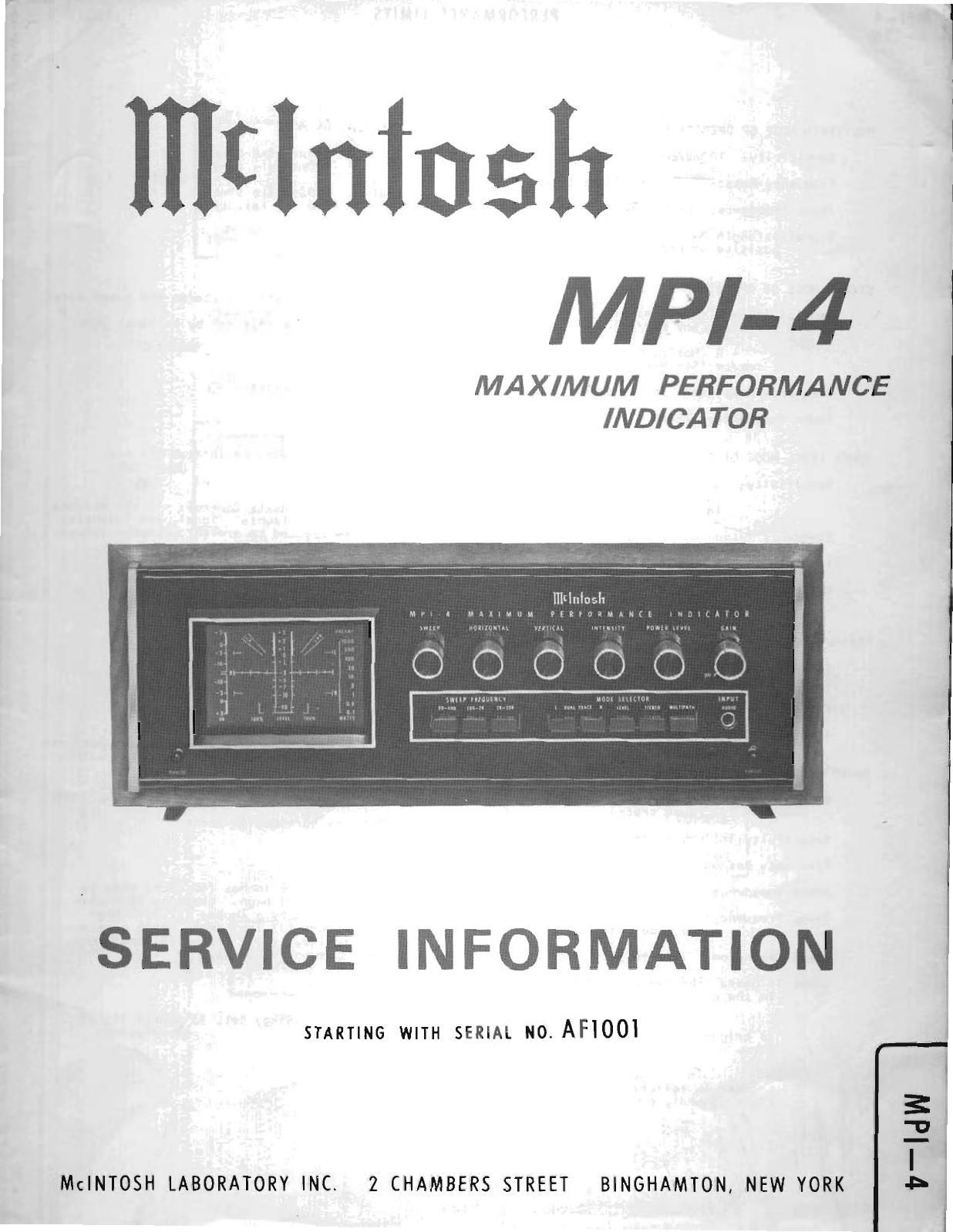

This is the 26 pages manual for McIntosh MPI 4 Service Manual.
Read or download the pdf for free.
If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.
'MPI-4
MULTIPATH MODE OF OPERATION
Sensitivity: IOOmV/cm
Frequency Response: DC to SOkHZ (-ZdB)
Input Impedance: 250kfl
Signal Strength Polarity: Selectable
positive or negative
STEREO MODE OF OPERATlON
,Sensitivity - L (Vertical Amp.): l.75mV
rms/cm (SmV P-P/cm)
- R (Horizontal Amp.): l.75mv
rms/cm (SmV P-P/cm)
Frequency Response: 5H2 to 50kHz (-BdB)
Input Impedance: ZSOkQ
POWER LEVEL MODE OF OPERATION
Sensitivity: O.l to IOOO average watts for
Full scale indication (+3dB)
In 9 calibrated steps.
Frequency Response: 5H2 to IDOkHz (-SdB)
Input Impedance: 7Skfl
Calibration: For bridging h, 8 or l6 ohm
speaker loads
PREAMP LEVEL MODE OF OPERATION
Sensitivity: lSmV rms for +3dB
indication
Frequency Response: 5H2 to 50kHz
Input Impedance: ZSOkQ
SWEEP MODE OF OPERATION
Display modes: Left, right, or both
(dual trace)
Sensitivity: l.6mV rms/cm (h.5mV P-P/cm)
Frequency Response: 5H2 to SOkHz (-3dB)
Input Impedance: ZSOkn
Sweep Frequency: 20Hz to ZOkHz in 3
Decade ranges
Sweep Expansion: .25X to 5X
Sweep Trigger: The sweep is triggered only
in the presence of an input signal.
In the single trace mode it
is triggered by the displayed wave-
Form.
In the dual trace mode the
trigger is selectable: Left channel,
right channel, or line Frequency.
PERFORMANCE LIMITS
LEVEL INDICATION MODE
Normal: ZSUUS rise time
SOOms tell time
Peak: ZSOps rise time
IOO sec fall time
Manual reset
LOW PASS FILTER
lékHz L. P. Filter for stereo and sweep modes
l9kHz and 38kHz rejected by at least 30dE
RETICLE LIGHTING
Selectable: On-Off
CRT
3 inch round tube, calibrated S x 6cm
lkV accelerating potential
Automatic intensity Control: In the absence
of a horizontal signal, the intensity
is reduced to prevent phosphor damage.
SEMICONDUCTOR COMPLEMENT:
2 integrated circuits
23 Transistors
l0 Light emitting diodes
29 Diodes
POWER SUPPLIES
All are regulated to give equivalent perform-
ance For line voltages of IOO to l35 VOIES.
POWER REQUIREMENTS
IZO volts SO/6OHz 50 watts
SIZE
Front panel I6 inches (h0.65cm) wide by
S-7/I6 (I3. cm) high. Chassis, l5 inches
(38.Icm) wide by 5 inches (l2.7cm) high
by l3 inches (33.lcm) deep. Knob clear-
ance required, l-i/Z inches (3.85cm) in
front of mounting panel.
WEIGHT
2| pounds (9.55kg) Net, 33 pounds (ISkg)
shipping.
