McIntosh MHA 100 Owners Manual

This is the 32 pages manual for McIntosh MHA 100 Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 32

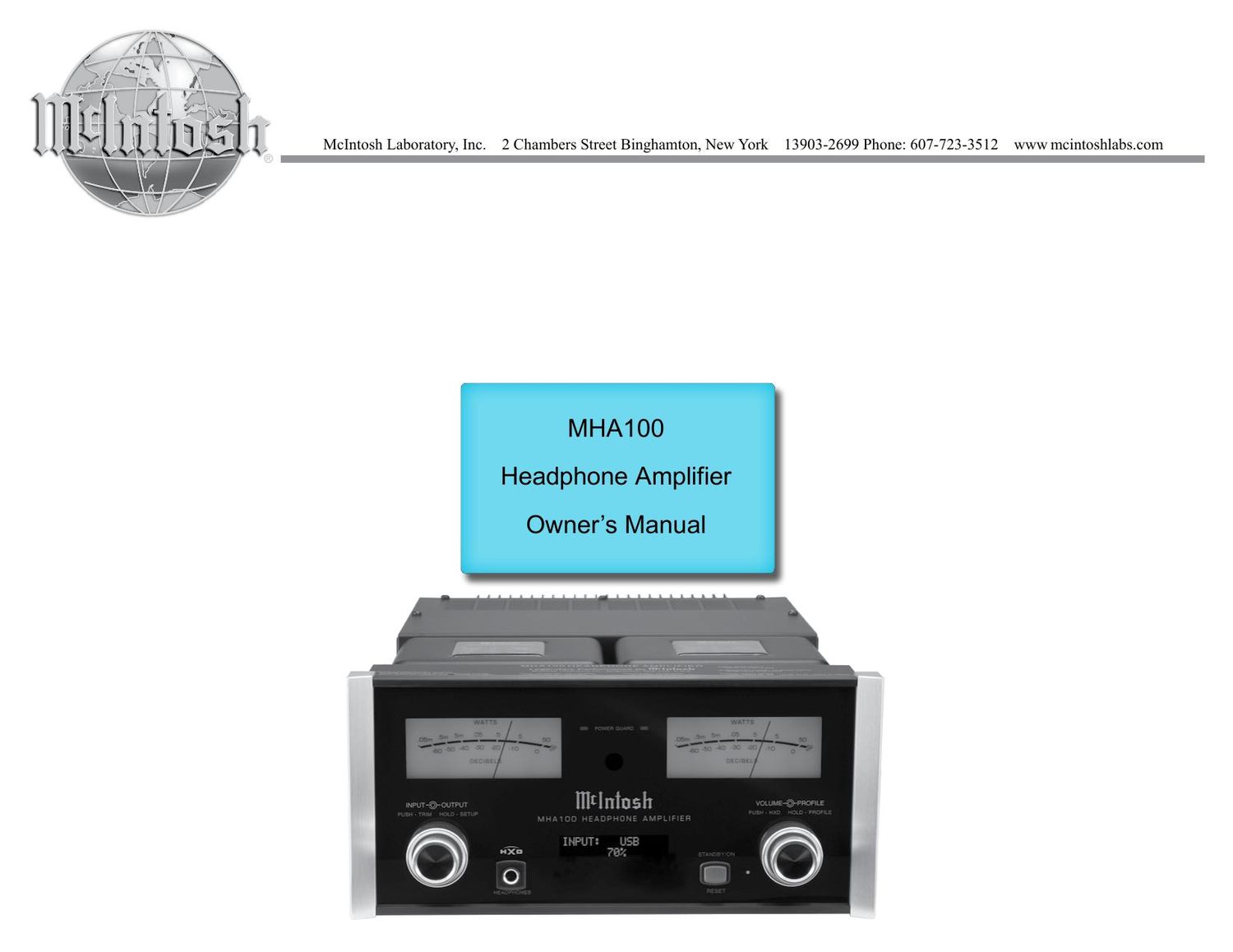

McIntosh MHA 100 Owners Manual

Extracted text from McIntosh MHA 100 Owners Manual (Ocr-read)


Page 1

2 The lightning flash with arrowhead, within an equilateral triangle, is intended to alert the user to the presence of uninsulated dangerous voltage within the products en- closure that may be of sufficient magnitude to constitute a risk of electric shock to persons.The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. WARNING - TO REDUCE RISK OF FIRE OR ELECTRICAL SHOCK, DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED PERSONNEL. To prevent the risk of electric shock, do not remove cover or back. No user-serviceable parts inside. 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with a dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturers instruc- tions. 8. Do not install near any heat sources such as radiators, heat registers, stoves, or other appa - ratus (including amplifiers) that produce heat. 9. Do not defeat the safety purpose of the polar - ized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11. Only use attachments/accessories specified by the manufacturer. 12. Use only with the cart, stand, tripod, bracket, or table specified by the manu - facturer, or sold with the appa - ratus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over. 13. Unplug this apparatus during lightning storms or when unused for long periods of time. 14. Refer all servicing to qualified service person - nel. Servicing is required when the apparatus has been damaged in any way, such as power- supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. 15. Do not expose this equipment to dripping or splashing and ensure that no objects filled with liquids, such as vases, are placed on the equipment. 16. To completely disconnect this equipment from the a.c. mains, disconnect the power supply cord plug from the a.c. receptacle. 17. The mains plug of the power supply cord shall remain readily operable. 18. Do not expose batteries to excessive heat such as sunshine, fire or the like. 19. Connect mains power supply cord only to a mains socket outlet with a protective earthing connection. IMPORTANT SAFETY INSTRUCTIONS! PLEASE READ THEM BEFORE OPERATING THIS EQUIPMENT.

Page 2

3 Your decision to own this McIntosh MHA100 Head- phone Amplifier ranks you at the very top among discriminating music listeners. You now have the best. The McIntosh dedication to precision performance assures many years of musical enjoyment. Please take a short time to read the information in this manual. We want you to be as familiar as pos - sible with all the features and functions of your new McIntosh. Thank You Please Take A Moment Technical Assistance If at any time you have questions about your McIntosh product, contact your McIntosh Dealer who is familiar with your McIntosh equipment and any other brands that may be part of your system. If you or your Dealer wish additional help concerning a suspected problem, you can receive technical assistance for all McIntosh products at: McIntosh Laboratory, Inc. 2 Chambers Street Binghamton, New York 13903 Phone: 607-723-3512 Fax: 607-724-0549 Customer Service If it is determined that your McIntosh product is in need of repair, you can return it to your Dealer. You can also return it to the McIntosh Laboratory Service Department. For assistance on factory repair return procedure, contact the McIntosh Service Department at: McIntosh Laboratory, Inc. 2 Chambers Street Binghamton, New York 13903 Phone: 607-723-3515 Fax: 607-723-1917 The serial number, purchase date and McIntosh Dealer name are important to you for possible insurance claim or future service. The spaces below have been provided for you to record that information: Serial Number: _______________________________ Purchase Date: _______________________________ Dealer Name: ________________________________ Copyright 2014 © by McIntosh Laboratory, Inc. Safety Instructions ............................................................... 2 Thank You and Please Take a Moment ...............................3 Technical Assistance and Customer Service ....................... 3 Table of Contents ................................................................. 3 General Information ............................................................ 4 Connector and Cable Information .......................................4 Introduction ........................................................................\ . 5 Performance Features .......................................................... 5 Dimensions ........................................................................\ .. 6 Installation ........................................................................\ ... 7 Connections: Rear Panel Connections ....................................................... 8 Connecting Components and Optional Loudspeakers .............................................. 10 -11 System Thru Connections ................................................. 12 External Power Amplifier Connections ............................ 13 Remote Control and Front Panel: Remote Control Push-buttons ...........................................14 How to use the Remote Control ......................................... 15 Front Panel Displays, Controls, Push-button and Jack ......................................................... 16 Setup Mode: How to Operate the Setup Mode ....................................... 17 Default Settings .......................................................... 17 Fi r m w a r e Ve r s i o n ....................................................... 18 Table of Contents Setup Mode: cont Input Renaming .......................................................... 18 Speaker Size ............................................................... 19 Subwoofer Mode ......................................................... 19 Power Mode ................................................................ 19 Remote Control ........................................................... 20 Operation: How to Operate the MHA100 ........................................... 21 Power On /Off ............................................................. 21 Source Selection ......................................................... 21 Volume Control .......................................................... 21 Trim Functions: Trim Functions Introduction .............................21 Bass Boost ......................................................... 21 Balance .............................................................. 22 Trim Level ......................................................... 23 Mono/Stereo Mode ........................................... 22 Meter Backlight ................................................ 23 Display .............................................................. 23 Digital Audio (Display), Mute .......................... 23 Headphone Jack, Headphone HXD TM ........................ 24 Output Control ............................................................ 24 Prof ile Mode .......................................................... 24 -26 Power Output Meters and Power Guard .....................26 Using a Separate Power Amplifier ............................. 26 Optical and Coaxial Digital Inputs ............................ 27 USB Input Operation and Driver Installation ............ 27 Installing the Software .......................................... 27-28 USB Audio Driver Operation and Reset of Microprocessors ................................................. 29 Resetting the MHA100 to default settings ................. 27 Specifications ............................................................ 30 Packing Instr uctions ................................................. 31
