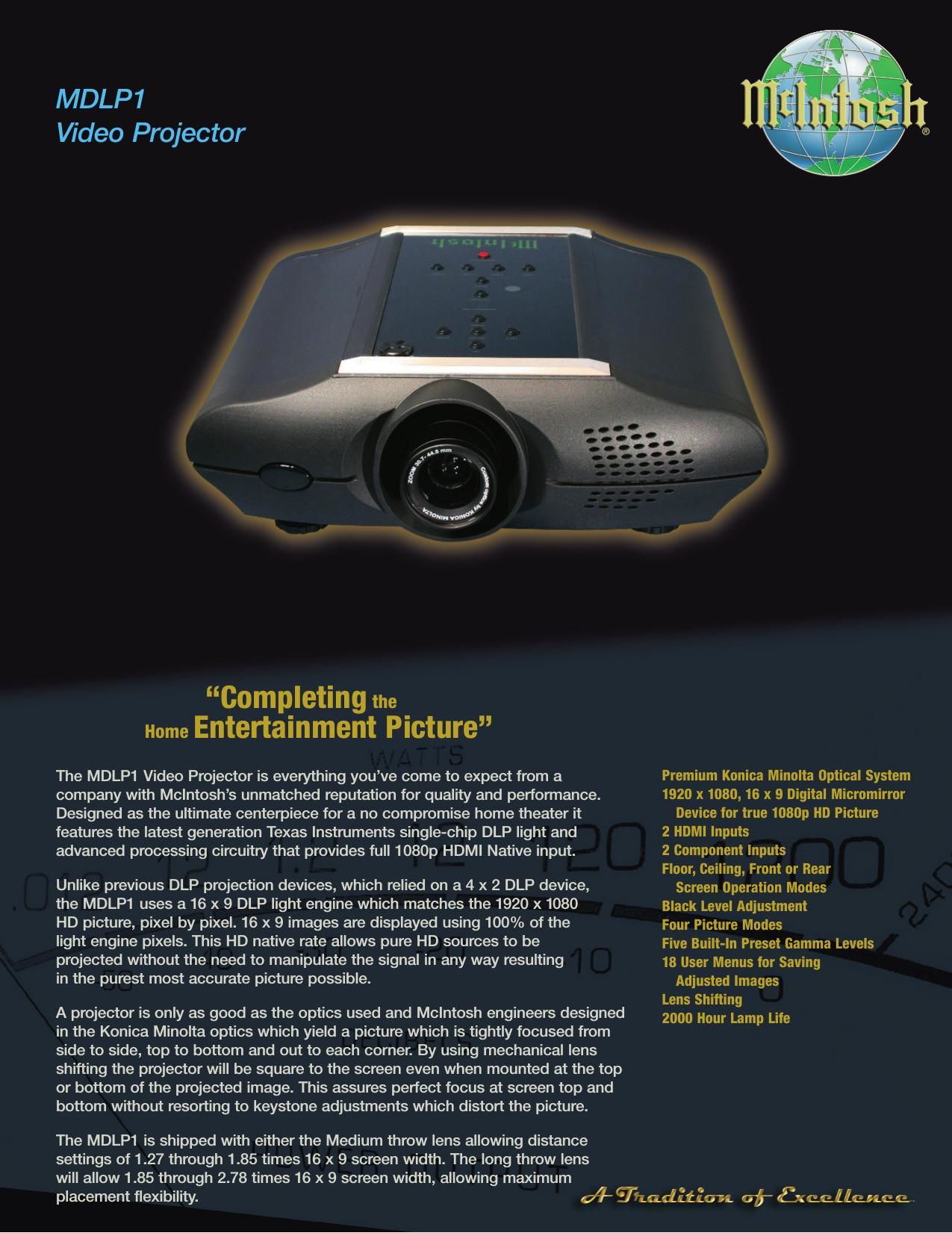

MDLP1
Video Projector
CEILING MOUNT
WITH EXTENSION
Ceiling mount hardware is
included along with the
extension post for maximum
placement flexibility.
WORLDWIDE VIDEO
FORMAT SUPPORT
Video sources from around the
world, NTSC, PAL and SECAM
are supported. When in the
Automatic Mode the MDLP1 will
lock onto and display any video
source including all HD sources
without the need for extraneous
video conversion steps.
TRADITIONAL McINTOSH GLASS
PANEL APPEARANCE
The traditional McIntosh glass
panel is used for set mounted
operational controls. Illumin-
ated McIntosh logo may be left
illuminated or turned off as
desired. The custom designed
projector housing enhances the
MDLP1 appearance as well as
muting sound for quiet operation.
COMPANION PRODUCTS
The VP1000 Video Processor
and the AP1000 Audio Processor
are logical companions for
the MDLP1. Your Authorized
Dealer can provide additional
information on other McIntosh
product combinations.
OPTICAL CHARACTERISTICS PANEL0.8" 16:9
1920 x 1080 pixels
Digital Micromirror Device
LALMPSuper High Pressure 200W DC
LENSF: 30.7 - 44.5mm (Medium Throw)
44.5 - 66.75 (Long Throw)
F: F3.0 / F6.0
PROJECTION SIZE 70 to 250 inches (Medium Throw)
80 to 300 Inches (Long Throw)
LIGHT OUTPUT600/700 ANSI LUMEN Typical
(F5.0/F3.0)
INPUT/OUTPUT
COMPONENT IN
3 RCA x 2; Y, CB/PB,CR/PR
HDMI INHDMI x 2; HDMI 1.1 Compliant
DATA I N1/8" Mini Jack
POWER CONTROL IN1/8" Mini Jack
5V-12V
POWER CONTROL OUT1/8" Mini Jack
5V
AC IN3 Prong Grounding Type
TRIG. 1 OUT, TRIG. 2 OUT1/8" Mini Jack x 2
Output: DC12V or 0V
RS-232CRS-232C Receptacle
GENERAL
POWER REQUIREMENTS
AC 100 -“120V / 220 -“ 240V, 50/60Hz
POWER CONSUMPTIONLess than 350 W
STAND-BY CONSUMPTIONLess than 0.3W (AC 100-120V)
Less than 0.5W (AC 220-240V)
DIMENSIONS (H x W x D)6-3/4" (17.2cm) x 20-1/4" (51.4cm) 19-1/16" (50.1cm)
WEIGHT 40 lbs. (88.2kg) net, 54 lbs. (24.5kg) in shipping carton
OPERATING TEMPERATURE41° F (5°C) to 95° F (35°C)
OPERATING HUMIDITY30% to 85%
