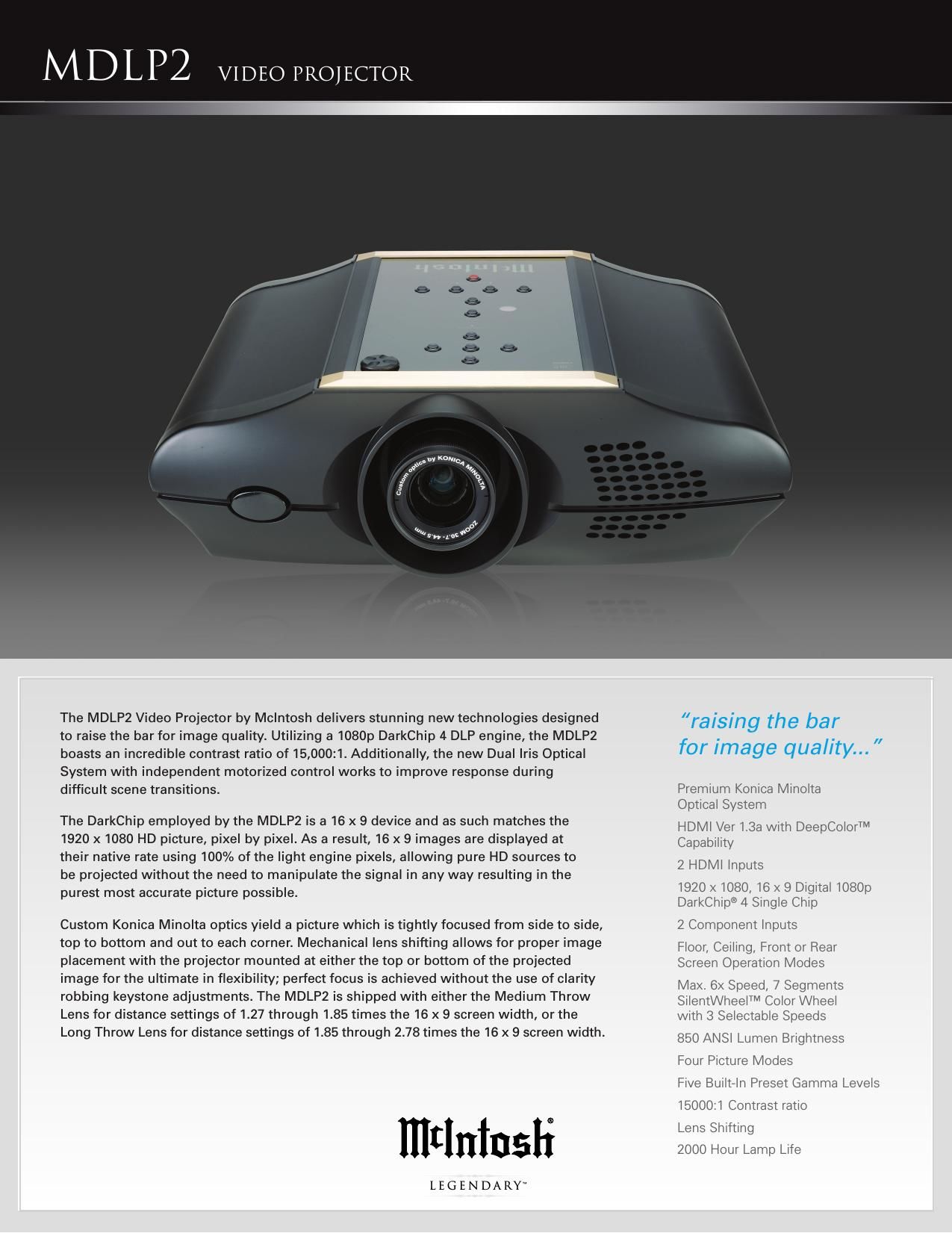

M DLP2 VIDEO PROJECTOR
OPTICAL CHARACTERISTICS PANEL
0.8 16:9, 1920 x 1080 pixels Digital
Micromirror Device
LAMP
Super High Pressure 200W DC
LENS
F: 30.7 - 44.5mm (Medium Throw)
44.5 - 66.75 (Long Throw) F: F3.0 / F6.0
PROJECTION SIZE
70 to 250 inches (Medium Throw)
80 to 300 Inches (Long Throw)
INPUT/OUTPUT COMPONENT IN
3-RCA x 2: Y, CB/PB, CR/PR
HDMI IN
HDMI x 2; HDMI 1.3a Compliant
DATA IN
1/8 Mini Jack
POWER CONTROL IN
1/8 Mini Jack, 5V-12V
POWER CONTROL OUT
1/8 Mini Jack, 5V
AC IN
3 Prong Grounding Type
TRIG. 1 OUT, TRIG. 2 OUT
1/8 Mini Jack x 2
Output: DC12V or 0VRS-232C
RS-232C Receptacle
GENERAL POWER REQUIREMENTS
AC 100 -“120V / 220 -“ 240V, 50/60Hz
POWER CONSUMPTION
Less than 350 W
STAND-BY CONSUMPTION
Less than 0.3W (AC 100-120V)
Less than 0.5W (AC 220-240V)
OPERATING TEMPERATURE
41° F (5°C) to 95° F (35°C)
OPERATING HUMIDITY
30% to 85%
OVERALL DIMENSIONS (H x W x D)
Height: 6-3/4 (17.2cm) with feet retracted;
9-1/2 (17.2cm) with feet extended
Width: 20-1/4 (51.4cm) 19-1/16 (50.1cm)
Depth: 18-3/16 (47.8cm) with medium throw
lens and 19-1/16 (48.4cm) with long throw lens
WEIGHT
40 lbs. (18.2kg) net,
54 lbs. (24.5kg) in shipping carton
CEILING MOUNT
Ceiling mount hardware is included
with the MDLP2.
WORLDWIDE VIDEO
FORMAT SUPPORT
Video sources from around the world,
NTSC, PAL and SECAM are supported.
When in the Automatic Mode the
MDLP2 will lock onto and display
any video source including all
HD sources without the need for
extraneous video conversion steps.
TRADITIONAL McINTOSH
GLASS PANEL APPEARANCE
The traditional McIntosh glass panel
is used for set mounted operational
controls. Illuminated McIntosh logo
may be left illuminated or turned off
as desired. The custom designed
projector housing enhances the
MDLP2 appearance as well as
muting sound for quiet operation.
COMPANION PRODUCTS
The VP1000 Video Processor and
McIntosh Preamp/Processors are
logical companions for the MDLP2.
Your Authorized Dealer can provide
additional information on other
McIntosh product combinations.
FOR THE CONSUMERS
PROTECTION
In order to ensure the highest level of
customer satisfaction, new McIntosh
products may only be purchased over-
the-counter or delivered and installed
by an Authorized McIntosh Dealer.
McIntosh products that are purchased
over the Internet, by phone or mail order
are presumed to be used and do not
qualify for any McIntosh Warranty.
McIntosh does not warrant, in any way,
products that are purchased from anyone
who is not an Authorized Dealer or
products that have had their serial
number altered or defaced.
