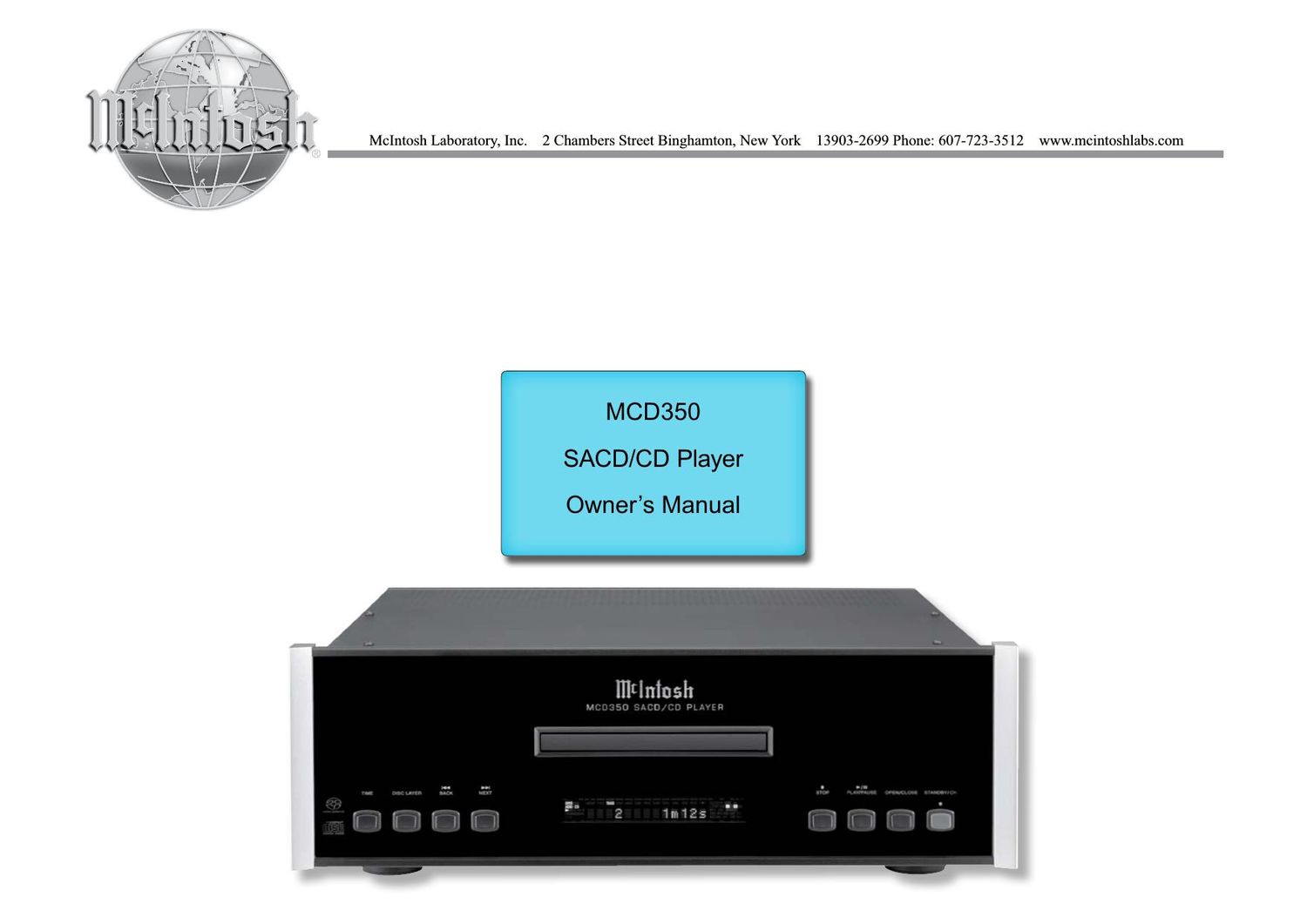

McIntosh MCD 350 Owners Manual

Page 1

2  \b  \b \f    \f\f   \f \f \f \f \b      \f            \f  \f \b  \f\b       -   \f \f    \f\b        \f  !    !    " #\f\f     \f \f \f \f \b      \f           \f \f  \b \f  \f  \f  $  \b%       \f  \f\f  \b  \f\f " WARNING - TO REDUCE RISK OF FIRE OR ELECTRICAL SHOCK, DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED PERSONNEL. To prevent the risk of electric shock, do not remove cover or back. No user-serviceable parts inside. CAUTION: Invisible Laser Radiation when open. DO NOT stare into the beam or view directly with opti- cal instruments. Use of controls or adjustments or performance of procedures other than those specified in the Owners Manual may result in Hazardous Radiation Exposure. AT T E N T I O N : Rayonnnement Laser Invisible en cas douverture. Ne pas regarder dans le faisceau ni observer di- rectement à laide dinstruments doptiques. Lutilisation de commandes, de réglages ou dinstructions autres que ceux spécifiés dans le manuel du propriétaire peut entraîner une exposition x à des rayonnements dangereux LUOKAN 1 LASERLAITE KLASS 1 LASER APPARAT VA RO I T US! Laitteen kayttaminen muulla kuin tassa kayttoohjeessa mainitulla tavalla saat- taa altistaa kayttajan turvallisuusluokan 1 ylittavalle nakymattomalle lasersate- iiylle. VA R N I NG! Om apparaten anvands pa annat satt an i denna bruksanvisning specificerats, kan anvandaren utsattas for osynbg laser- straining, som overskrider gransen for laserklass 1. This product incorporates an embedded CLASS 3R Laser (IEC60825-1). ATTENTION: RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR Additional Safety Information is supplied in a separate document Imp\ ortant Additional Operation Information Guide

Page 2

3 Copyright 2017 © by McIntosh Laboratory, Inc. Table of Contents Thank You Your decision to own this McIntosh MCD350 SACD/ CD Player ranks you at the very top among discrimi- nating music listeners. You now have The Best. The McIntosh dedication to Quality, is assurance that you will receive many years of visual and musical enjoyment from this unit. Please take a short time to read the information in this manual. We want you to be as familiar as pos- sible with all the features and functions of your new McIntosh. Please Take A Moment The serial number, purchase date and McIntosh Dealer name are important to you for possible insurance claim or future service. The spaces below have been provided for you to record that information: Serial Number: Purchase Date: Dealer Name: Technical Assistance If at any time you have questions about your McIntosh product, contact your McIntosh Dealer who is familiar with your McIntosh equipment and any other brands that may be part of your system. If you or your Dealer wish additional help concerning a suspected problem, you can receive technical assistance for all McIntosh products at: McIntosh Laboratory, Inc. 2 Chambers Street Binghamton, New York 13903 Phone: 607-723-1545 Fa x: 607-724 - 0549 Customer Ser vice If it is determined that your McIntosh product is in need of repair, you can return it to your Dealer. You can also return it to the McIntosh Laboratory Service Department. For assistance on factory repair return procedure, contact the McIntosh Service Department at: McIntosh Laboratory, Inc. 2 Chambers Street Binghamton, New York 13903 Phone: 607-723-3515 Fa x: 607-723 -1917 Safety Instructions ..................................................... 2 (Separate Sheet) ................... Important Additional Operation Information Guide Thank You and Please Take a Moment ...................... 3 Technical Assistance and Customer Service ............. 3 Table of Contents ....................................................... 3 General Information .................................................. 4 Disc Information ........................................................ 4 Connector and Cable Information ............................. 4 Introduction ................................................................ 5 Performance Features ................................................ 5 Dimensions ................................................................ 6Installation ................................................................. 7 Connections: Rear Panel Connectors ............................................... 8 Making Connections ............................................ 10-11 Front Panel Features: Front Panel Display and Push-buttons ......................12 Front Panel Information Display ...............................13 Remote Control: Remote Control Push-buttons ...................................14 How to Use the Remote Control ...............................15 Operation: How to Operate MCD350 ....................................16-21 Additional Information: Specifications ........................................................... 22 Packing Instruction .................................................. 23
