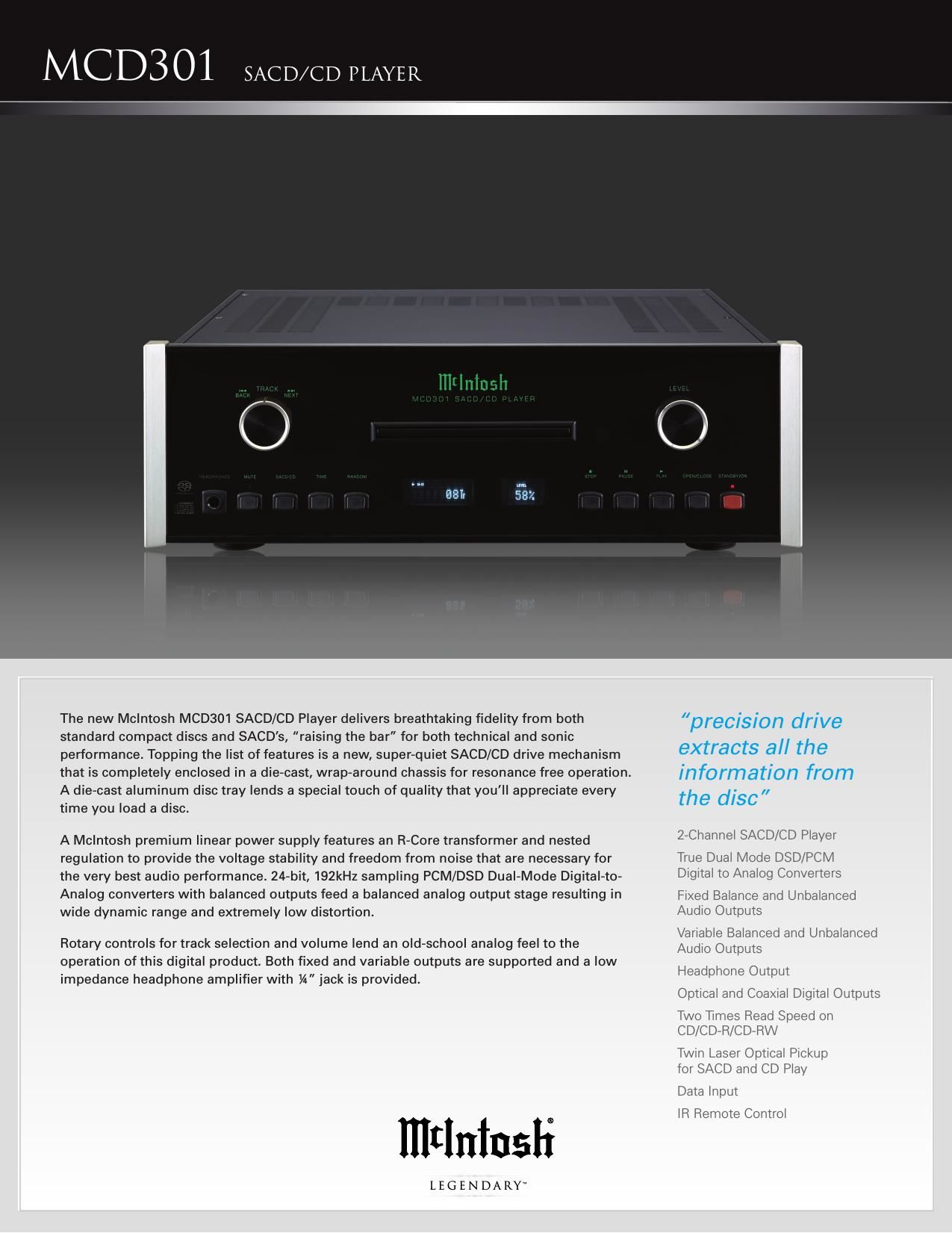

Mcd301 SACD/cd PLAYER
DIGITAL AUDIO OUTPUTS (CD Audio only) Format: SPDIF Optical: TOS Link, -15~-21dBm Coaxial: RCA Jack, 0.5V p-p @ 75ohms
PICKUP Type: Twin Laser Wavelength: 650nm(SACD)/790nm(CD) Laser Power: CLASS 2a/CLASS 1
POWER REQUIREMENTS 100~240 VAC, 50-60Hz 35Watts
OvERALL DIMENSIONS (H x W x D INCLUDING CONNECTORS AND fEET) 6 (15.24cm) x 17-1/2 (44.5cm) x 15-7/8(40.32cm) Note: When the Disc Tray is opened, the panel clearance required in front of mounting panel is 6-3/4 inches (17.2cm).
WEIGHT 28.2 pounds (12.79kg) net, 44.6 pounds (20.23kg) in shipping carton
DISC fORMATSSACD, CD, MP3, WMA
NUMBER Of CHANNELS 2
ANALOG AUDIO OUTPUTS 2VRMS (Fixed Unbalanced) 4VRMS (Fixed Balanced) 6VRMS (Variable Unbalanced) 12VRMS (Variable Balanced)
fREQUENCY RESPONSE SACD 4Hz-40KHz +0.5dB/-2dB CD 4Hz-20kHz +/-0.5dB
S/N RATIO 110dB
DYNAMIC RANGE 100dB
TOTAL HARMONIC DISTORTION SACD 0.002% CD 0.003%
TWO CHANNEL SACD/
CD PLAYER
The MCD301 is a two-channel SACD/CD player. SACD, hybrid SACD, CD, CD-R, CD-RW discs can be played on the MCD301.
LOW DISTORTION 24-BIT
DUAL-MODE D/A CONvERTER
The MCD301 utilizes the 24-bit, 192-KHz Sampling PCM/DSD Dual-Mode D/A converter with a wide dynamic range and extremely low distortion. Music at all levels is reproduced with extreme precision and elegance. The sound is truly exceptional.
vARIABLE BALANCED AND
UNBALANCED AUDIO OUTPUTS
Balanced for long cable runs in a noisy environment and unbalanced for short runs. Balanced offers optimum noise rejection. The maximum output level is
6Vrms which allows the direct drive of power amplifiers.
OPTICAL AND COAxIAL
DIGITAL OUTPUTS
Optical and coaxial digital outputs are provided for use with an external D/A Converter.
fOR THE CONSUMERS
PROTECTION
In order to ensure the highest level of customer satisfaction, new McIntosh products may only be purchased over-the-counter or delivered and installed by an Authorized McIntosh Dealer.
McIntosh products that are purchased over the Internet, by phone or mail order are presumed to be used and do
not qualify for any McIntosh Warranty. McIntosh does not warrant, in any way, products that are purchased from anyone who is not an Authorized Dealer or products that have had their serial number altered or defaced.
