To learn more, please call us at 1.800.538.6576. Loudspeaker specifications
system driver complement:
Two 4 inch Woofers (dual acoustic ports)
Two 2 inch Inverted Dome Midranges
Two 3/4 inch Dome Tweeters
frequency response:
60Hz - 45kHz
crossover frequency:
250Hz, 4,500Hz
enclosure finish:
High Gloss Black
Grille:
Black knit cloth with magnetic attachment
eLectronic specifications
network input:
Wired RJ-45, 10/100 Base-T,
Wireless 802.11, WPA, Apple AirPlay
usB input:
Type A Connector with Host Mode
Music Streaming
1A Charging for iPod and iPhoneauX input:
Input Sensitivity - 200m VRMS nominal
Maximum Input Signal - 2.2VRMS
Stereo RCA Connectors
GeneraL specifications
power requirements:
Factory configured for one of the
following AC Voltages:
100V ~ 50/60Hz at 25 watts
110V ~ 50/60Hz at 25 watts
120V ~ 50/60Hz at 25 watts
220V ~ 50/60Hz at 25 watts
230V ~ 50/60Hz at 25 watts
240V ~ 50/60Hz at 25 watts
Standby: Less than 0.5 watt
Note: Refer to the rear panel for the
correct voltage.
overall dimensions (WxHxd):
19-3/8 (49.2cm) x 8 (20.3cm)
x 17 (43.2cm) including connectors
and wi-fi antenna in vertical position
Weight:
31 lbs (14kg) net
for the consumers protection:
In order to ensure the highest level of customer
satisfaction, new McIntosh products may only
be purchased over-the-counter or delivered and
installed by an Authorized McIntosh Dealer.
McIntosh products that are purchased over the
Internet, by phone or mail order are presumed to
be used and do not qualify for any McIntosh
Warranty. McIntosh does not warrant, in any
way, products that are purchased from anyone
who is not an Authorized Dealer or products that
have had their serial number altered or defaced.
the Mcaire is compatible with the following
apple Mobile devices with the latest version
of the apple os software installed:
iPod touch (4th generation)
iPod touch (3rd generation)
iPod classic
iPod nano (6th generation)
iPod nano (5th generation)
iPhone 4S
iPhone 4
iPhone 3GS
Made for iPod and Made for iPhone mean that an electroni\
c accessory has been designed to connect specifically to iPod or
iPhone, respectively, and has been certified by the developer to meet Ap\
ple performance standards. Apple is not responsible for the
operation of this device or its compliance with safety and regulatory st\
andards. Please note that the use of this accessory with iPod,
iPhone, or iPad may affect wireless performance. AirPlay, the AirPlay lo\
go, iPad, iPhone, iPod, iPod classic, iPod nano, iPod shuffle,
and iPod touch are trademarks of Apple Inc., registered in the U.S. and \
other countries. Individual users are permitted to use iPhone,
iPod, iPod classic, iPod nano, iPod shuffle, and iPod touch for private \
copy and playback of non-copyrighted contents and contents
whose copy and playback is permitted by law. Copyright infringement is p\
rohibited by law.
The Wi-Fi CERTIFIED Logo is a certification mark of the Wi-Fi Alliance.

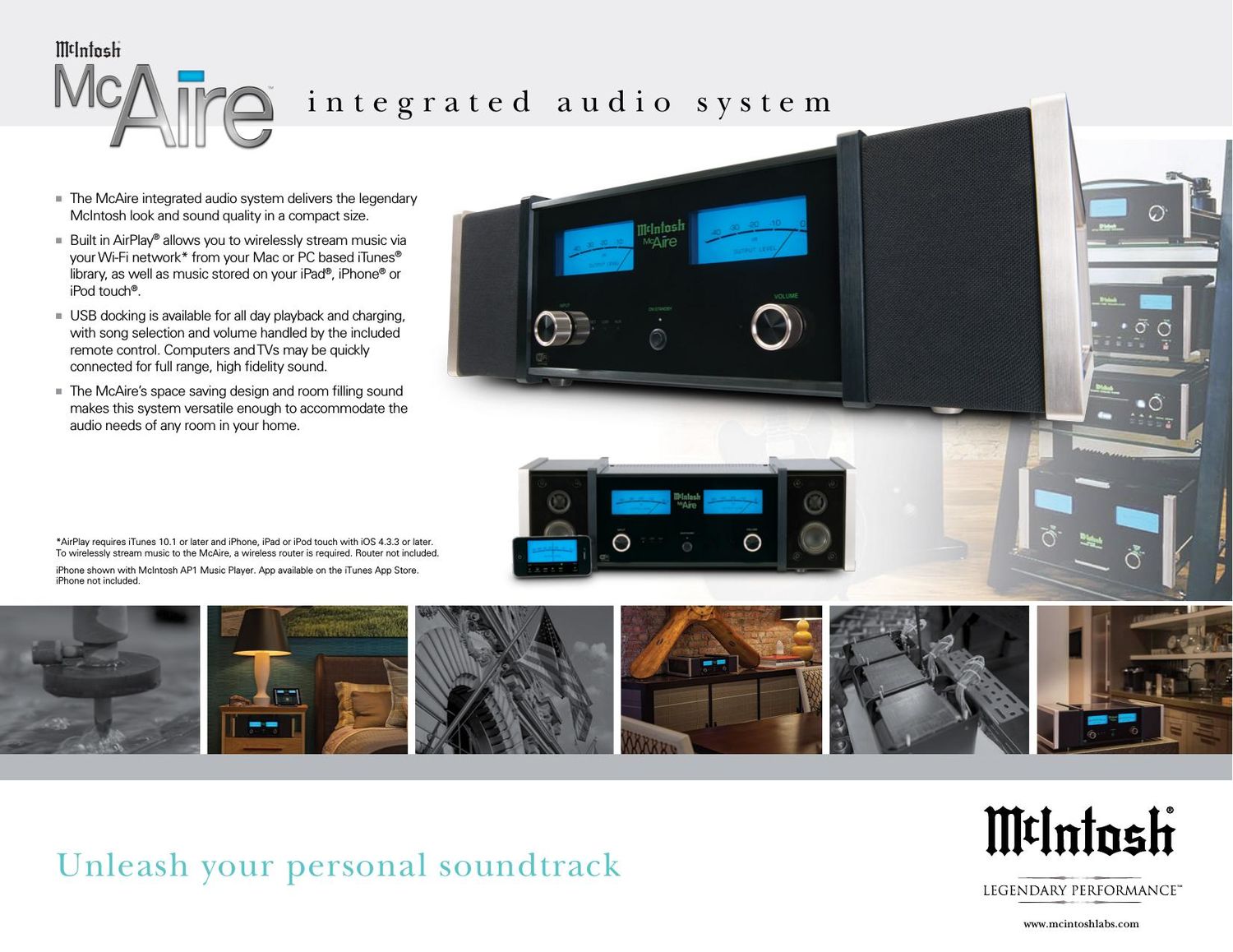

integrated audio system
