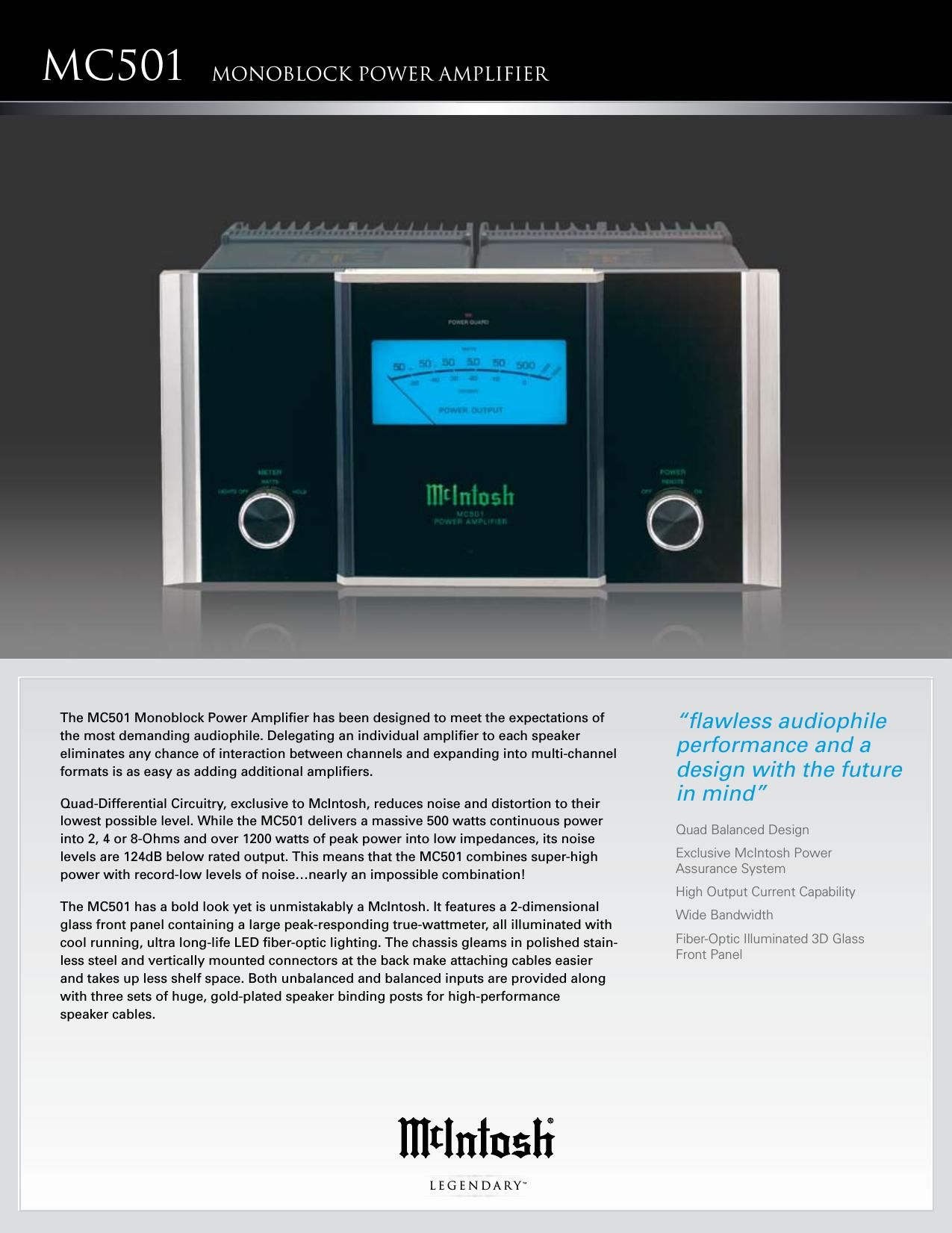

Mc501 Monoblock Power Amplifier
FREQUENCY RESPONSE
+0, -0.25dB from 20Hz to 20kHz
+0, -3dB from 10Hz to 100kHz
TOTAL HARMONIC DISTORTION
0.005% maximum at any level from 250mW
to rated power output.
INTERMODULATION DISTORTION
SMPTE 0.005% maximum if instantaneous
peak output does not exceed twice the
output rating.
A-WEIGHTED SIGNAL-TO-NOISE RATIO
Unbalanced and Balanced: 97dB
(124dB below rated output)
RMS POWER OUTPUT
500W minimum sine wave continuous
average power output from 20Hz to 20kHz.
INPUT IMPEDANCE
10,000 Ohms (unbalanced)
20,000 Ohms (balanced)
INPUT SENSITIVITY
2.1 Volts unbalanced, 4.2 Volts balanced
WIDE BAND DAMPING FACTOR
100 @ 8-Ohms
DYNAMIC HEADROOM
1.8dB
RATED POWER BAND
20Hz to 20kHz
POWER GUARD
®
Clipping is prevented and THD does not exceed 2%
with up to 14dB overdrive at 1kHz.POWER REQUIREMENTS
120V 50/60Hz, 6.6A
OVERALL DIMENSIONS (H x W x D)
9-7/16 (22.86cm) x 17-1/2 (44.45cm) x
14-13/16 (37.62cm) including front
panel and knobs.
WEIGHT
91.5 lbs. (41.6 kg) net
105.5 lbs. (48 kg) boxed
ADDITIONAL SPECIFICATION
DC Failure Protection
Thermal Sensors
Turn-on Delay
Soft Start Inrush Protection
Balanced and Unbalanced Inputs
Remote Power Control
Massive Gold Plated Output Binding Posts
Stainless Steel Chassis w/ Super Mirror Finish
EXCLUSIVE MCINTOSH
POWER ASSURANCE SYSTEM
A collection of technologies that
enhance performance and reliability
while protecting the amplifier and
loudspeakers.
POWER GUARD ®
A waveform comparison circuit
continuously monitors both input and
output signals. Power Guard dynamically
adjusts the input level to avoid clipping
while preventing harsh sounding
distortion.
SENTRY MONITOR ®
Fuse-less short-circuit protection
circuit disengages the output stage
before current exceeds safe operating
level -“ resets automatically.
OUTPUT AUTOFORMER ®
Unique McIntosh technology delivers
the full rated amplifier output with the
least possible distortion into loudspeaker
impedances of 2, 4, or 8 Ohms; you get all
the power you paid for and the freedom
to choose any loudspeaker.
WATTMETER
Swift, accurate response reveals program
peaks so staying within the power limits
of your loudspeakers is easy.
FOR THE CONSUMERS
PROTECTION
In order to ensure the highest level
of customer satisfaction, new McIntosh
products may only be purchased over-the-
counter or delivered and installed by an
Authorized McIntosh Dealer.
McIntosh products that are purchased
over the Internet, by phone or mail order
are presumed to be used and do not
qualify for any McIntosh Warranty.
McIntosh does not warrant, in any way,
products that are purchased from anyone
who is not an Authorized Dealer or prod-
ucts that have had their serial number
altered or defaced.
