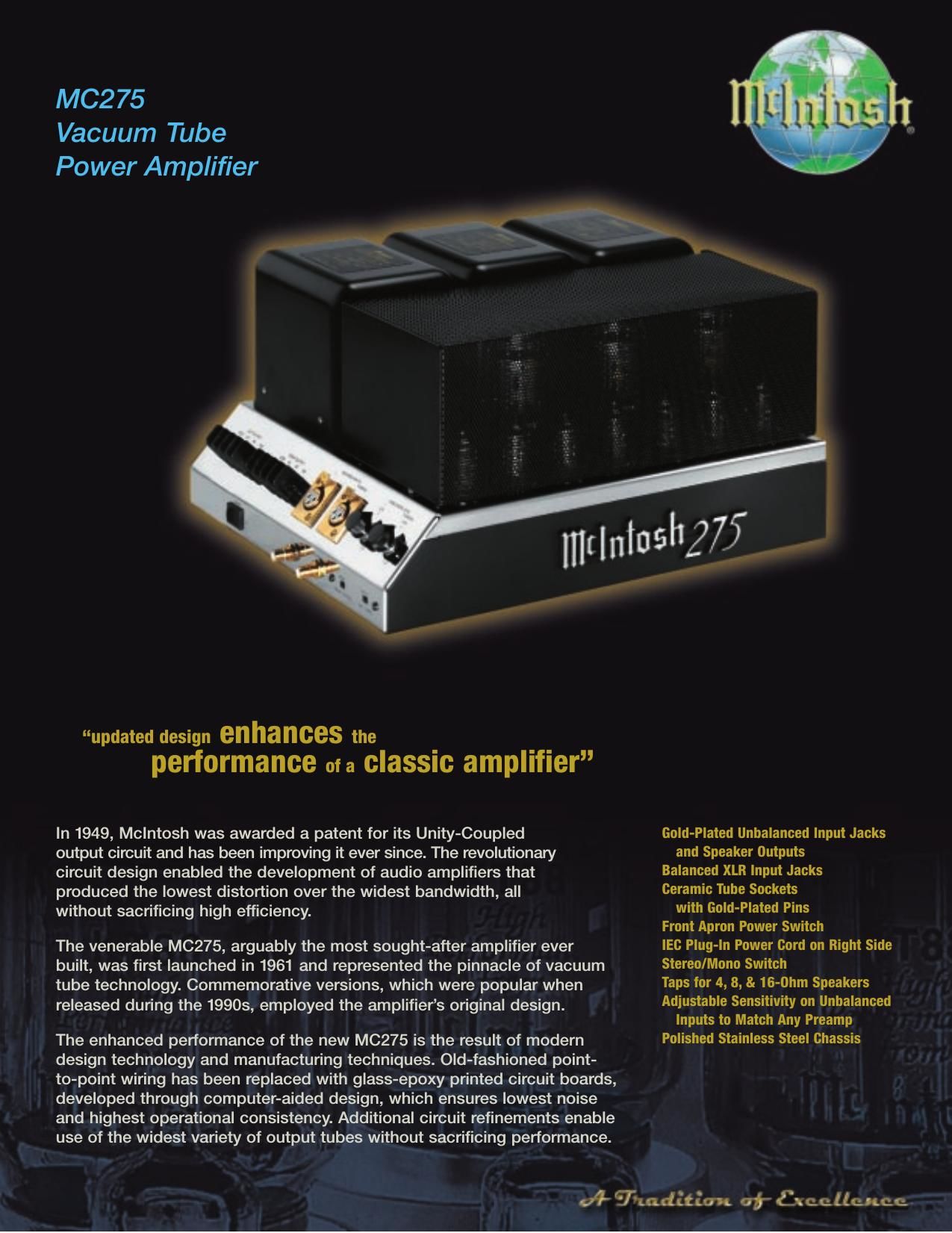

MC275
Vacuum Tube
Power Amplifier
FULL POWER DELIVERY
The MC275 Series IV delivers
75 watts per channel into
4, 8, and 16 Ohm speakers.
ULTRA LOW NOISE
AND DISTORTION
Distortion-canceling properties
of McIntoshs Unity-Coupled
circuit and unique Output
Transformer design yield
much lower distortion and
noise across the entire
20-20,000Hz music range.
WIDE BANDWIDTH
McIntoshs exclusive
Output Circuit and Transformer
designs ensure ultra-wide
frequency bandwidth.
MONOBLOCK
The two 75-watt channels
may be combined into a single
channel of 150 watts into
2, 4 or 8-Ohm loads.
INVERTED CHASSIS
Heat producing tubes
are located on top of the
chassis, under a protective
cage, while other circuits are
shielded within the polished
Stainless Steel Chassis.
POWER OUTPUT STEREOMinimum sine wave continuous
average power output per channel,
both channels operating is: 75 watts
into 4, 8 or 16 ohm load.
POWER OUTPUT MONO (PARALLEL)Minimum sine wave continuous
average power output is: 150 watts
into 2, 4 or 8-ohm load
OUTPUT LOAD IMPEDANCE4, 8, or 16 ohm (stereo)
2, 4, or 8 ohm (mono)
RATED POWER BAND20Hz to 20,000Hz
TOTAL HARMONIC DISTORTIONMaximum Total Harmonic
Distortion at any power level
from 250 milliwatts to rated
power output is 0.5%
FREQUENCY RESPONSE+0 /-0.5dB from 20Hz to 20,000Hz
+0/-3dB from 10Hz to 70,000Hz
SENSITIVITY1.2V unbalanced inputs
2.5V balanced inputs
A-WEIGHTED SIGNAL-TO-NOISE RATIO100dB
INTERMODULATION DISTORTIONMaximum Intermodulation Distortion if
instantaneous peak output per channel
does not exceed twice the rated output,
for any combination of frequencies from
20Hz to 20,000Hz, with both channels
operating is 0.5%.
WIDE BAND DAMPING FACTORGreater than 14
POWER REQUIREMENTS120V, 50/60Hz, 3.6A
OVERALL DIMENSIONS
(H x W x D including feet and knobs)
8-1/4" (21cm) x 16-1/2" (42cm)
x 12" (30.5cm)
WEIGHT67 lbs. (30.5kg) net
75 lbs. (34.1kg) boxed
