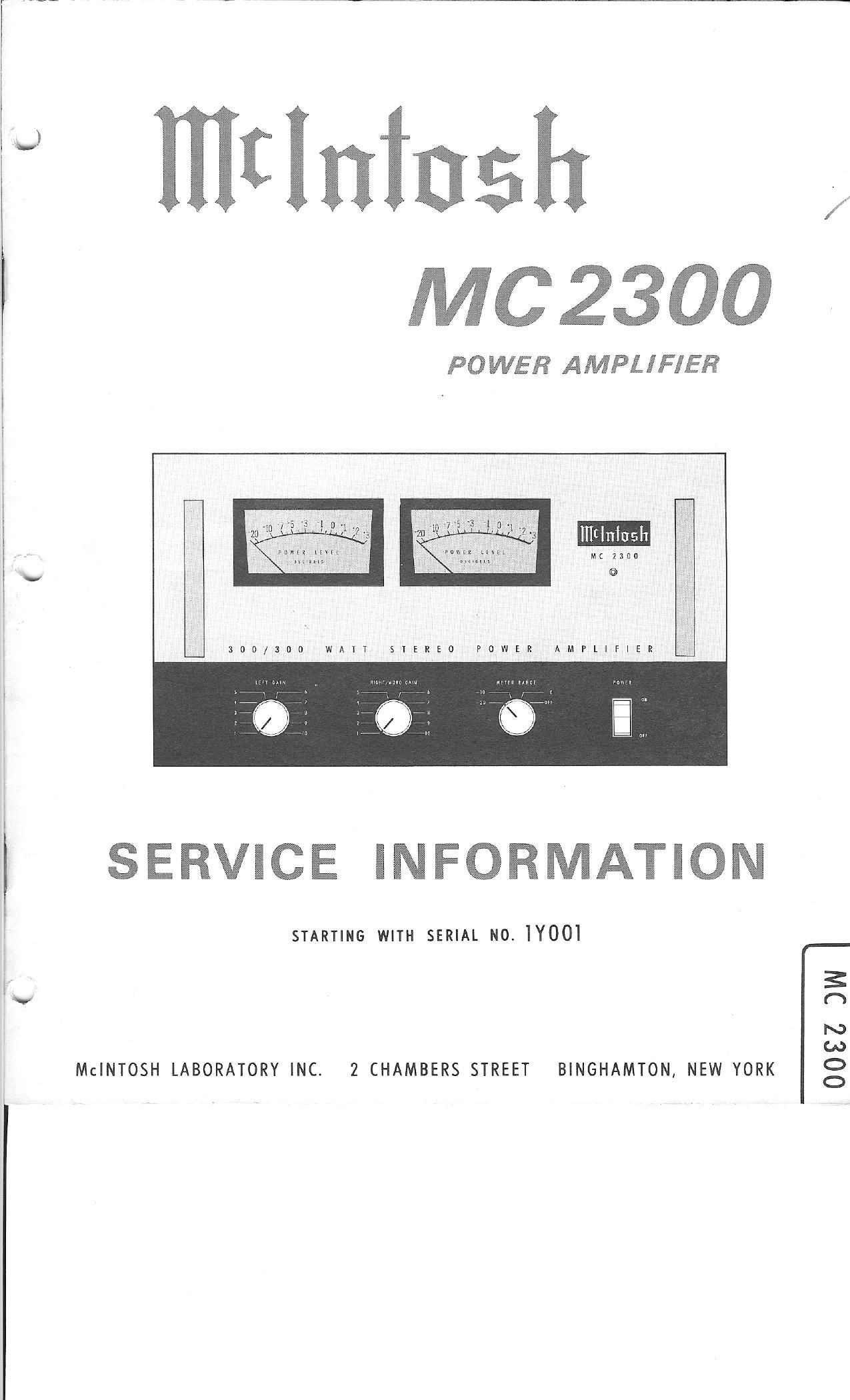

I 11113511
M02300
POWER AMPLIFIER
ITIIInTusIT
MC 2300
©
3 0 0 / 3 0 0 W A T T S T E R E 0 P 0 W E R A M P L 1 Fl E R
SERVICE INFORMATION
STARTING WITH SERIAL N0. TYOOT
OOSZ 3W
McINTOSH LABORATORY INC. 2 CHAMBERS STREET BINGHAMTON, NEW YORK
MC 2300
POWER OUTPUT:
Stereo -
Mono -
ELECTRICAL SPECIFICATIONS
300 RMS watts continuous per channel into 0.5, l, 2, A,
8 or l6 ohms both channels operating.
600 RMS watts continuous into 0.25, 0.5, l, 2, A, or 8
ohms.
HARMONIC DISTORTION:
Stereo -
Less than 0.25% at 300 watts output from ZOHZ to 20kHz
both channels operating. Typical performance is less
than 0.17 at rated power. Distortion decreases as
output power is reduced.
lNTERMODULATlON DISTORTION:
Stereo -
Mono -
Less than 0.25% iF instantaneous peak power output
is 600 watts or less per Channel with both channels
operating for any combination of frequencies 20Hz to
ZOkHZ.
Less than 0.25% if instantaneous peak power output
is I200 watts or less For any combination of frequencies
20Hz to 20kHz.
FREQUENCY RANGE:
20Hz to 20kHz +0, -0.5dB at rated power for all outputs; except
0.5 and 2 ohms, ~IdB.
lez to 35kHz +0, -l.SdB at one-half of rated power.
NOISE AND HUM:
90dB or more below rated output.
OUTPUT IMPEDANCE:
Stereo -
Mono -
0.5, I, 2. A, 8, and I6 ohms.
0.25, 0.5, I, 2, h and 8 ohms.
OUTPUT VOLTAGES:
Stereo -
Mono -
DAMPING FACTOR:
IZ, I7.S, 2h.5, 35, A9 and 70 volts.
12, l7.5, 2A.5, 35, A9 and 70 volts.
27 at 0.5 ohms output. Zl at h ohms output.
50 at I ohm output. lh at 8 ohms output.
29 at 2 ohms output. 13 at l6 ohms output.
INPUT IMPEDANCE:
200,000 ohms.
INPUT SENSITIVITY:
0.5 volts.
Level controls provided For higher input voltage.
POWER REQUIREMENTS:
l20 volts AC 50/60H2, I60 watts at zero signal output. IAOO
watts at rated output.
