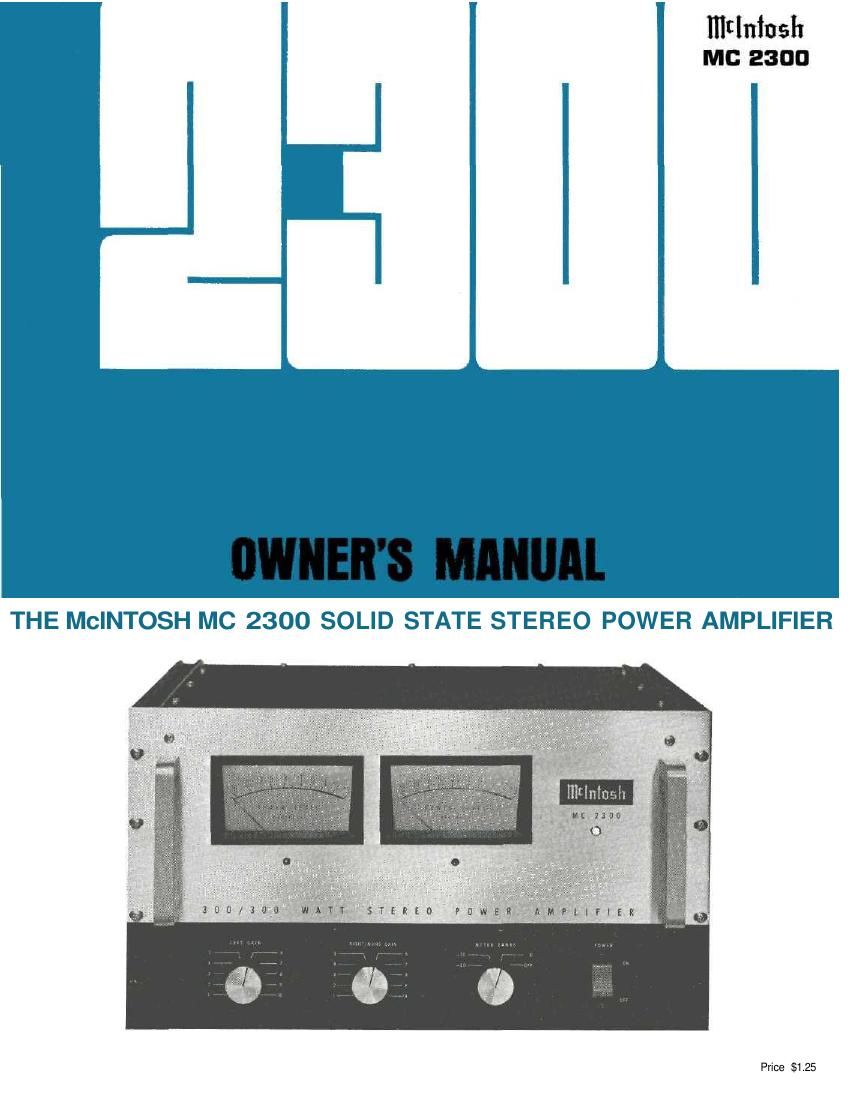

Page 1
Page 2
The Mclntosh MC 2300 is a high quality, ex-
tremely high power, solid state stereo ampli-
fier. Because of the high power available it is
necessary to emphasize some prudent and
safe operating conditions.
1. Never connect or disconnect inputs or
outputs while the amplifier is turned on.
Loudspeakers can be damaged or de-
stroyed by the high power available from
the instrument.
2. Never operate the amplifier with the power
cord plugged into an auxiliary AC power
outlet on source equipment. The amplifier
draws near 14 amperes at full power and
damage to the source equipment can
occur.
3. Do not operate the instrument plugged
into an ordinary extension cord. Heavy
duty extension cords (14 ga. or heavier)
have adequate wire size and will not over-
heat.
4. Be cautious when lifting the instrument.
It weighs 128 pounds. Make certain that
what it is placed on can support the
weight.
Page 15
LIMITER CIRCUIT
In the power amplifier circuit the amount of signal
output has a linear relationship with the input signal.
In the event of a short circuit or severe impedance
mismatch the limiter circuit will protect the output
transistors against failure. The Mclntosh patented
Sentry Monitoring circuit constantly monitors the out-
put signal and instantly reacts to prevent overload to
the output transistors. At signal levels up to rated out-
put the limiter circuit is a high impedance circuit in
all modes and has no effect upon the output signal.
If the power output exceeds the design limits the
limiter circuit becomes low impedance and reduces
the signal to the output transistors.
Both positive and negative halves of the output are
monitored independently and the circuit operation
is similar for both halves. The amount of current flow-
ing through an output transistor is monitored by sens-
ing the voltage measured across the emitter (posi-
tive) or collector (negative) resistor relative to the
output buss. This voltage is applied to the base of the
limiter transistor Q107 (positive) and/or Q109 (nega-
tive) via the voltage dividing network R121, 129 (posi-
tive) and/or R123, R131 (negative). When the current
flowing in the output attempts to exceed the design
limits then the voltage at the base of the limiter tran-
sistors causes those transistors to conduct making a
portion of the signal to the base of the driver tran-
sistors Q111 (positive) and Q113 (negative) to be
drained off.
METER CIRCUIT
Ordinary meters lack the capability of indicating
the short interval of power in a sound wave. The mass
of the meter movement is too great to respond to the
nearly instantaneous changes in music program ma-
terial. Mclntosh has developed circuits that permit
the meters of the MC 2300 to respond to the short
interval power in a sound wave to an accuracy of
98%.
Monitoring of the output power is done at the pri-
mary or input of the autoformer. Sampling the output
power in this portion of the circuit gives true power
readings regardless of output impedance selected.
To be able to read power peaks that are sustained
for such extremely short durations, Mclntosh engi-
neers developed circuits that accelerated the up-
swing of the meter and caused the needle to be held
at the peak reading long enough for the human eye
to perceive the indication of the needle. The Mc-
lntosh meter circuit is a dynamic peak locking meter
circuit that does both things. (Patented)
Diode D203 and resistor R217 tied to the negative
supply place a bias on the emitter of transitor Q201
to hold the transistor just at the threshold of conduc-
tion. Diode D201 passes only the positive portions of
the input signal to the base of Q201 charging the ca-
pacitor C201. Since the transistor Q201 is on the
edge of conduction the slightest positive swing of in-
put signal causes conduction to begin. The largest
capacitor C203 in the emitter circuit will appear as a
direct short at first to the negative supply thereby ac-
celerating the needle of the meter upscale. At the
peak of the signal the needle will stop its upswing.
When the meter needle reaches peak and the input
signal starts a downswing, the capacitor C201 starts
to lose its charge by the RC time constant of C201,
R209. For that amount of time a positive charge is
supplied to the base of Q201 causing it to conduct for
a longer length of time. The RC combination R215,
14
