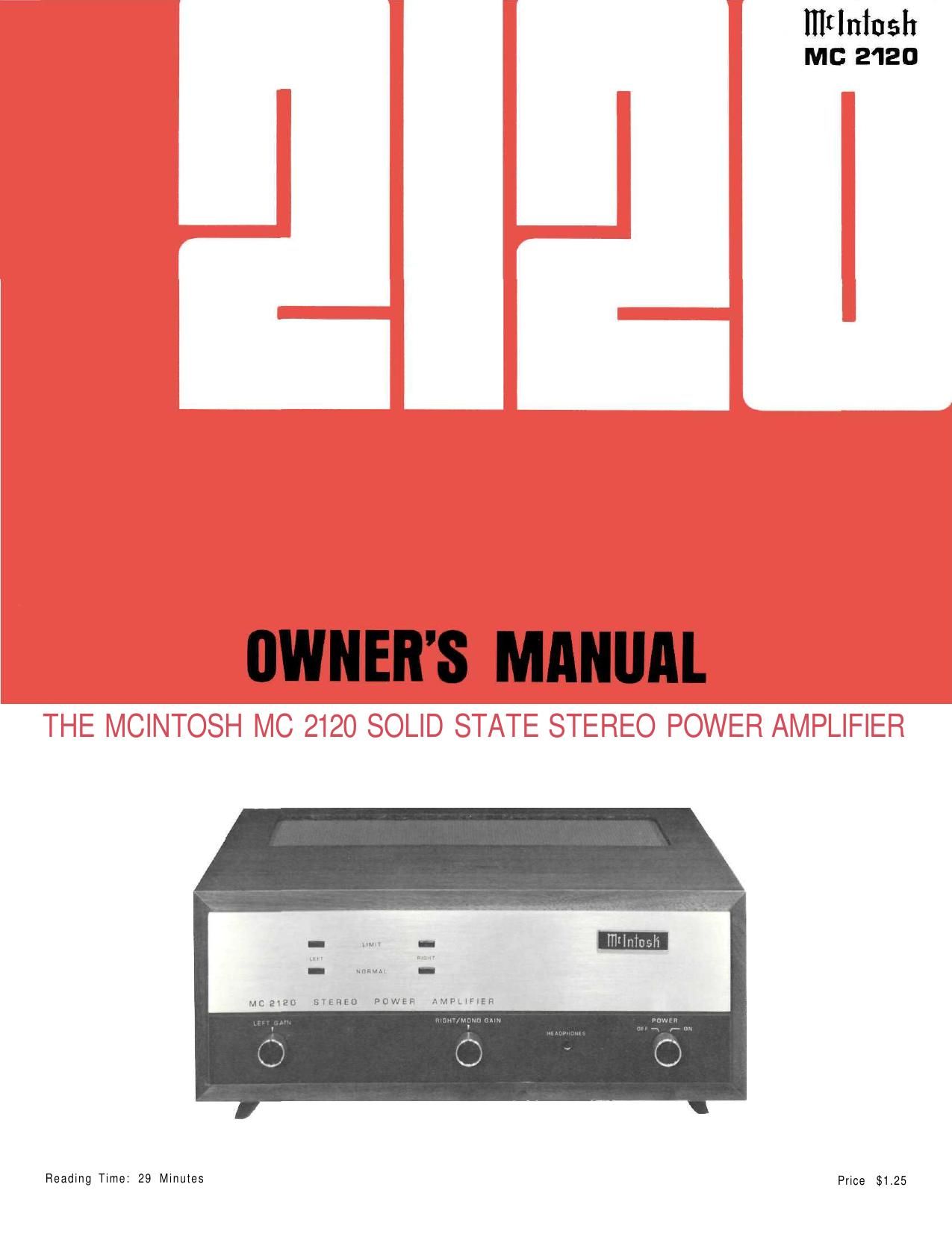

Page 1
Page 2
Your MC 2120 Stereo Power Amplifier
will give you many years of pleasant
and satisfactory performance. If you
have any questions, please contact:
CUSTOMER SERVICE
Mclntosh Laboratory Inc.
2 Chambers Street
Binghamton, New York 13903
Phone: 607-723-3512
WARNING: TO PREVENT FIRE OR SHOCK
HAZARD, DO NOT EXPOSE THIS UNIT TO
RAIN OR MOISTURE.
Take Advantage of 3 years
of FREE Service ...
Fill in the Application NOW.
Contents
SERVICE . . . . 1
INSTALLATION . . . . 2
HOW TO CONNECT . . . . 4
FRONT PANEL INFORMATION . . . . 8
REAR PANEL INFORMATION . . . . 10
PERFORMANCE LIMITS AND RATINGS . . . . 11
PERFORMANCE CHARTS . . . . 12
TECHNICAL DESCRIPTION . . . . 14
BLOCK DIAGRAM . . . . 16
THREE YEAR SERVICE CONTRACT
An application for a FREE THREE YEAR SERVICE CONTRACT is included with this manual.
The terms of the contract are:
1. Mclntosh will provide all parts, materials and
labor needed to return the measured perform-
ance of the instrument to the original per-
formance limits free of any charge. The
SERVICE CONTRACT does not cover any ship-
ping costs to and from the authorized service
agency or the factory.
2. Any Mclntosh authorized service agency will
repair all Mclntosh instruments at normal
service rates. To receive the free service under
the terms of the SERVICE CONTRACT, the
SERVICE CONTRACT CERTIFICATE must ac-
company the instrument when taken to the
service agency.
3. Always have service done by a Mclntosh
authorized service agency. If the instrument
is modified or damaged, as a result of un-
authorized repair the SERVICE CONTRACT
will be cancelled. Damage by improper use
or mishandling is not covered by the SERV-
ICE CONTRACT.
4. The SERVICE CONTRACT is issued to you as
the original purchaser. To protect you from
misrepresentation this contract cannot be
transferred to a second owner.
5. For your protection Mclntosh selects only
dealers who have technical competence to
guide purchasers fairly, and provide service
when necessary. To receive the SERVICE
CONTRACT your purchase must be made
from a Mclntosh franchised dealer.
6. Your completely filled in application for a
SERVICE CONTRACT must be postmarked
within 30 days of the date of purchase of
the instrument.
7. To receive the SERVICE CONTRACT all in-
formation on the application must be filled
in. The SERVICE CONTRACT will be issued
when the completely filled in application is
received at Mclntosh Laboratory Incorporated
in Binghamton, New York.
Copyright ® 1976 by Mclntosh Laboratory Inc.
1
Page 14
The input waveform and the output waveform are com-
pared in an integrated circuit differential amplifier. Any
differences, due to distortion of the output waveform, are
converted to a control voltage. This control voltage is applied
differentially to a high gam operational amplifier where it
is amplified about 100 times. The amplified control volt-
age is detected by a full wave bridge rectifier then enters a
Schmidt trigger which is programmed to sequence the
front panel indicators from NORMAL (green) to LIMIT (red]
at a preset distortion level. Also built into the trigger circuit
is a timing capacitor which holds the LIMIT indicator on
long enough to be visible even when the duration of the
overload is much shorter. The LIMIT indicator will be illumi-
nated for an overload condition as short as one cycle of a
signal at 20,000 Hz.
The same control voltage used to activate the LIMIT
indicator also actuates the POWER GUARD system. If the
control voltage is greater than is needed to illuminate the
LIMIT indication then the POWER GUARD begins operating.
The control voltage is used to operate a light emitting
diode/light dependent resistor (LDR) network. The LDR is
part of an attenuator between the volume control and the
input amplifier. The input to the power amplifier can be
attenuated to as little as one tenth, if necessary, in order
to maintain low distortion in the event of excessive input
signal.
The POWER GUARD circuit is activated when the rear
panel switch is in the NORMAL position. POWER GUARD
protection is disabled m the OUT position. The LIMIT indi-
cator operates regardless of the position of the POWER
GUARD switch.
15
