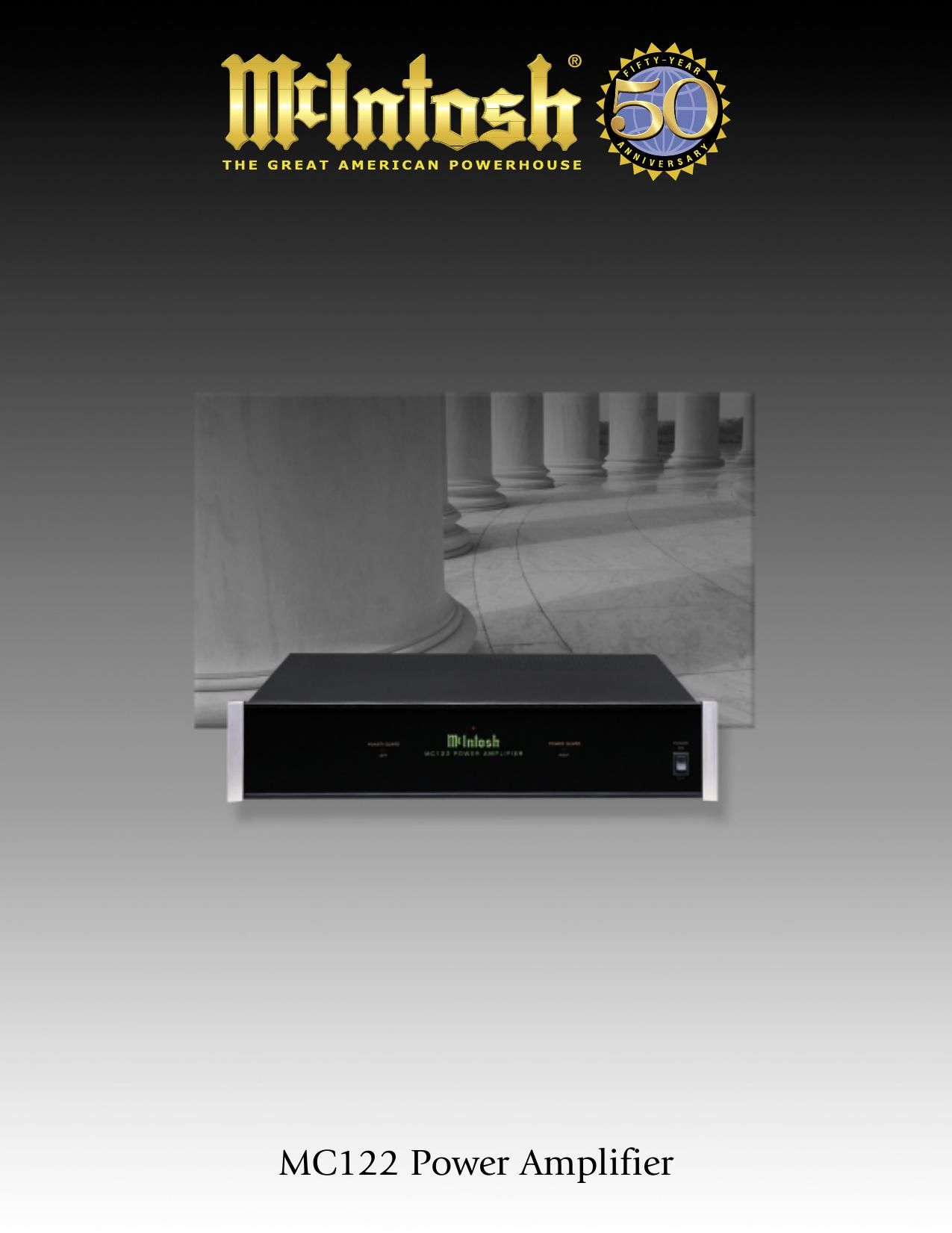

MC122
Power Amplifier
E
njoy traditional McIntosh excellence in the compact MC122 power amplifier.
Like its larger siblings, the MC122 features Power Assurance, which maxi-
mizes clean power output and ensures many years of reliable operation. With
an invitingly modest price, the MC122 makes it easier than ever to join the
extended family of satisfied McIntosh owners.
See SYSTEMS ENGINEERING
in main brochure for more on
McIntosh system architectures.
Featured Technologies
EXCLUSIVE MCINTOSH POWER ASSURANCE SYSTEM. Power Assurance is a collection of
technologies that enhance performance and reliability and protect the amp and the loudspeakers.
Power Guard
®clipping protection. Power Guard ensures that the amplifier will always
deliver full power without causing clipping distortion. If an amplifier channel is overdriven,
Power Guard automatically reduces the input volume just enough to keep distortion below 2%
and prevent any clipping distortion. Thanks to an optical resistor, Power Guard acts literally at
the speed of light, producing absolutely no audible side effects. An amplifier with Power
Guard will actually deliver clipping-free output well above its rated power.
Sentry Monitor
®current protection. Sentry Monitor continually senses the voltage and current
of the output stage and confines it to a safe limit. Sentry Monitor does not limit power output.
Thermal Cutout. If the cooling air is blocked and the power transistors become too hot,
thermal cutouts protect against overheating until the amp cools.
Turn-On Delay.This circuit delays operation for about two seconds after turn-on in order to
avoid any pops or thumps generated as other equipment turns on.
Soft Start inrush protection. Thermistors in the power transformer act as a cushion against
inrush current, eliminating component stress during turn-on. Soft Start is one of many design
details that contribute to the remarkable longevity of McIntosh equipment.
REMOTE POWER CONTROL. This allows a McIntosh Control Center to turn the MC122
and other system components on/off.
Page 2
About the MC122 Companion Products
The McIntosh products shown at right are logical companions for the MC122. Separate literature is
available. Check with your McIntosh dealer for any late additions. McIntosh speaker systems are
also covered in detail in separate literature.
C15 Control Center. The C15s extensive capabilities make it the ideal centerpiece for what may
begin as a pure stereo system and evolve into a dual-zone audio/video system with the addition
of the MVS3 A/V Selector.
MX132 A/V Control Center + Processor. The MC122 can be used as a high-quality Zone B amp
for the MX132.
HT1 Loudspeaker. The 4-way HT1 has two 8-inch bass/mid drivers plus three high-frequency
drivers mounted in a patented rotatable baffle that allows the HT1 to be oriented either vertically
or horizontally.
SL4 Loudspeaker. The 3-way floorstanding SL4 features two 6.5-inch bass/mid drivers and an
angled front that allows placement parallel to and nearer the wall.
SL1 Powered Subwoofer. Designed to complement the SL4 or HT1, the 250-watt SL1 uses a 12-inch
LD/HP
®driver that delivers ultra-low-distortion bass down to 20Hz.
MC122 Companions
C15 PREAMPLIFIER
MX132 A/V CONTROL CENTER
+ PROCESSOR
SL4 LOUDSPEAKER HT1 LOUDSPEAKER
SL1 POWERED SUBWOOFER
M
ost consumer electronics products are necessarily viewed
as short-term investments because either they dont last
or they quickly become obsolete in some way. Coincidentally,
manufacturers supply a steady stream of new-and-improved
products that you can buy. Again.
Behind every McIntosh is a fifty-year heritage of excellence,
proudly carried forward by every employee. No productionlines, no price-point engineering, no planned obsolescence.
McIntosh equipment is made to sound better and last longer.
When McIntosh products are presented to customers, the
criteria they have been conditioned to overlook -“ reliability,
longevity, craftsmanship, ease-of-use, adaptability, pride of
ownership -“ suddenly leap to the top of their list.
The choice becomes clear: There is nothing like a McIntosh.
The patented McIntosh Power Guard in the MC122 provides real-time
clipping protection without affecting power output or sound quality.
a) test signal
b) overdriven amp without
Power Guard produces SEVERE clipping
c) overdriven amp with
Power Guard produces NO clipping
abc
As seen on the inside surface of this demonstration
piece, the screening processfor a McIntosh glass
panel entails as many as 12 individual layers.
The glass panels are cut
using a computer-controlled
high-pressure water jet.
