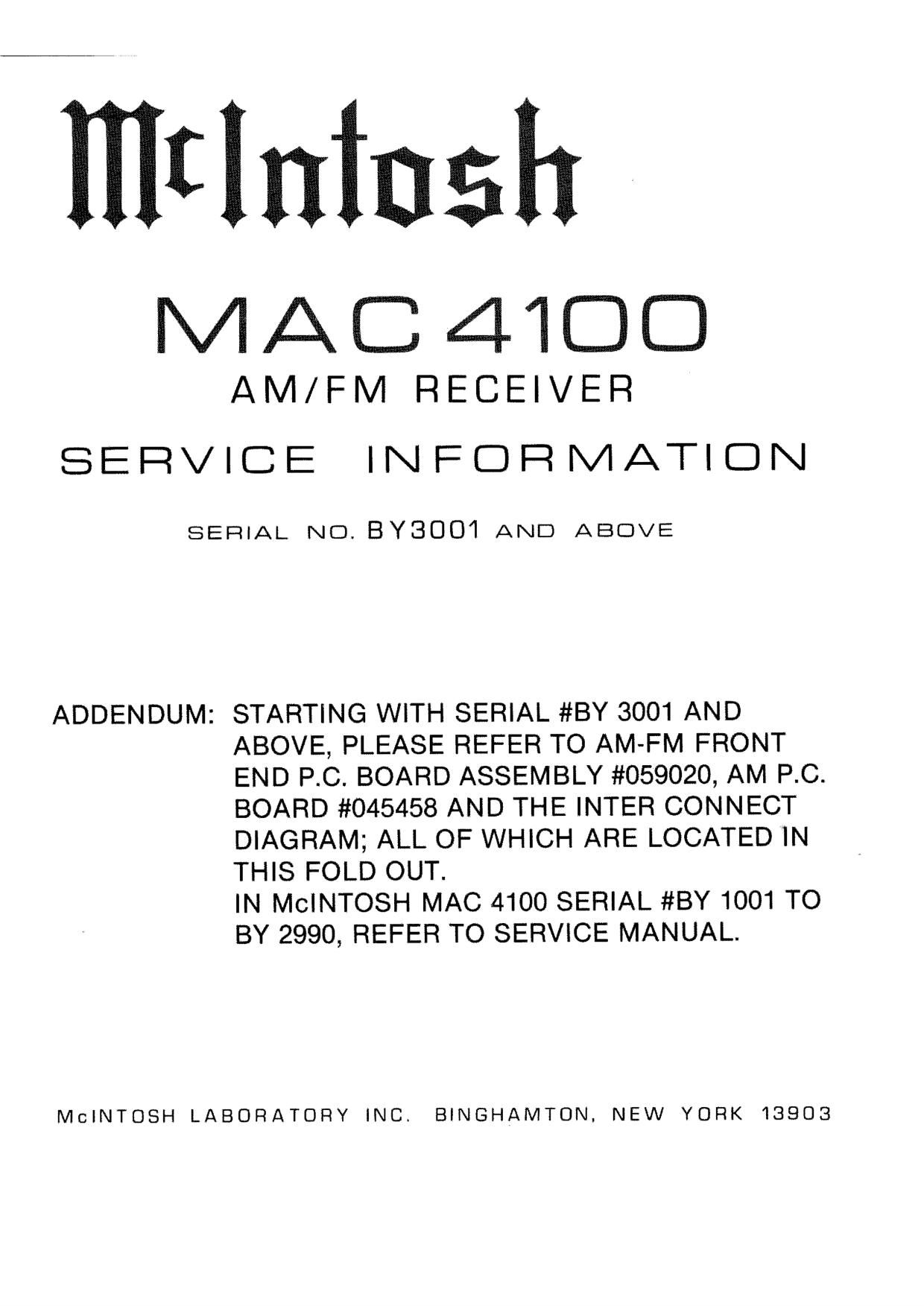

Page 1

IIII 1110511

MAC 4100

AM/FM RECEIVER
SERVICE INFORMATION

SERIAL NC). BY3001 AND ABOVE

ADDENDUM: STARTING WITH SERIAL #BY 3001 AND
ABOVE, PLEASE REFER TO AM-FM FRONT
END P.C. BOARD ASSEMBLY #059020, AM P.C.
BOARD #045458 AND THE INTER CONNECT
DIAGRAM; ALL OF WHICH ARE LOCATED IN
THIS FOLD OUT.
IN McINTOSH MAC 4100 SERIAL #BY 1001 TO
BY 2990, REFER TO SERVICE MANUAL.

McINTOSH LABORATORY INC. BINGHAMTON, NEW YORK 13903
