Companion Products
The McIntosh MR88 AM/FM/HD Tuner, MCD550 SACD/CD Player, MT10 Turntable, XR100 Loudspeakers, MEN220 Room Correction System
and MPC1500 Power Controller are logical companions for the MA8000 Integrated Amplifier. Your Authorized Dealer can provide additional information on other McIntosh product combinations.
To learn more, please call us at 1.800.538.6576.
3 5 1016 01

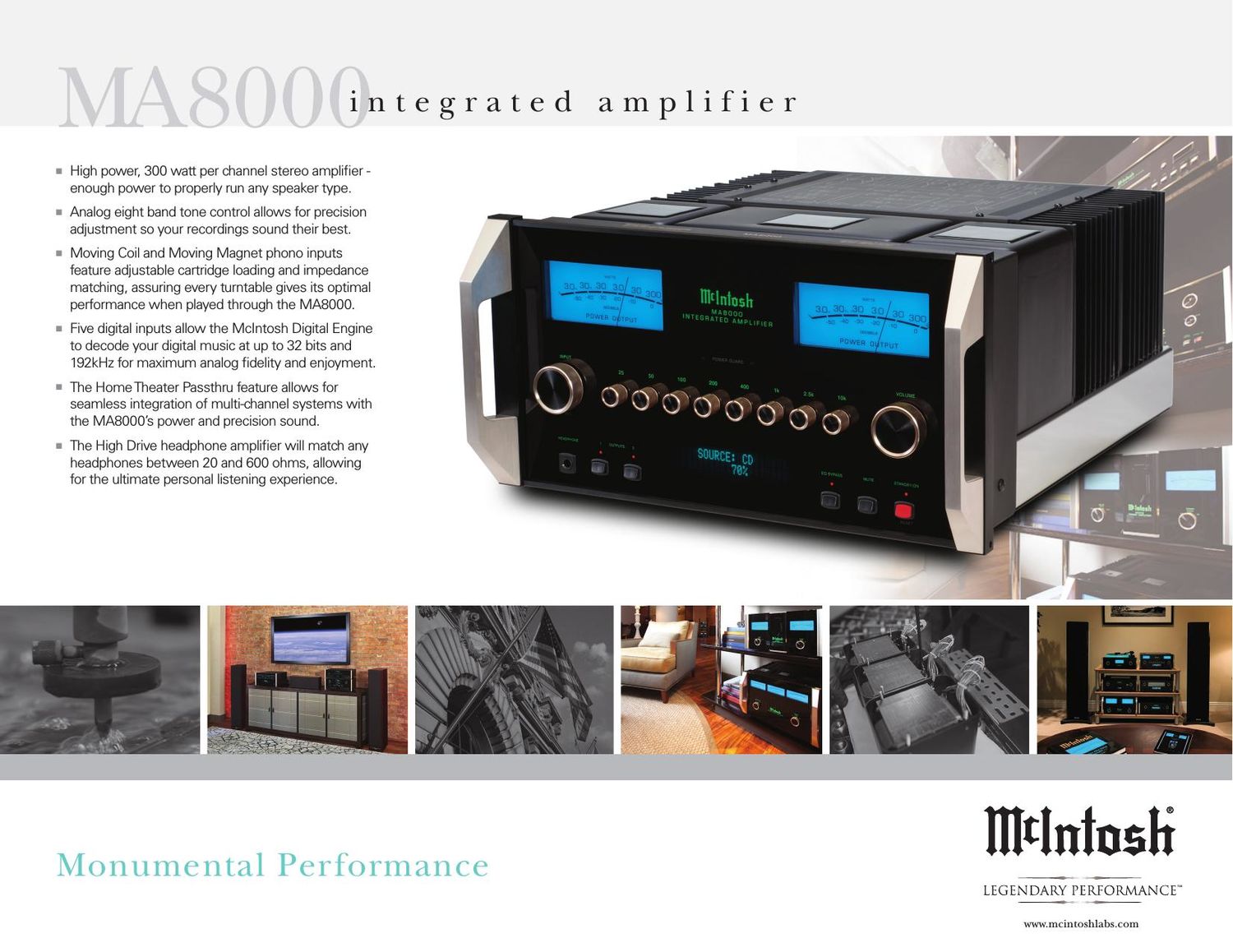

MA8000 integrated amplifier
Amplifier Power Output:300 watts per channel with both channels operating into 2, 4 or 8 Ohms, with Power Meters
Total Harmonic Distortion:0.005% maximum from 20Hz to 20kHz
Preamplifier Inputs:Six high level unbalancedTwo high level balancedTwo Phono: one Moving Coil and one Moving Magnet (both adjustable loading)Five digital inputs
Digital Section:Five digital inputs: one dedicated USB, and four assignable: two coax and two optical PCMMcIntosh Digital Engine is 32 bit 192kHz, USB 2.0 asynchronous
Tone Controls:Discrete/manual/analog eight band EQ
High Drive Headphone Amplifier:All headphones, from 20 to 600 Ohms
Home Theater Pass Through:Allows interfacing with a Home Theater system
Overall Dimensions (W x H x D):17-1/2 (44.5cm) x 9-7/16 (24 cm) x 22 (55.88cm) including knobs, connectors and cables
Weight:100 lbs (45.4kg) net,133 lbs (60.3kg) in shipping carton
For the Consumers Protection: In order to ensure the highest level of customer satisfaction, new McIntosh products may only be purchased from an Authorized McIntosh Dealer; and, with certain limited exceptions may only be purchased over-the-counter or delivered and
installed by the Authorized McIntosh Dealer. McIntosh does not warrant, in any way, products that are purchased from anyone who is not an Authorized McIntosh Dealer, or that have had their serial numbers altered or defaced.
