Page 1
www.mcintoshlabs.com
Amplifier Power Output:
200 watts per channel with both
channels operating into 2, 4 or 8 Ohms,
with Power Meters
Total Harmonic Distortion:
0.005% maximum from 20Hz to 20kHz
Preamplifier Inputs:
Six high level unbalanced
One high level balanced
Two Phono: one Moving Coil adjustable
loading, one Moving Magnet
Three digital inputs
Digital Section:
Three digital inputs: one dedicated USB,
and two assignable: one coax and one
optical PCM
McIntosh Digital Engine is 32 bit 192kHz,
USB 2.0 asynchronous
Tone Controls:
Discrete/manual/analog five band EQ
Companion Products
The McIntosh MCD301 SACD/CD Player, MR88 AM/FM/XM/HD Tuner, MT5 Precision Turntable,
MEN220 Room Correction System and XR100 Loudspeakers are logical companions for the
MA7900 Integrated Amplifier. Your authorized dealer can provide additional information.
To learn more, please call us at 1.800.538.6576. High Drive Headphone Amplifier:
All headphones, from 20 to 600 Ohms
Home Theater Pass Through:
Allows interfacing with a
Home Theater system
Overall Dimensions (W x H x D):
17-1/2 (44.5cm) x 7-5/8 (19.37cm)
x 22 (55.88cm) including knobs,
connectors and cables
Weight:
75 lbs (34.1kg) net,
93 lbs (42.3kg) in shipping carton
35101200
For the Consumers Protection:
In order to ensure the highest level of customer satisfaction, new McIntosh products may only be purchased over-the-
counter or delivered and installed by an Authorized McIntosh Dealer. McIntosh products that are purchased over the
Internet, by phone or mail order are presumed to be used and do not qualify for any McIntosh Warranty. McIntosh does
not warrant, in any way, products that are purchased from anyone who is not an Authorized Dealer or products that have
had their serial number altered or defaced.

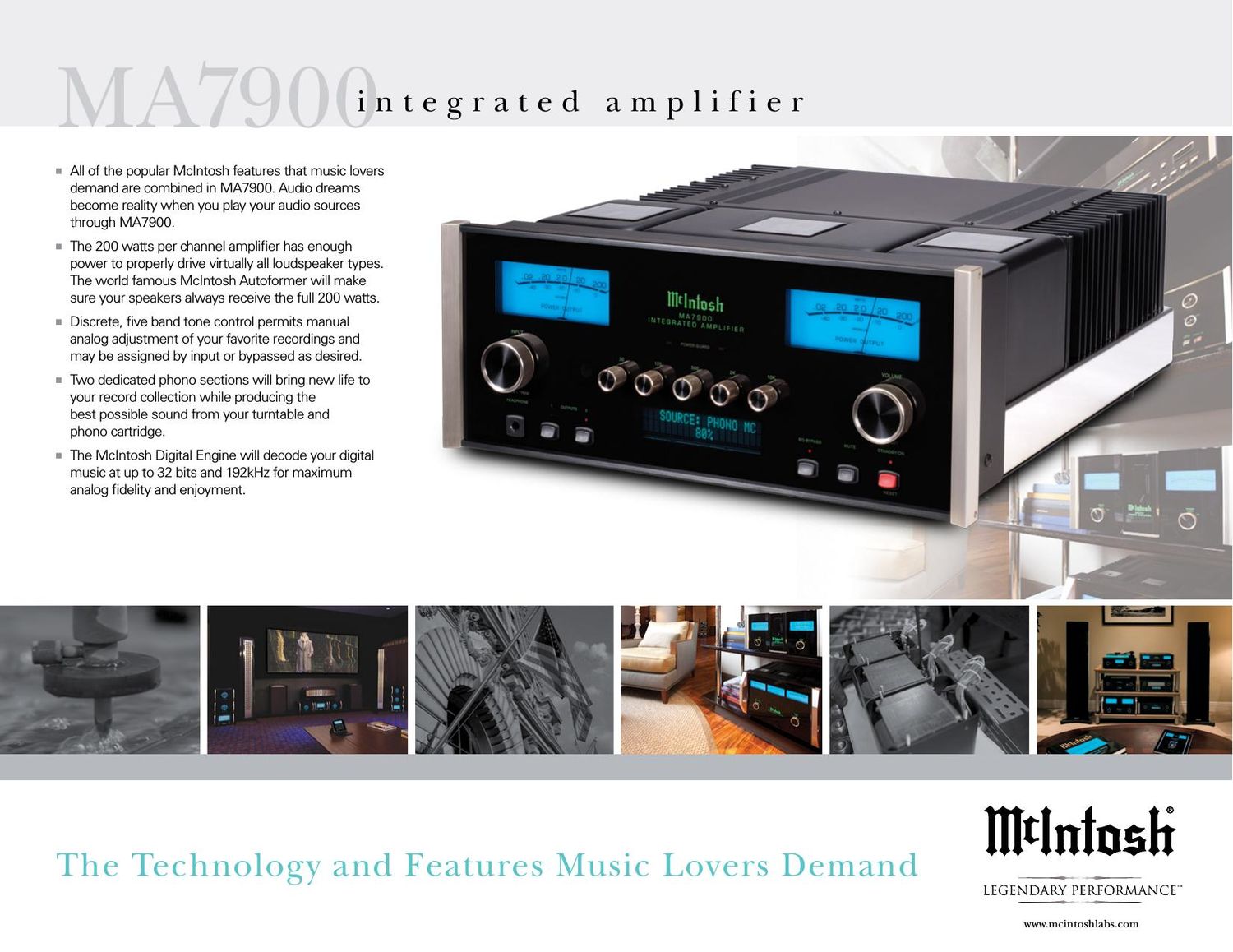

M A79 0 0 integrated amplifier
