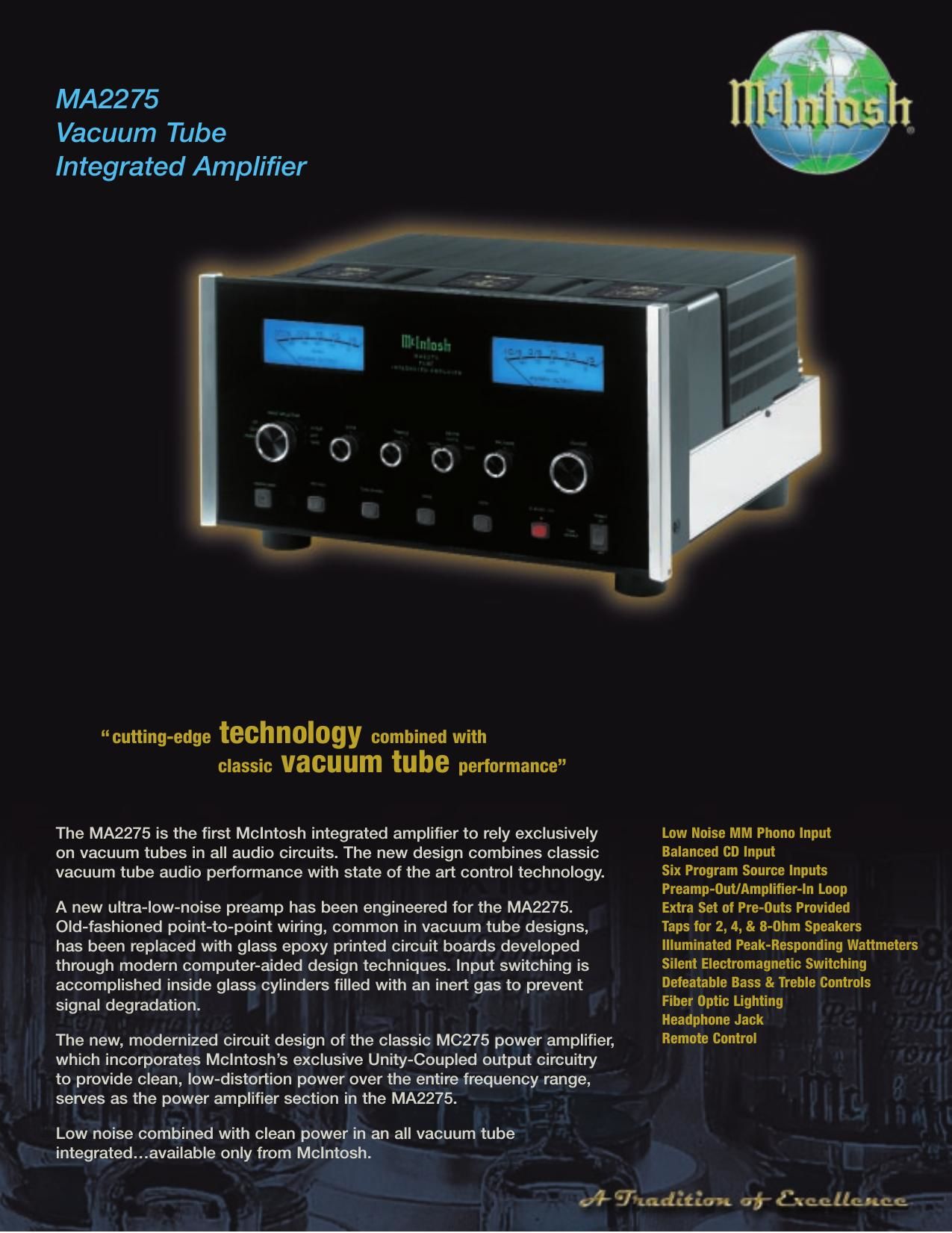

MA2275
Vacuum Tube
Integrated
Amplifier
FLEXIBILITY
6 sets of unbalanced inputs,
main preamp-out/amp-in
connection and one additional
set of switched preamp
outputs are included.
PHONO INPUT
The ultra-quiet McIntosh
phono stage for moving magnet
cartridges is built-in. If desired,
this input may be changed to
aux high-level inputs.
FULL POWER DELIVERY
The MA2275 delivers
75 watts per channel into
2, 4, and 8-ohm speakers.
ULTRA LOW NOISE
AND DISTORTION
Distortion-canceling properties
of McIntoshs Unity-Coupled
Output circuit and unique
Output Transformer design
yield much lower distortion
and noise across the entire
20-20,000Hz music range.
WIDE BANDWIDTH
McIntoshs exclusive
Output Circuit and Transformer
designs ensure ultra-wide
frequency bandwidth
INVERTED CHASSIS
Heat producing tubes
are placed on top under
a protective cage, while
other circuits are shielded
by a beautiful polished
stainless steel chassis.
POWER OUTPUTMinimum sine wave continuous
average power output per channel,
both channels operating is: 75 watts
into 2, 4, or 8-ohm loads.
RATED POWER BAND20Hz to 20kHz
TOTAL HARMONIC DISTORTION0.5% max. at any level from 250
milliwatts to rated power output per
channel from 20Hz to 20kHz.
FREQUENCY RESPONSE+0, -0.5dB from 20Hz to 20kHz
+0, -3dB from 10Hz to 50kHz
SENSITIVITYHigh Level: 250mV for 2.5V
rated output (50mV IHF)
Phono: 2.5mV for 2.5V
rated output (0.5mV IHF)
Power Amplifier Input: 2.5V
for rated output
A-WEIGHTED SIGNAL-TO-NOISE RATIOHigh Level: 93dB below rated output
Phono Input: 80dB below 10mV input
Power Amp: 100dB below
rated output
INTERMODULATION DISTORTIONSMPTE 0.5% max if
instantaneous peak power
does not exceed 150W
per channel.
INPUT IMPEDANCEHigh Level: 22k ohms
Phono: 47k ohms, 65pF
MAXIMUM INPUT SIGNALHigh Level: 8V
Phono: 90mV
MAXIMUM PREAMP
VOLTAGE OUTPUT
High Level: 8V
Phono: 8V
Main Out: 8V at preamp output
VOLTAGE GAINHigh level to tape: 0dB
High level to main: 15dB
POWER REQUIREMENTS120V, 50/60Hz, 3.6 Amps
PREAMP TUBE COMPLIMENT2 -“ 12AX7A Phono circuitry
2 -“ 12AX7A High level circuitry
POWER AMP TUBE COMPLIMENT2 -“ 12AT7
4 -“ KT88/6550
OVERALL DIMENSIONS (H x W x D including knobs and feet)10-1/8" (25.7cm) X 17-3/4" (45cm) x 18-3/4" (47.6cm)
WEIGHT77 lbs. (35kg) net, 110 lbs. (50kg) boxed
2 x 75 watts (8/4/2 ohms)
All signal amplification by vacuum tubes
Wide power bandwidth with ultra-low distortion
Illuminated peak-responding wattmeters
Switchable meter illumination
Tape loop in/out provided
Gold plated input & output connectors
Noise and transient-free turn-on/turn-off
High-performance headphone output
Dual preamp outputs
Switched data output ports
External remote sensor jack
