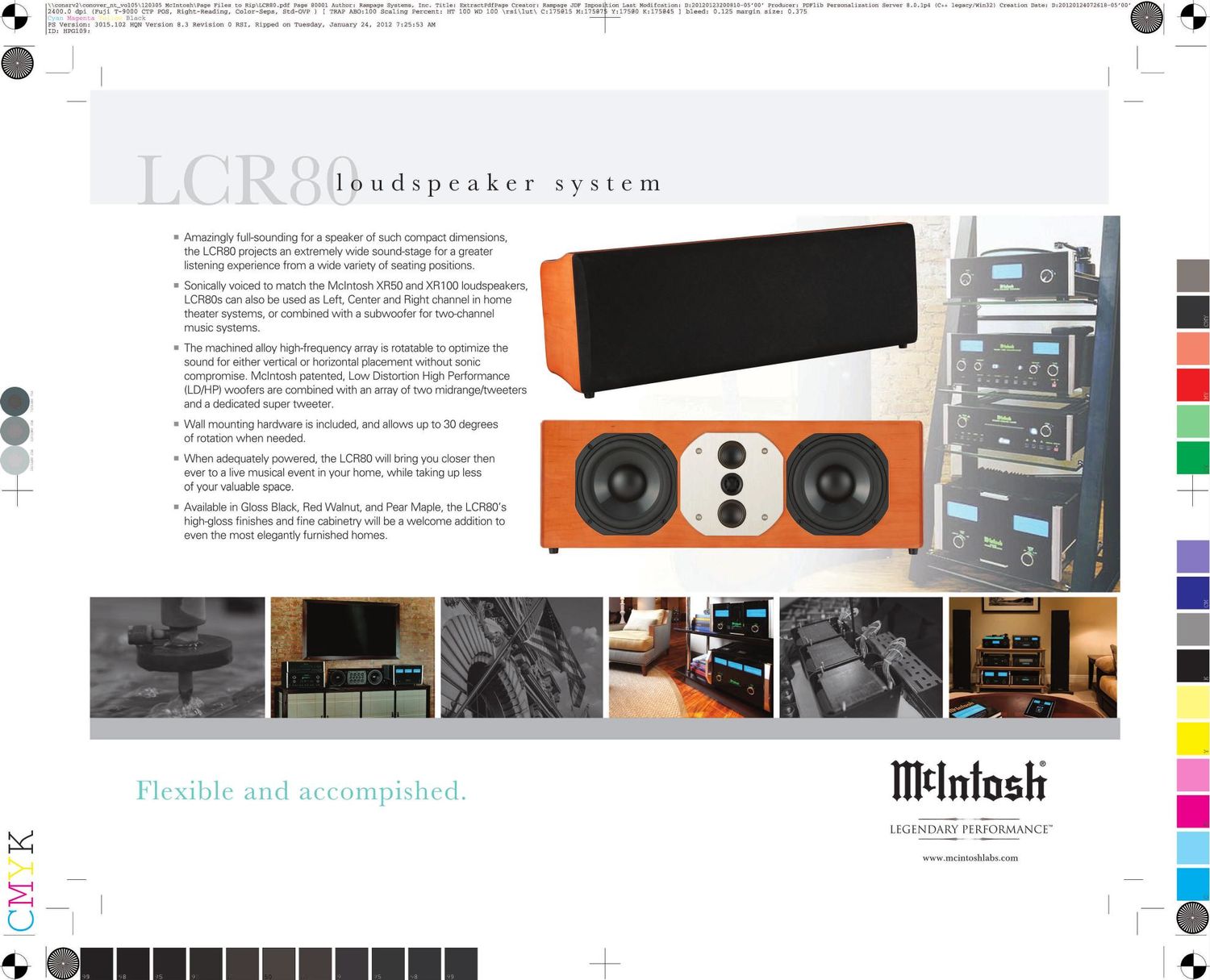

loudspeaker system

I Amazingly full-sounding for a speaker of such compact dimensions,
the LCR80 projects an extremely wide sound-stage for a greater
listening experience from a wide variety of seating positions.

I Sonically voiced to match the Mclntosh XRSO and XRl 00 loudspeakers,
LCR80s can also be used as Left, Center and Right channel in home
theater systems, or combined with a subwoofer for twoachannel
music systems.

The machined alloy high-frequency array is rotatable to optimize the
sound for either vertical or horizontal placement without sonic
compromise. Mclntosh patented, Low Distortion High Performance
iLD/HPl woofers are combined with an array of two midrange/tweeters
and a dedicated super tweeter.

I Wall mounting hardware is included, and allows up to 30 degrees
of rotation when needed.

I When adequately powered, the LCR80 will bring you closer then
ever to a live musical event in your home, while taking up less

+IIIIII

of your valuable space.

I Available in Gloss Black, Red Walnut, and Pear Maple, the LCRSO's
high-gloss finishes and fine cabinetry will be a welcome addition to
even the most elegantly furnished homes.

Flexible and accompishecl. mtIIItUEH

LEGENDARY PERFORMANCE"

www.mcintoshlabs.cnm

l
III-IIIIIII +

Page 2

\\cansrvz\Conover_n[_voln5\DEBS McInIusrAPage mes m mucus: Page am; Author:
24mm dpi lFuji T-BDUD cw pos, nght-Readang, ColorAseps,

* a V-'a:rr"". n 1-.

es Verslon: 3015.102 HON Versmn 8.3 Revlszion 0 R51, Ripped on Tuesday. Januazy 24, 2012 7:25:30 AM

In: Heoms.

350i 5200

ampage Systems, Inc. 11:12: brtracthfPage Creator: Rampage JUF lrrpos Ian Last Modlfcatlonz namzoiumzsnrosronv Proancer; puma Personallzatlon Server a.u.1p4 lcu legacy/mun] Creatlon Date:
Scaove l [ TRAP manna Scaling Percent: m- 100 m 10H \rsx\]ut\ Czl75615 217537

=zmummzmros'no
175m: «975245 l bleed: (1.125 mergm sue: p.375

loudspeaker system

General Specifications

System Type
Threeevvay sealed, flexible placement

Nominal Impedance
8 Ohms

Power Handling
300 Watts

Woofers.
Two 6. LD/HP, Poly Cone,
Cast Frame

Midrange/Tweeters
Two 2, lnverted Titanium Domes

To experience the legendary performance of McIntosh, please call on us at 18005386576,

III-IIIIIII + l

Super Tweeter
One %" Titanium Dome

Anechoic Response.
80 HZ to 45 l

One Wart, One Meter:
81 dB

Crossover Frequencies
500 Hz and 8 l

Dimensions:
8" H, 24 W, 6 D

Finishes:
Weight:

Available in three exclusive McIntosh
finishes: -
24lbs. (l0.9Kg) net, -

30lbs. in shipping carton Gloss Black Red Walnut Pear Maple

For the Consumers Protection

In order to ensure the highest level of customer satisfactlon, new" McIntosh products may only
be purchased over-the-counter or delivered and installed by an Authorized lvlclntosh Dealer.
McIntosh products that are purchased over the lnternet, by phone or mall order are presumed to
be used" and do not qualify for any Mclntosh Warranty. McIntosh does not warrant, In any way,
products that are purchased from anyone who is not an Authorized Dealer or products that have
had their serial number altered or defaced.
