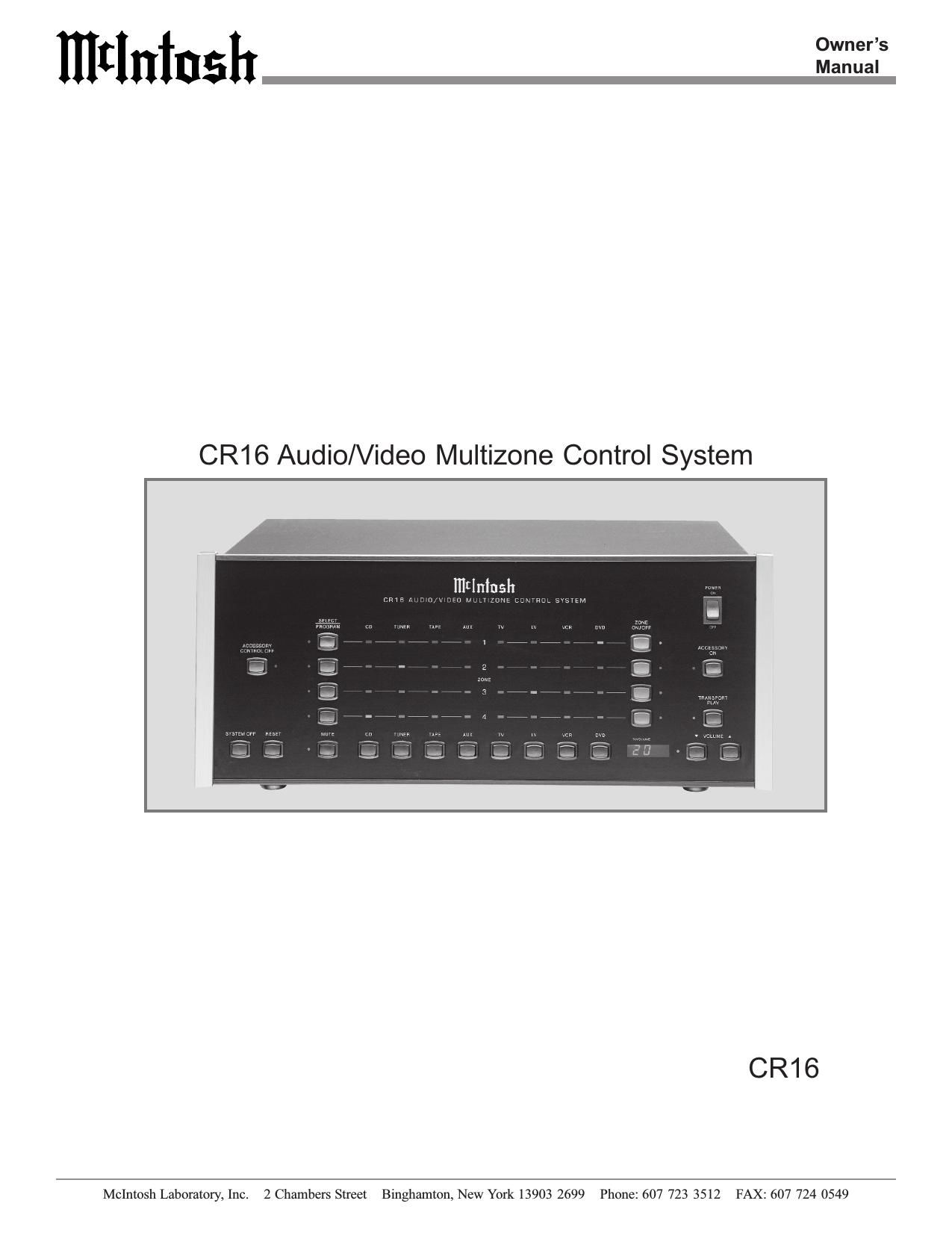

McIntosh CR 16 Owners Manual

Page 2

IIItInlnsh

The lightning flash with arrowhead,
within an equilateral triangle, is intended
to alert the user to the presence of
uninsulated dangerous voltage within
the products enclosure that may be of
sufficient magnitude to constitute a risk
of electric shock to persons

WARNING - TO REDUCE RISK OF
FIRE OR ELECTRICAL SHOCK, DO
NOT EXPOSE THIS EQUIPMENT TO

RAIN OR MOISTURE.

AVIS RISQUE DECHOCELECTRIQUE-NEPAS OUVRIR.

To prevent the risk of electric shock, do not remove cover or

The exclamation point within an equi-
lateral triangle is intended to alert the
user to the presence of important
operating and maintenance (servic-
ing) instructions in the literature ac-
companying the appliance

NO USER-SERVICEABLE PARTS
INSIDE. REFER SERVICING TO
QUALIFIED PERSONNEL.

back. No user serviceable parts inside.

IMPORTANT SAFETY
INSTRUCTIONS!

PLEASE READ THEM BEFORE
OPERATING THIS EQUIPMENT.

General:

I.
. Keep these instructions.

. Heed all warnings.

. Follow all instructions.

. Warning: To reduce risk of fire or electrical shock,

UI-IBUJN

Read these instructions.

do not expose this equipment to rain or moisture.
This unit is capable of producing high sound pres-
sure levels. Continued exposure to high sound pres-
sure levels can cause permanent hearing impair-
ment or loss. User caution is advised and ear protec-
tion is recommended when playing at high volumes.

. Caution: to prevent electrical shock do not use this

(polarized) plug with an extension cord, receptacle
or other outlet unless the blades can be fully in-
serted to prevent blade exposure.

Attention: pour pevenir les chocs elecriques pas
utiliser cette fiche polarisee avec un prolongateur,
une prise de courant ou un autre sortie de courant,
sauf si les Iames peuvent etre inserees afond ans en
Iaisser aucune partie a decouvert.

. Unplug this apparatus during lightning storms or when

unused for long periods of time.

. Only use attachments/accessories specified by the

manufacturer.

Installation:

9.

10.

The equipment shall be installed near the AC Socket
Outlet and the disconnect device shall be easily acces-
sible.

Do not block any ventilation openings. Install in accor-
dance with the manufacturers instructions.

11.Do not install near any heat sources such as radiators,

12.
13.

14.

heat registers, stoves, or other equipment (including
amplifiers) that produce heat.

Do not use this equipment near water.

Do not expose this equipment to dripping or splashing
and ensure that no objects filled with liquids, such as
Vases, are placed on the equipment.

Use only with the cart, stand, tripod,

bracket, or table specified by the manu-

facturer, or sold with the equipment.

When a cart is used, use caution when

moving the cart/equipment combination

to avoid injury from tip-over.

Connection:

15.

16.

17.

Connect this equipment only to the type of AC power
source as marked on the unit.

Protect the power cord from being walked on or
pinched particularly at plugs, convenience receptacles,
and the point where they exit from the equipment.

Do not defeat the safety purpose of the polarized or

grounding-type plug.

Page 14

IIItInlnah

How to Connect the CR16 in a Stand Alone Monitor/TV
System

1. Connect a McIntosh Multi-Channel Amplifier with a
DB25 computer type cable from the CR16 Multi-Chan-
nel Amp connector to amplifier input connector.

Note: Both audio and zone power control pass through this
cable. Discrete zone audio cables may also be used,
either balanced or unbalanced. Refer to page 4 for the
DIN plug balanced terminal connections. Also connect a
cable fiom the CR16 DIN Multi Channel Amp connector
to the matching connector on the amplifier to provide
zone power control.

2. Connect a WK-3/WK-4 keypad, using 4 conductor

shielded cable to a zone terminal connector.

Note: A WK 2 Keypad or R649 Wall Sensor connected to the
Zone Sensor Connector with RG6 or RG59U coax cable
may also be used.

3. Connect the Video Outputs of A/V Source Components
to the CRl6 Video Inputs.

5. For a dedicated Zone Source Component, connect the (Q) C; (i _
Audio/Video Outputs and the Data Port Input to the
CR16 Zone Aux In connectors.

McIntosh Keypad

Illtlulnsh wm Wall Keypad

6. Connect the Video Out to Mon to the Video input of a arm-wt: 2mm. swam-mm
. swarm
remote zone TV or monitorl [: téfla'iiéfim

7. Connect a Power Control cable from the CRl6
POWER CTL (Control) jack to the Power Control In
of a McIntosh Tuner.

8. Connect a Power Control cable from the McIntosh
Tuner Power Control Out Jack to the Power Control In 0 O O
of a McIntosh DVD Player and then onto the next
McIntosh Source Component.

9. Connect a Data cable from the CR16 DVD DATA
PORT to the DATA IN of a McIntosh DVD Player.

10 Connect the CR16 power cord to a live AC outlet.

McIntosh Eight Channel Amplifier

Illl l sh Moss

M AHNEL

Page 28

r1111135

McIntosh Laboratory, Inc,
2 Chambers Street
Binghamton, NY 13903

McIntosh Part No. 040728
