For the Consumers Protection:
In order to ensure the highest level of customer satisfaction, new McIntosh products may only be purchased over-the-counter or delivered and installed by an Authorized McIntosh Dealer. McIntosh products that are purchased over the Internet, by phone or mail order are presumed to be used and do not qualify for any McIntosh Warranty. McIntosh does not warrant, in any way, products that are purchased from anyone who is not an Authorized Dealer or products that have had their serial number altered or defaced.
Companion Products
The MC152 Amplifier, MCT450 SACD/CD Transport, MT5 Turntable, MHP1000 Headphones and XR50 Loudspeakers
are logical companions for the C47 Stereo Preamplifier. Your Authorized Dealer can provide additional information on other McIntosh product combinations.
To learn more, please call us at 1.800.538.6576.
35103900
Frequency Response:
+0, -0.5dB from 20Hz to 20kHz
+0, -3.0dB from 10Hz to 100kHz
Total Harmonic Distortion:
0.003% maximum from 20Hz to 20kHz
Signal to Noise Ratio (High Level):100dB
Rated Output Voltage:Balanced: 5 Vrms
Unbalanced: 2.5 Vrms
Maximum Voltage Output:Balanced: 16 Vrms
Unbalanced: 8 Vrms
Digital Section:2 optical and 1 coaxial inputs decode digital music at up to 24-bit/192kHz;1 USB input accepts PCM signals up to 32-bit/384kHz and supports DSD64, DSD128 and DSD256 plus DXD 352.8kHz and DXD 384kHz
Overall Dimensions (W x H x D):
17-1/2 (44.45cm) x 6 (15.2cm)
including feet x 18 (45.72cm) including
the front panel, knobs and cables
Weight:
23 lbs (10.4kg) net,
37.5 lbs (17kg) in shipping carton

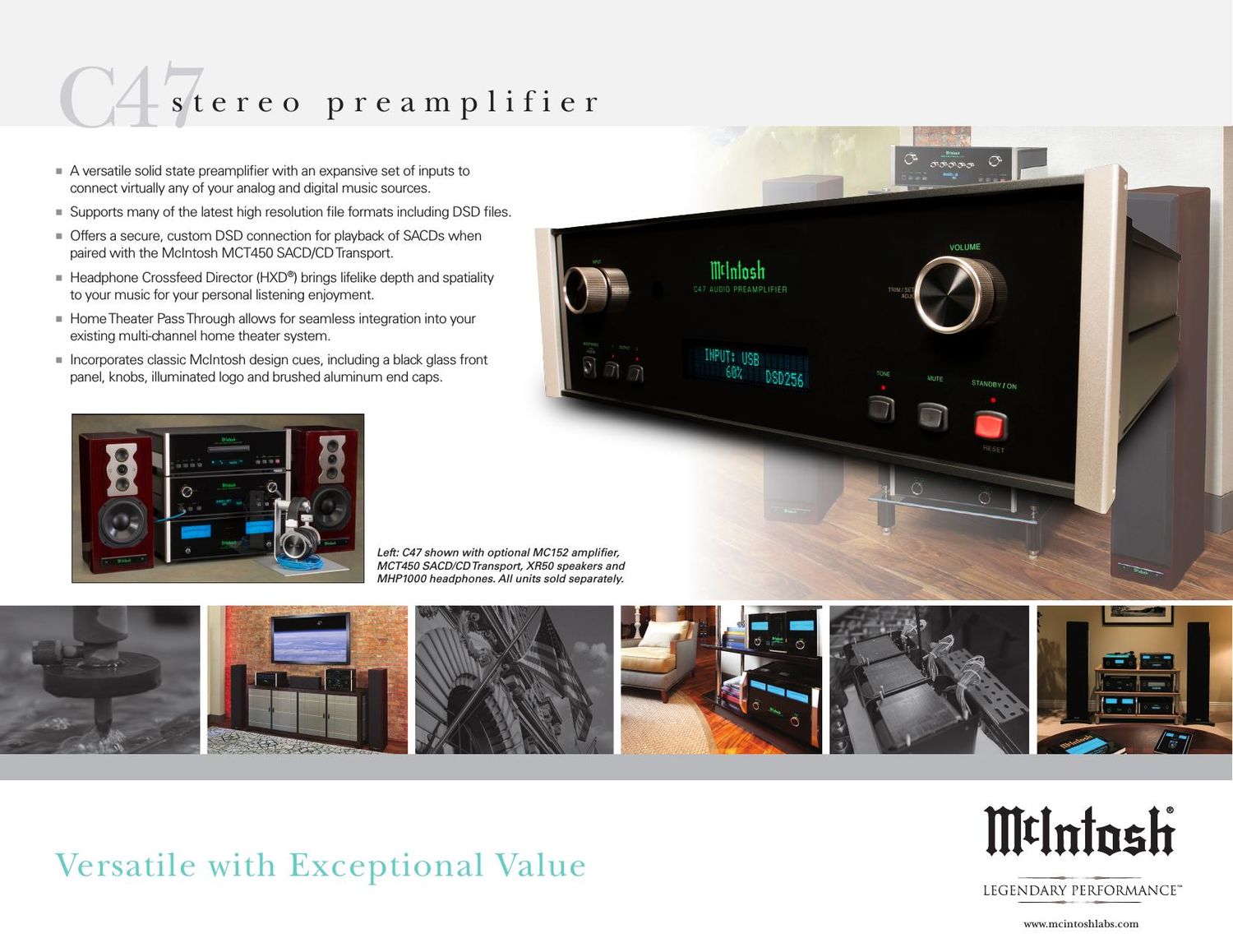

C47 stereo preamplifier
