Frequency Response:
+0, -0.5dB from 20Hz to 20kHz
+0, -3dB from 10Hz to 100kHz
Total Harmonic Distortion:
0.08% Maximum from 20Hz to 20kHz
Inputs:
Six high level unbalanced
Two high level balanced
Two Phono: one Moving Coil adjustable,
one Moving Magnet
Five digital inputs
Maximum Output Voltage:
Unbalanced Main and
Outputs 1 & 2: 8 Vrms
Balanced Main and
Outputs 1 & 2: 16 Vrms
Digital Section:
Two Coax, Two Optical assignable and
one dedicated USB Audio
McIntosh Digital Engine is 32 bit 192kHz,
USB 2.0 asynchronous
Companion Products
The McIntosh MC2301 Tube Amplifier, MCD500 SACD/CD Player, MR88 AM/FM/XM/HD Tuner,
MEN220 Room Correction System and XRT1K Loudspeakers are logical companions for the
C2500 Tube Preamplifier. Your authorized dealer can provide additional information.
To learn more, please call us at 1.800.538.6576. Tone Controls:
Bass and Treble, +/- 12dB
High Drive Headphone Amplifier:
All headphones from 20 to 600 Ohms
Home Theater Pass Through:
Allows interfacing with a
Home Theater system
Overall Dimensions (W x H x D):
17-1/2 (44.45cm) x 7-5/8 (19.37cm)
x 18 (45.72cm)
Weight:
30.5 lbs (13.8kg) net,
46 lbs (20.9kg) in shipping carton
35101300

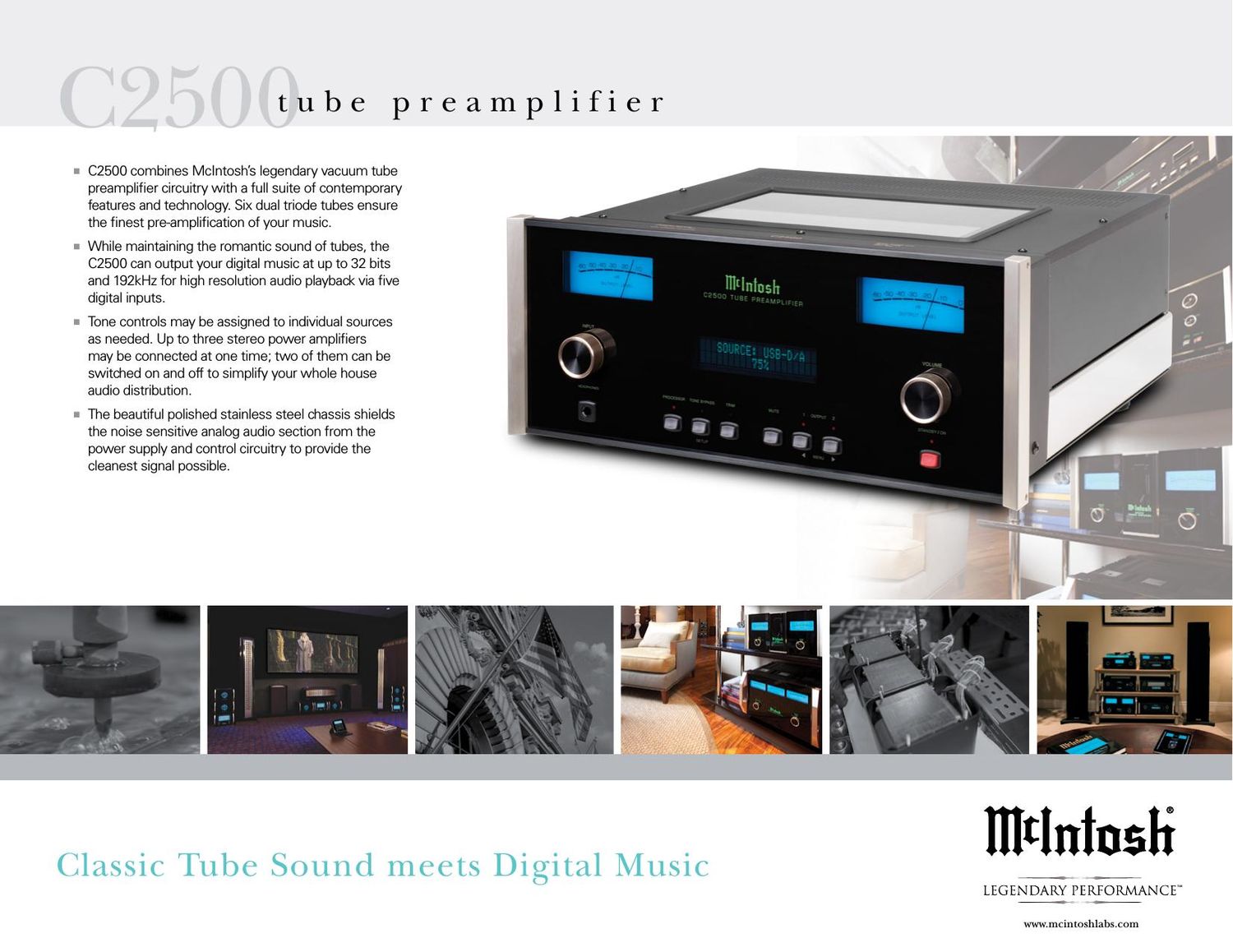

C2500 tube preamplifier
