For the Consumers Protection:
In order to ensure the highest level of customer satisfaction, new McIntosh products may only be purchased over-the-counter or delivered and installed by an Authorized McIntosh Dealer. McIntosh products that are purchased over the Internet, by phone or mail order are presumed to be used and do not qualify for any McIntosh Warranty. McIntosh does not warrant, in any way, products that are purchased from anyone who is not an Authorized Dealer or products that have had their serial number altered or defaced.
Companion Products
The MC2KW Amplifier, MCT450 SACD/CD Transport, D150 Digital Preamplifier, MT10 Turntable, MR88 AM/FM/HD Tuner, MB100 Media Bridge,
MEN220 Room Correction System, MPC1500 Power Controller and XRT2K Loudspeakers are logical companions for the C1100 Stereo Preamplifier. Your Authorized Dealer can provide additional information on other McIntosh product combinations.
To learn more, please call us at 1.800.538.6576.
35104100

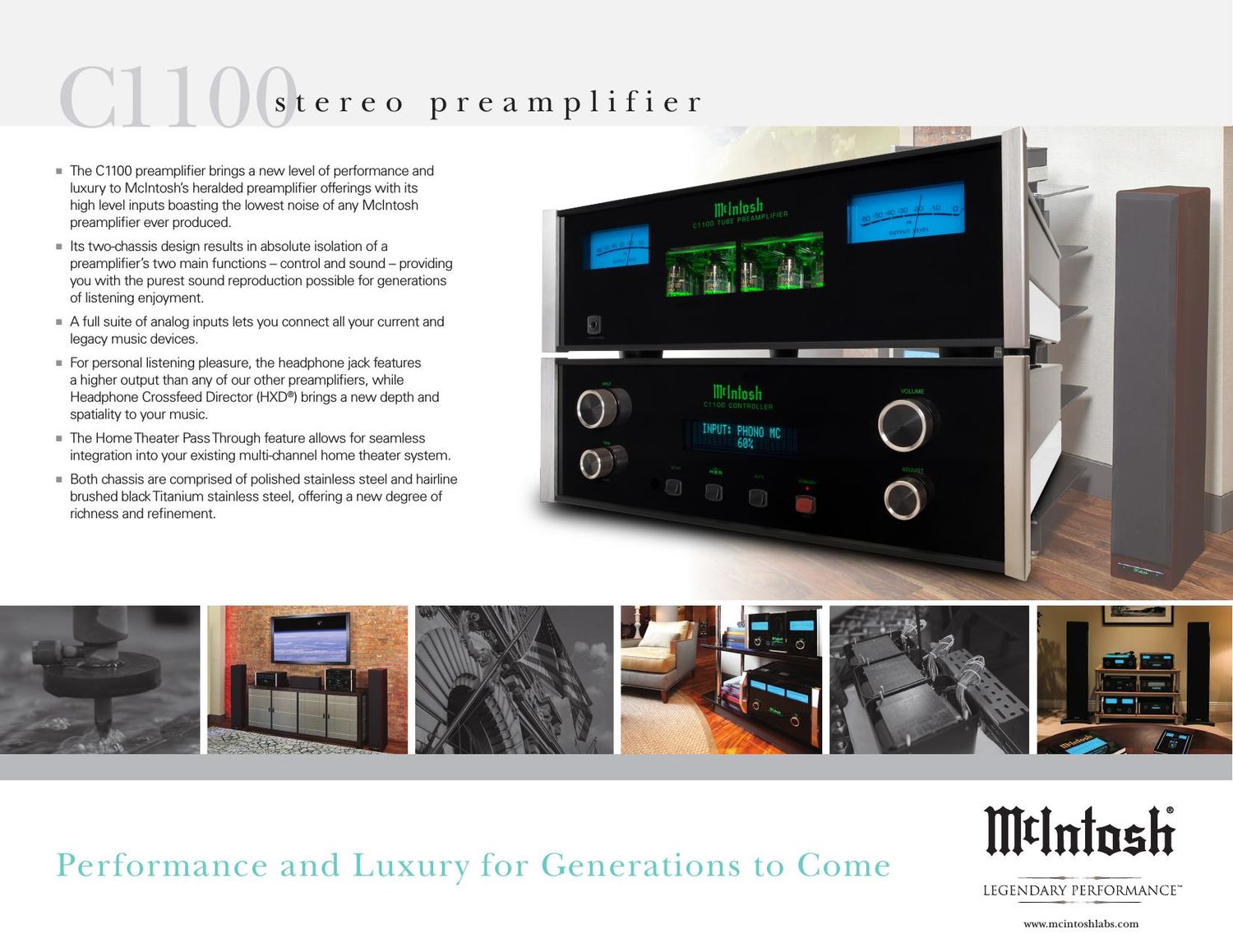

C1100 stereo preamplifier
Top: Controller Bottom: Tube Preamplifier
Frequency Response:
+0, -0.5dB from 20Hz to 20kHz
+0, -3.0dB from 10Hz to 100kHz
Total Harmonic Distortion:
0.005% maximum from 20Hz to 20kHz
Signal to Noise Ratio (High Level):107dB
Rated Output Voltage:Balanced: 5 Vrms
Unbalanced: 2.5 Vrms
Maximum Voltage Output:Balanced: 20 Vrms
Unbalanced: 10 Vrms
Overall Dimensions (W x H x D):
Each chassis: 17-1/2 (44.45cm) x 6
(15.2cm) including feet x 18 (45.72cm)
including the front panel, knobs and cables
Weight:
Controller: 27 lbs (12.3kg) net,
43.5 lbs (19.7 kg) in shipping carton;
Tube Preamplifier: 25 lbs (11.3kg) net,
39.5 lbs (1 7. 9 kg) in shipping carton
