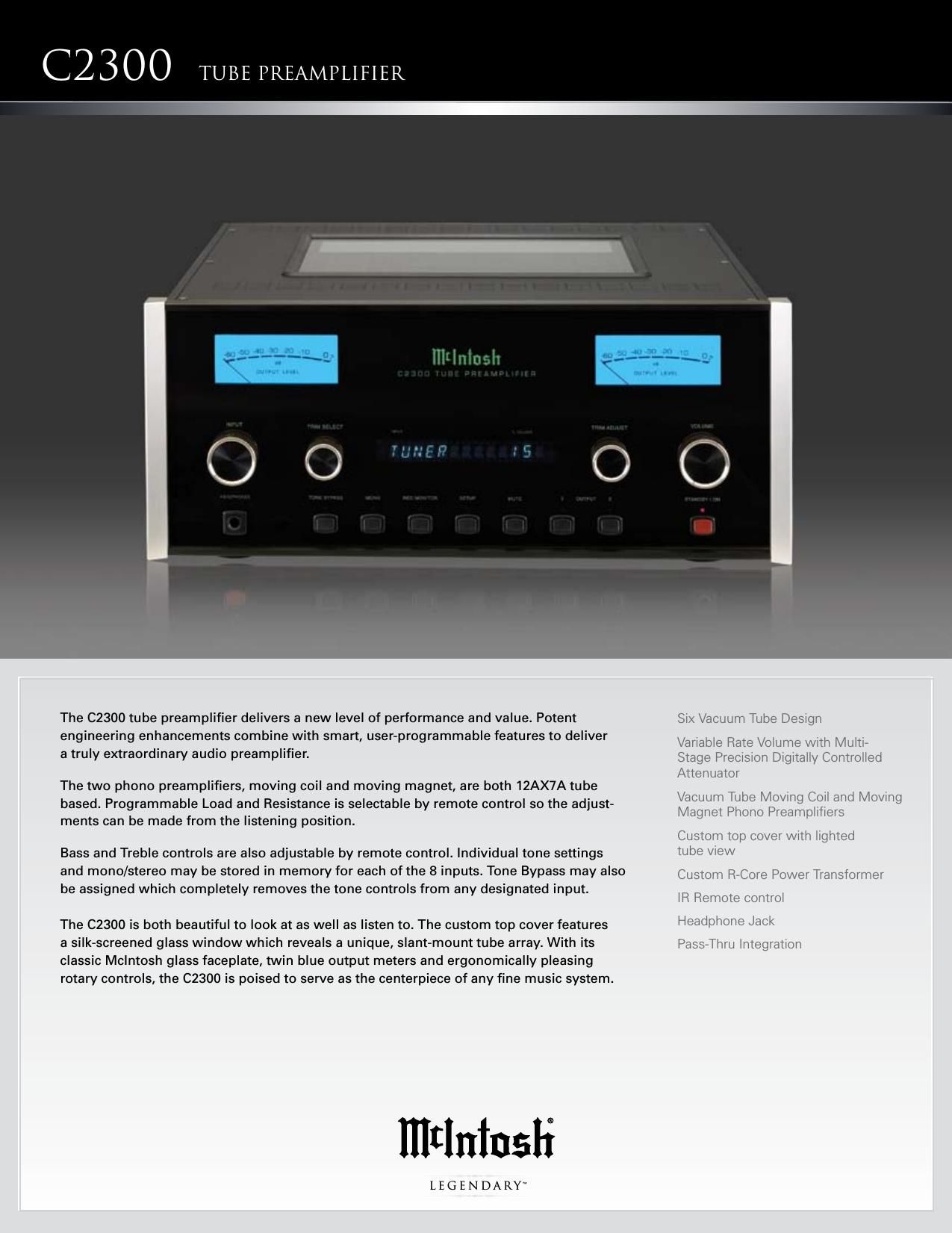

c2300 Tube Preamplifier
FREQUENCY RESPONSE
+0, -0.50dB from 20Hz to 20kHz
+0, -1dB from 10Hz to 100kHz
RATED OUTPUT
Balanced: 5VRMS at MAIN, 1 and 2
Unbalanced: 2.5VRMS at MAIN, 1 and 2
OUTPUT IMPEDANCE
250 Ohms
MAXIMUM VOLTAGE OUTPUT
Balanced: 16VRMS at MAIN, 1 and 2
Unbalanced: 8VRMS at MAIN, 1 and 2
TOTAL HARMONIC DISTORTION
0.08% maximum from 20Hz to 20kHz
SENSITIVITY
Phono, MC: 0.45mV for 2.5V
Phono, MM: 4.5mV for 2.5V
High Level: 450mV for 2.5V
SIGNAL-TO-NOISE RATIO (A-Rated)
Phono: 80dBHigh Level: 93dB
MAXIMUM INPUT SIGNAL
Phono, MC: 5mVPhono, MM: 50mV
High Level: 5V BalancedINPUT IMPEDANCE
Phono: MC: 25, 50, 100, 200, 500, or 1000 Ohms
MM: 47k Ohms, 50 to 750pF, 50pF steps
High Level:
Balanced: 40k Ohms
Unbalanced: 20k Ohms
VOLTAGE GAIN
Phono, Moving Coil to Record Output: 60dB
Phono, Moving Magnet to Record Output: 40dB
High Level to Record Output: 0dB
High Level to Main Output: 15dB
OVERALL DIMENSIONS (H x W x D)
7-1/8 (18.1 cm) X 17-1/2 (44.4 cm) X 14-1/2
(36.8 cm) including clearance for connectors.
Knob clearance in front of the mounting panel
is ¾ (1.9 cm)
WEIGHT
29.5 lbs (13.41 kg) net
44.9 lbs. (20.41 kg) in shipping carton
EIGHT PROGRAMMABLE
SOURCE SELECTIONS
All eight source elections accommodate
unbalanced inputs while four of the either
also accommodate balanced inputs. Any
of 12 standard names can be assigned to
a source selection and the panel display
can be customized to indicate only
available sources.
SILENT ELECTROMAGNETIC
SWITCHING
Signal routing is accomplished through
digitally controlled electromagnet
switching devices. Precision switch
contacts, isolated from environmental
contamination inside inert gas-filled glass
tubes, provide the most reliable, quietest
and lowest distortion switching
possible.
VRV (VARIABLE RATE VOLUME)
DIGIALLY CONTROLLED
ATTENUATOR
The output attenuator controls volume
over 214 steps of .5dB each with accuracy
within .1dB. The volume vs. rotation rate
varies as preamplifier gain varies and
attenuation changes occur at eh zero
crossings of the audio signal to prevent
audible artifacts during adjustment.
FOR THE CONSUMERS
PROTECTION
In order to ensure the highest level
of customer satisfaction, new McIntosh
products may only be purchased over-the-
counter or delivered and installed by an
Authorized McIntosh Dealer.
McIntosh products that are purchased
over the Internet, by phone or mail order
are presumed to be used and do not
qualify for any McIntosh Warranty.
McIntosh does not warrant, in any way,
products that are purchased from anyone
who is not an Authorized Dealer or prod-
ucts that have had their serial number
altered or defaced.
