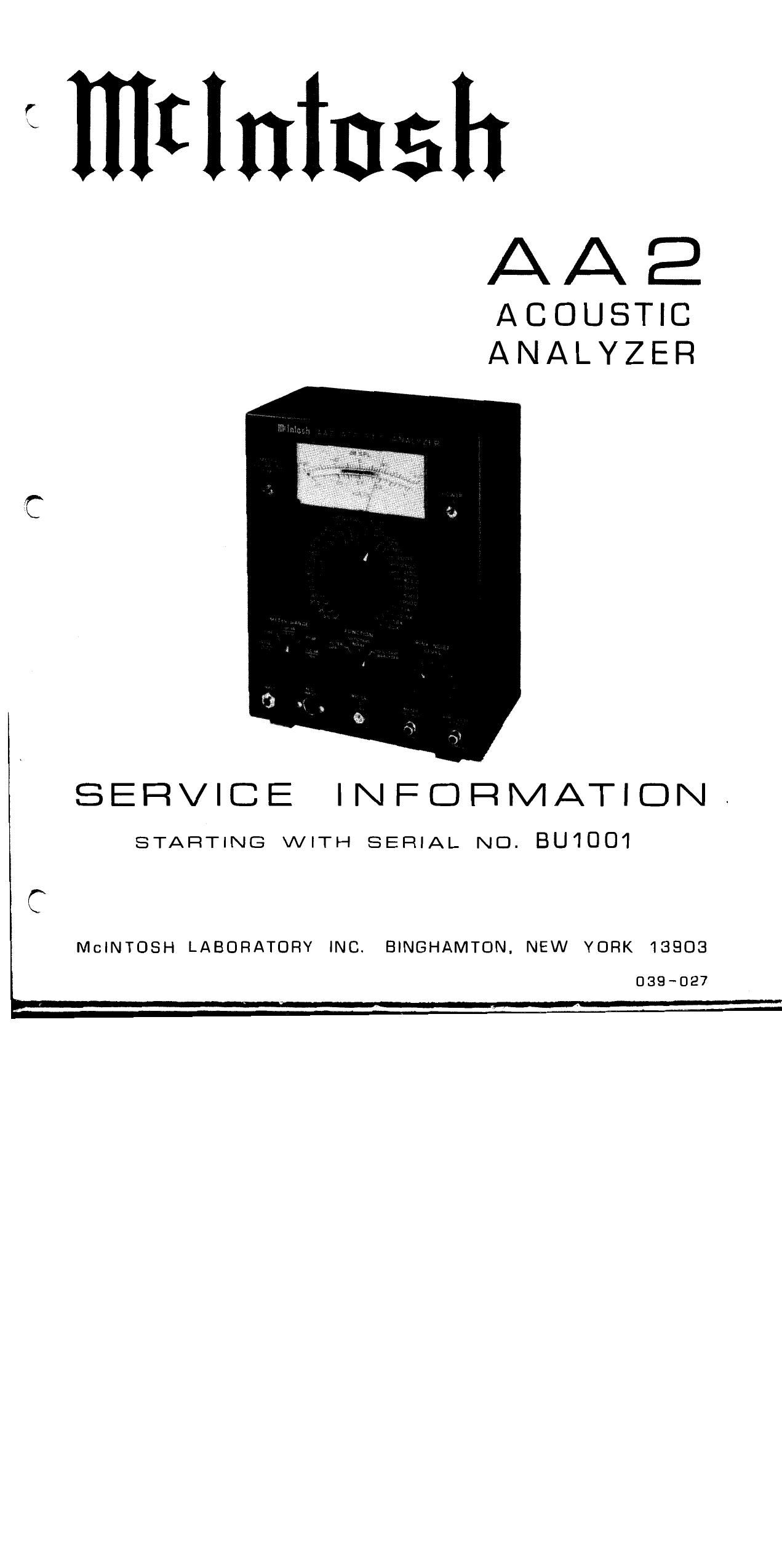

AA2
PERFORMANCE LIMITS
METER CIRCUIT .
Frequency Range: 20 Hz to 20 kHz, response t 0.5 dB
Waveform Response: Average responding calibrated in RMS volts and dB SPL
Averaging Time; Selectable, fast and slow (5 sec. and 30 sec.)
Signal Range: SPL, 60 dB to IOO dB at mid scale volts, lmV to lOOm volts AC full scale
Meter Scales: volts calibrated from .0] to l. SPL, calibrated from -20 dB to + 20 dB
Crest Factor: Greater than A at full scale.
Input Impedance: 50k ohms and less than SOpF
Meter Output Level And Impedance: l volt output at full scale meter reading
Source impedance 300 ohms
Load impedance not less than IOk ohms
ONE THIRD OCTAVE FILTER
PINK
Frequency Range: 20 Hz to 20 kHz in 3l ranges with ISO recommended band frequencies (20, 25, 31.5,
40, SO, 3. BO, 100, l25, I60, 200 and multiples of IO and I00 thereof)
Selectivity: l/3 octave bandwidth (29% wide). Two filter sections are used each having a pole
butterworth filter characteristic. At .58 and l.8 times the center frequency, each section
is down Is dB (30 dB for both sections).
NOISE GENERATOR
Frequency Range: 20 Hz to 20 kHz with output 1 I dB per l/3 octave bandwidth .
Output Level: 0 to l volt RMS into l0 k ohms or higher. Output source impedance less than I k ohm.
Output is peak limited for all settings of the level control,
Crest Factor: About A
Source: Digital logic pseudo random noise generator
CM ZOI CONDENSER MICROPHONE
Response 20 - 20,000 Hz (see typical curves)
Sensitivity -65 dB re l volt per microbar at l kHz nominal
Noise equivalent A dB SPL unweighted
Cartridge diameter l3 mm (.46 inches)
Cablez~ Two conductor shielded. Length 10 meters (32.8 feet)
Stand adapter with 5/8 - 27 thread
POWER REQUIREMENTS
l20 volts, 50-60 Hz, 6 watts
MECHANICAL INFORMATION
Size: Length ll.75 (29.8 cm), width 8.75 (22.2 cm), height 9.5 (24.1 cm)
Weight: ILI pounds (6.35 kg) net, l6 pounds (7.26 kg) in shipping carton . 1
Finish: Black
