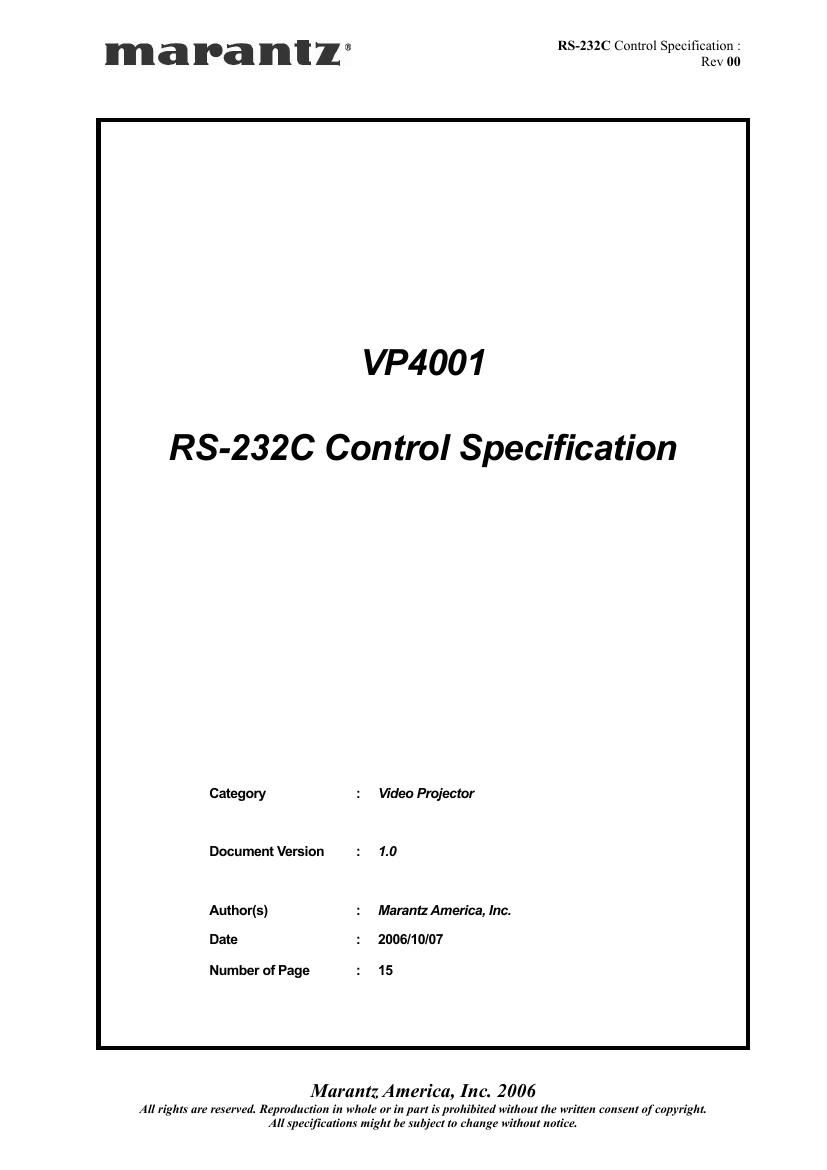

VP4001 RS-232C Control Specification Page: 2 / 15
Document Version [1.0]
Company Restricted
Table of Contents
1.
Introduction ............................................................................................................................................................ 3
1-1. Purpose ............................................................................................................................................................ 3
1-2. Scope................................................................................................................................................................ 3
1-3. Abbreviations ................................................................................................................................................... 3
2. Global Description ................................................................................................................................................ 3
2-1. Overview........................................................................................................................................................... 3
2-2. Block Diagram.................................................................................................................................................. 3
2-3. Interface connection specification of the product ........................................................................................... 3
2-3-1. RS-232C Cross Cable............................................................................................................................. 3
2-3-2. Signal Discription ..................................................................................................................................... 4
3. Detailed Description.............................................................................................................................................. 4
3-1. Connection format ........................................................................................................................................... 4
3-1-1. Physical connection ................................................................................................................................. 4
3-2. Transmission data format ................................................................................................................................ 4
3-2-1. Transmission data format from Host to Slave ........................................................................................ 4
3-2-1-1. Form1: Command ........................................................................................................................... 4
3-2-2. Transmission data format from Slave to Host........................................................................................ 5
3-2-2-1. Form1: OK/ERR .............................................................................................................................. 5
3-2-2-2. Form2: Status answer and Auto status feedback .......................................................................... 5
3-3. The transaction sequences and the regulations ............................................................................................ 5
3-3-1. The transaction sequences ..................................................................................................................... 5
3-3-2. The transaction regulations ..................................................................................................................... 5
4. Definitions of Command and Status .................................................................................................................. 6
4-1. Commands....................................................................................................................................................... 6
4-1-1. Normal Command for General ............................................................................................................... 6
4-1-2. Normal Command for COMPONENT 1 Input ....................................................................................... 9
4-1-3. Normal Command for COMPONENT 2 Input ..................................................................................... 10
4-1-4. Normal Command for S-VIDEO Input.................................................................................................. 11
4-1-5. Normal Command for VIDEO Input ..................................................................................................... 12
4-1-6. Normal Command for RGB Input ......................................................................................................... 13
4-1-7. Normal Command for HDMI Input........................................................................................................ 14
5. Revision history................................................................................................................................................... 15
Page 2
VP4001 RS-232C Control Specification Page: 3 / 15
Document Version [1.0]
Company Restricted
1. Introduction
1-1. Purpose
This document was written as a reference specification of products that are controled by the host
controller.
1-2. Scope
This document would be using by software or hardware engineers for production of the product.
1-3. Abbreviations
Abbreviation Description
2. Global Description
2-1. Overview
A Host controller can control or watch out the product as a Slave very easily via the communication cable.
2-2. Block Diagram
* The product connector is using 9-pin Mini DIN connector.
* D-SUB to Mini DIN adapter is attached as an accesory.
* Cross type RS232C cable have to be used (D-SUB 9-pin female on product side).
2-3. Interface connection specification of the product
2-3-1. RS-232C Cross Cable
Connector Pin
#
Signal
Name
Connection Signal
Name
Pin
#
Connector
1
CD CD 1
2
RD RD 2
3
SD SD 3
4
ER ER 4
5
SG SG 5
6
DR DR 6
7
RS RS 7
8
CS CS 8
9
CI
CI 9
D-SUB 9-pin, Male
HOST
(Controller) SLAVE
(VP4001)
RS232C cable (Cross)
Connector:
Mini DIN 9-pin
