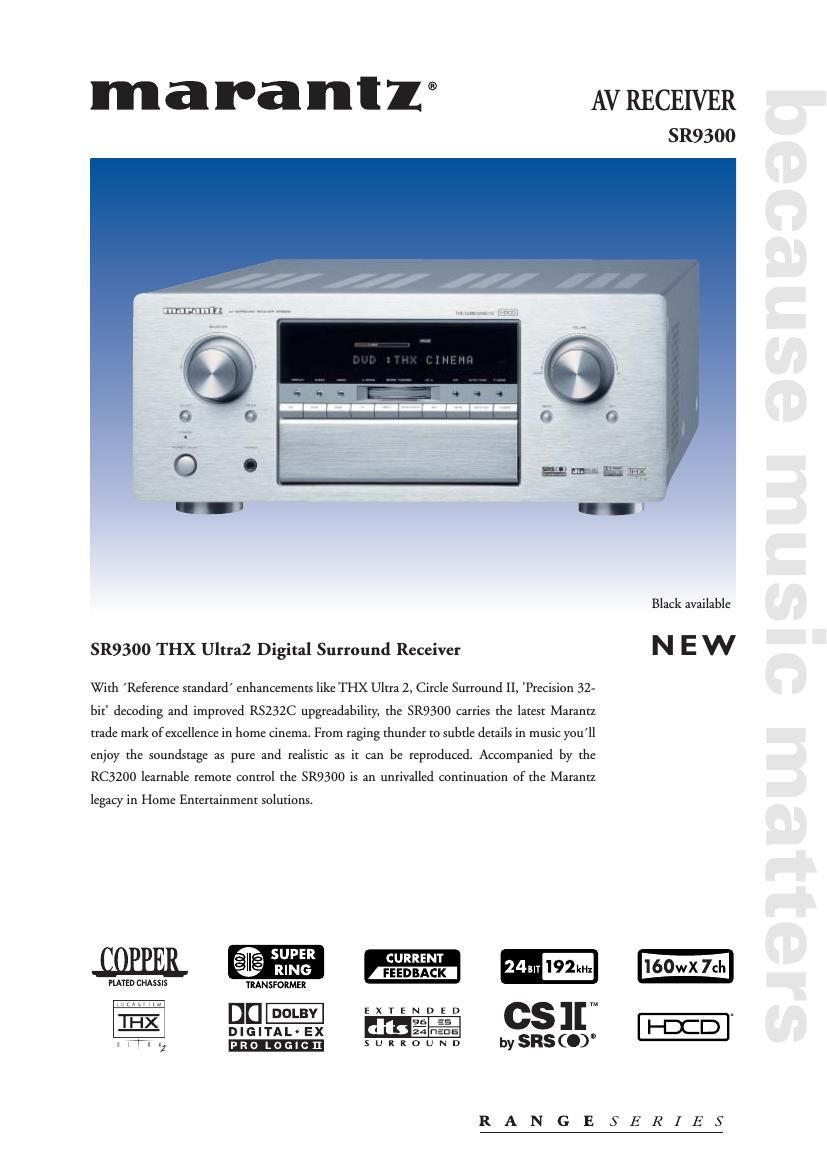

Page 1
The future at your fingertips
Based on the extremely successful SR9200 concept, the SR9300
represents cutting-edge technology and innovation with several
unique Marantz sound enhancements. The THX Ultra2
specification provides
uncompromised 7.1
channel playback of any
multi-channel program,
wether it's movie
soundtracks or music,
over the widest possible
seating area. With a
fully discrete 7 channel
amplifier section
capable to deliver 160
watts of high-current amplification, the SR9300 delivers a
continuously clean and stable power into each of the seven
channels. Designed and engineered with extensive feed-back
from custom installation experts, dealers and consumers the
SR9300 versatility is taken to a new stunning level. Ease of
control during setup and operation is guaranteed through the
RC3200, with two-way communication which will display the
status of the SR9300 on the back-lit touch screen panel.
THX Ultra2, Advanced Speaker Array & Boundary Gain
Compensation
The SR9300 features THX Ultra2 which incorporates two
additional processing technologies: Advanced Speaker Array
(A.S.A.) and Boundary Gain Compensation (B.G.C). Asa is a
proprietary THX technology which processes the sound fed into
2 surround and 2 surround back speakers to provide the
optimum in enveloping surround sound reproduction. When
placing the 2 surround back speakers close to each other and
building your home theater setup using 8 speakers, ASA will
create the largest possible sweet spot in your surround
soundfield. ASA is used in 2 new surround modes: THX Ultra2
Cinema mode and THX Music mode. THX Ultra2 Cinema
mode plays 5.1 movies using all 8 speakers, processing the side
surround speakers and back surround speakers providing the
optimal mix of ambient and directional surround sounds. For
the replay of multi-channel music the THX Music Mode ASA
processes the surround channels of all 5.1 encoded music
sources such as DTS and Dolby Digital to provide a wide stable
and natural rear soundstage.Notes: Both modes are only available having a 7.1 speaker
system (2 back surround speakers) and the input signal has
surround left and Surround Right content!
Boundary Gain Compensation provides an optimised bass
balance in case the listening room layout results in most of the
listeners being seated close to the rear wall. This technology
prevents a 'boomy' bass yet processes the appropriate bass
reinforcement.
THX Surround-Ex
THX Surround-Ex brings a new dimension of depth, spacious
ambience and sound localization to home theatre environment.
Feature films originally released in Dolby Digital Surround EX
carry the encoded third surround channel in their subsequent
DVD releases, as well as onto 5.1-channel digital satellite and
terrestrial TV broadcasts. The benefits of Surround EX include
more realistic flyover and fly-around effects, a more stable image
for atmospheres and music, and a more consistent surround
effect throughout the auditorium or home viewing area. The
SR9300 provides this effect via two additional Surround Back
channels. The overall effect is one of phenomenal sonic realism,
and audible sense of 'being there' that has never before been
realised at home.
DTS-ES, 96/24 decoding
The DTS-ES surround system offering a superb sound quality
and a range of formats. The Discrete 6.1 offers the ultimate
quality of surround field creation, while the Matrix 6.1 provides
compatibility for the existing DTS 5.1 software. And the Neo:6
is to create 6.1 surround stage from any two channel source.
DTS 96/24 allows for 5.1 channel sound track encoding at a
rate of 96kHz/24 bits on DVD-Video titles. Higher sampling
rates provide greater bit depth and allow a wider frequency
response. In conjunction with the use of anti-alias and
reconstruction filters DTS 94/24 results in a more transparent
sound quality equivalent to the original soundtrack and is fully
backwards compatible at the same time.
Technological glossary:
-– Ensures the best aural characteristics in differently encoded
movie and music content. Benefits are an extended dynamic
range, improved transparancy, separation and imaging which
all result in a dramatically improved sense of realism.
-– Excellent frequency response and superb sonic perfomance for
the highest standard such as SACD and DVD-Audio
-– Utilizing two DACs per channel in opposite phase, offering
the most superb and detailed soundstage and -accurracy
-– Let's you enjoy a smoother and more realistic surround
reproduction for both DD and DTS material
-– Allows audio and video source selection and control of a
second room
-– Make today's receiver for tomorrow's standard ready
-– Ultimate video quality and automatic switching
-– To ensure the renown premium Marantz sound reproduction
-– Flexible system integration and total control by using one
remote handset
Benefits: Features:
-– Most advanced New Digital Signal Processing: THX Ultra2,
Precision 32-bit decoding Dolby Digital and DTS, 96/24
decoding DTS and Circle Surround II
-– Wide range full discrete Current Feedback amplifiers
-– Addaptive Double Differential Control (A.D.D.C.) for stereo
playback
-– Precision 32-bit' decoding
-– Multi room system
-– Firmware update through RS-232C port
-– Scart connector with RGB video switching
-– Top grade audio components
-– Bi-directional RC3200 Remote Control and Marantz D-BUS
system
Page 2
Dolby Pro Logic II
Dolby Pro Logic is capable of producing a Multi Channel
soundstage using only a two channel source, meaning that
normal TV broadcast can only be decoded using this decoding
technique. Now the standard is being successed by the Dolby
Pro Logic II format, offering the full frequency range accross all
channels and even with a stereo soundfield on the surround
speakers. This experience of two channel decoding adds a more
realistic element to watching TV and is fully compatible with
the Dolby Pro Logic standard.
A touch of Marantz
The strenght of each Marantz design can be found in the
attention to detail and cohesiveness of the different elements.
The SR9300 is a clear example of benchmark engineering and
craftmanship and features a number of Marantz sound
enhancements like Current Feedback topology amplification
which makes the power amplifier in-sensitive to (difficult)
loudspeaker loads. It incorporates leading edge digital signal
processing, along with a Crystal 192 kHz/24 bit D/A converter
in each of the seven channels. In 2-channel mode, DACs
reassigned and will automatically switch to dual differential
mode for a highest possible D/A conversion quality.
All of the digital, analogue and control circuits are separated and
extensively shielded in their own enclosures to prevent cross-talk
and other unwanted interference.
Independent power supplies for the FL display, audio and video
sections secure maximum separation, clarity and dynamics.
Hand-selected high grade customised components, gold-plated
terminals and a copper plated chassis all work in harmony.
It employs an extensively braced and shielded, massive super
ring toroidal power transformer in combination with quad
marantz blue, oversized filter capacitors. To achieve a top-notch
competitiveness Marantz has also designed a new intelligent
cooling system and a high efficiency heatsink. This design
configuration is capable of a clear and powerful reproduction of
the most demanding action movie soundtracks and full range
(multi channels) music discs. Its ability to generate very high
output voltages enables it to drive the most demanding speakers
with optimum results.
At the heart of customised home installation
The SR9300 is equipped with two scart terminals to connect
your video source through the centre of your home
entertainment. It provides one touch switching of video and
audio source with a high quality reproduction and feeds useful
information onto the screen via the userfriendly OSD.
It features multi room/multi source, 2 assignable DC triggers, a
RS232c communication port, high grade - heavy duty - speaker
binding posts and an extensive array of both analog and digital
in-outputs. With 9 assignable digital inputs (10 in total), 1 scart
input, SACD Multi-Channel (7.1 channel) direct inputs and a
multi room speaker and OSD output versatility is taken to a
new stunning level. To allow the connection of a separate
digital multi-channel decoder, the SR9300 has an 7.1 input of
which each channel is completely independent. This input is
connected to the power amplifiers with only volume control in
between. Future technologies can therefor be easily incorporated
and making this AV receiver future proof.
With the Marantz audio system placed in the main room of the
house, a second loud speakers can be placed at a separate room.
In those rooms separately an audio source can be selected at a
different sound level, even with full remote controlled
functionality. Not only sound but even video signals can be
handled in such a way that in the separate room a video source
with OSD feature can be selected.
-– User manual
-– Power cable
-– Remote control
-– Batteries
-– FM antenna
-– AM loop antenna
RC3200
Bypacked Accessories
