Marantz SR 7500 Service Bulletin

This is the 3 pages manual for Marantz SR 7500 Service Bulletin.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

Page: 1 / 3

Extracted text from Marantz SR 7500 Service Bulletin (Ocr-read)

Page 1

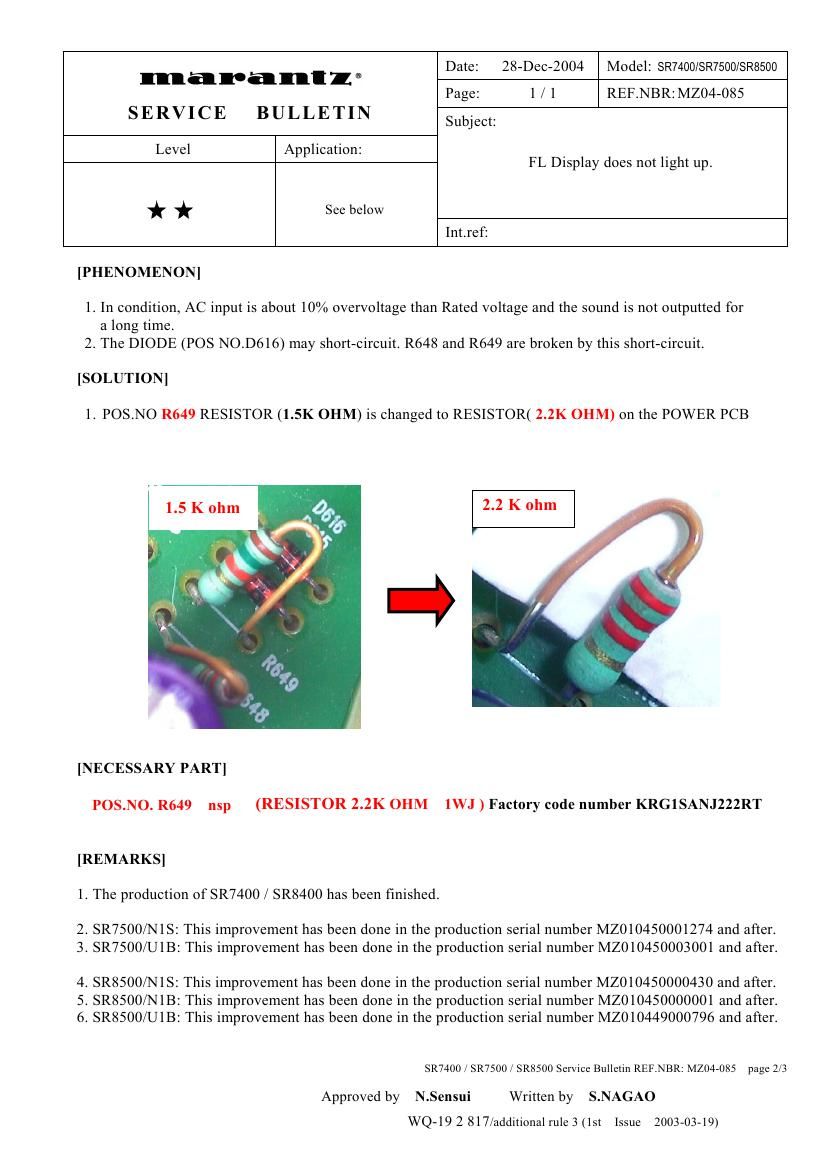

Approved by N.Sensui Written by S.NAGAO WQ-19 2 817 /additional rule 3 (1st Issue 2003-03-19) SR7400 / SR7500 / SR8500 Service Bulletin REF.NBR: MZ04-085 page 3/3 SR7500 / SR8500 R649 1.5K ohm SR7400 R648 2.2K ohm D616 Zener Diode part no. 90M-HD302190R R649 1.5K ohm R648 2.2K ohm D616 Zener Diode part no. 90M-HD302190R

Page 2

Approved by N.Sensui Written by S.NAGAO WQ-19 2 817 /additional rule 3 (1st Issue 2003-03-19) SR7400 POWER PCB SR7500 / SR8500 POWER PCB
