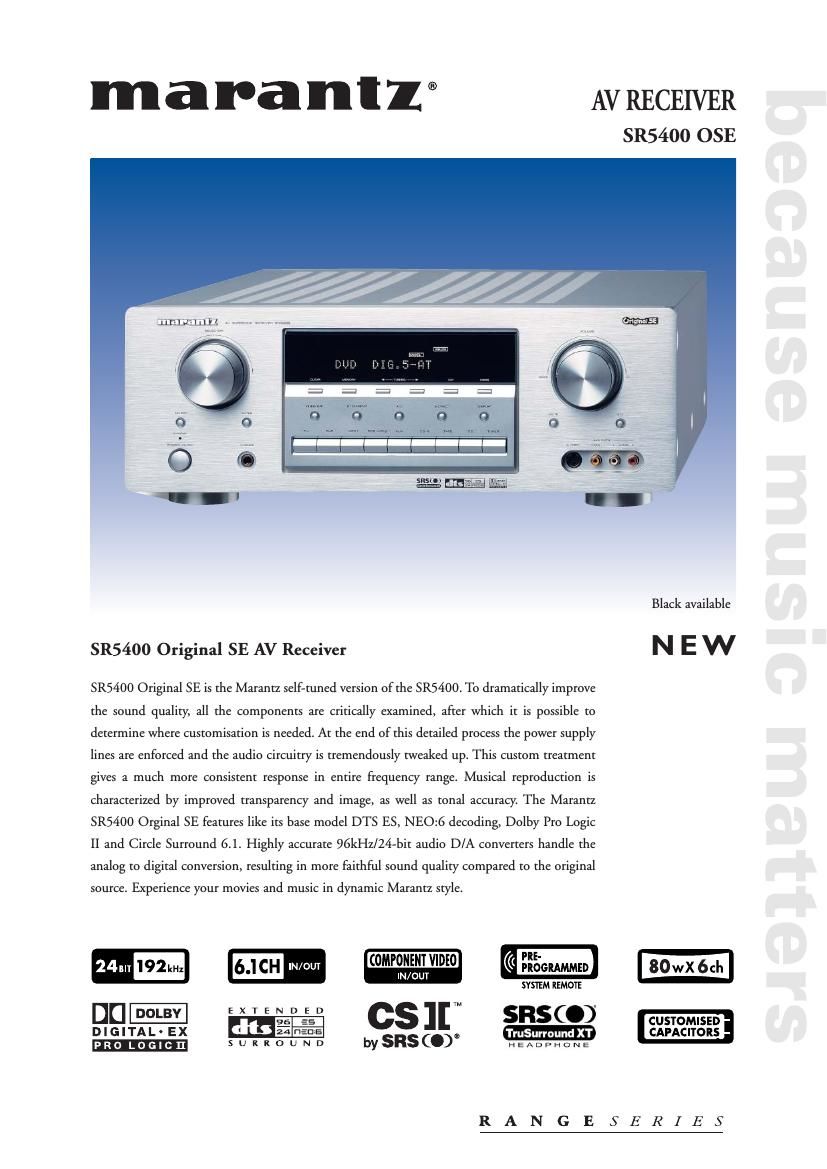

Page 1
Our specialty
Our OSE products are based on exciting audio devices within
the Marantz range and are upgraded to very high standards.
Therefore our OSE products exceed every expectation.
Designed with the greatest care for construction and component
use, these products have really become a Marantz trademark in
terms of value for money. The SR5400 Original SE is capable of
generating 90 watts of discrete power into all 6 channels.
The large power supply incorporates a high current power
transformer, with ample capabilities to drive low impedance
loudspeakers. The SR5400 Original SE incorporates an
extensive array of digital and analog audio and video
connections to accommodate a wide variety of multiple program
sources. Music reproduction is enhanced through a highly
efficient source direct switch, which bypasses the entire A/V
section in audio mode. In direct mode, interference and
disturbance by radiated electrical or magnetic fields are
minimized, ensuring the shortest signal path for the highest
degree of clarity and detail.
Customised components
Every Marantz product is designed with a fine ear and eye for
details. The designers have to know the characteristics of every
component. On paper the component might look excellent but
the result may fall short
of the combined design
expectations. Therefore
Marantz collects vast
amounts of information
upon specifics
component
performance
capabilities. The result
guarantees Marantz
selects the appropriate
components for the specific design application. The sonic result
is then critically acclaimed by international reviewers. In other
cases it's simply not possible to use standard components that
meet the high Marantz standards. These components will then
be specially made for Marantz only in co-operation with the
Marantz engineers.Dolby Digital EX
Dolby Digital EX brings a new dimension of depth, spacious
ambience and sound localization to home theater environment.
The benefits of DD-EX include more realistic flyover and fly-
around effects, a more stable image for atmospheres and music
and a more consistent surround effect throughout the
auditorium or home viewing area.
DTS-ES, 96/24 decoding
The DTS-ES surround system offering a superb sound quality
and a range of formats. The Discrete 6.1 offers the ultimate
quality of surround field creation, while the Matrix 6.1 provides
compatibility for the existing DTS 5.1 software. And the
Neo:6 is to create 6.1 surround stage from any two channel
source. DTS 96/24 allows for 5.1 channel sound track encoding
at a rate of 96kHz/24 bits on DVD-Video titles.
Higher sampling rates provide greater bit depth and allow a
wider frequency response. In conjunction with the use of anti-
alias and reconstruction filters DTS 94/24 results in a more
transparent sound quality equivalent to the original soundtrack
and is fully backwards compatible at the same time.
Dolby Pro Logic II music and movie
Dolby Pro Logic is capable of producing a Multi Channel
soundstage using only a two channel source, meaning that
normal TV broadcast can only be decoded using this decoding
technique. Now the standard is being successed by the Dolby
Pro Logic II format, offering the full frequency range accross all
channels and even with a stereo soundfield on the surround
speakers. This experience of two channel decoding adds a more
realistic element to watching TV and is fully compatible with
the Dolby Pro Logic standard.
CS II
Circle Surround II is a powerfull and versatile multi-channel
technology designed to enable up to 6.1 multi-channel
surround-sound playback from mono, stereo, CS encoded
sources and other matrix encoded sources. CS-II places the
listener "inside" the music performances and dramatically
improves the separation and image positioning of both hi-fi
audio conventional surround-encoded video material, adding a
heightened sence of realism.
Technological glossary:
-– Provides excellent characteristics in differently encoded movie
and music soundtracks. The advantages are an extended
dynamic range, improved transparancy, separation and
imaging resulting in an enveloping realistic and natural
soundstage.
-– Excellent frequency response and superb sonic perfomance for
the highest standard such as SACD and DVD-Audio
-– Direct connection of analogue feeds to allow connection of
multi channel formats like SACD
-– High quality video connection for maximized video content
reproduction
-– Flexibility in source selection, optimised audio and video
quality
-– Make today's receiver for tomorrow's standard ready
-– Personalised realistic surround sound reproduction
-– Flexible system integration and total control by using one
remote handset
Benefits: Features:
-– Latest generation of DSP from Cirrus Logic decodes DTS ES,
96/24 decoding, Dolby Digital EX, Dolby Pro-Logic II and
Circle Surround 6.1
-– Wide range full discrete amplifiers with 90W RMS per channel
-– 6.1 Channel direct input
-– Component Video in/out
-– High Grade Video Switching with Video Off
-– Firmware update through RS-232C port
-– TruSurround Headphone
-– Pre-programmed system Remote Control and Marantz
D-BUS system
Page 2
Experience the emotion
Music and sound track reproduction is enhanced through a
highly efficient source direct switch, which bypasses the total
A/V section in audio mode. In direct mode, interference and
disturbance by radiated electrical or magnetic fields are
minimized, ensuring the shortest signal path for the highest
degree of clarity and detail. Highly accurate 192kHz/24-bit
audio D/A converters process the analog to digital conversion,
resulting in a far more faithful sound quality compared to the
original source. It encompasses the Marantz heritage with
refinements such as a metal alloy faceplate, a efficient video off
mode and high grade components.
Convenience & Functionality´s
The SR5400 Original SE presents multiple surround modes,
like hall, stadium, virtual, matrix, movie and 6-channel stereo.
The extensive feature list, such as auto preset tuning (program
up to 30 stations), manual station naming, display dimmer,
delay function and clock/timer characterize the functionality of
the SR5400 Original SE. An easy-to-use programmable,
learning remote control allows full access to all of the operating
functions and can be used for system operation as well.
The unique Marantz D-BUS connection allows convenient
linkage to other Marantz components.
With the Marantz audio system placed in the main room of the
house, a second pair of loudspeakers can be placed at a separate
room. In those rooms an audio source can be selected seperately
at a different sound level, even with full remote controlled
functionality. Not only sound but even video signals can be
handled in such a way that in the separate room a video source
with OSD feature can be selected.
In Marantz style
To control entire system with one remote handset, Marantz has
designed the D.Bus system. Individual devices inform each other
and remote control commands are communicated via this bus
line. The SR5400 Original SE comes with a pre-coded remote
control, for full intuitive and extensive system control.
-– User manual
-– Power cable
-– Remote control
-– Batteries
-– FM antenna
-– AM loop antenna
RC5400SR
Bypacked Accessories
