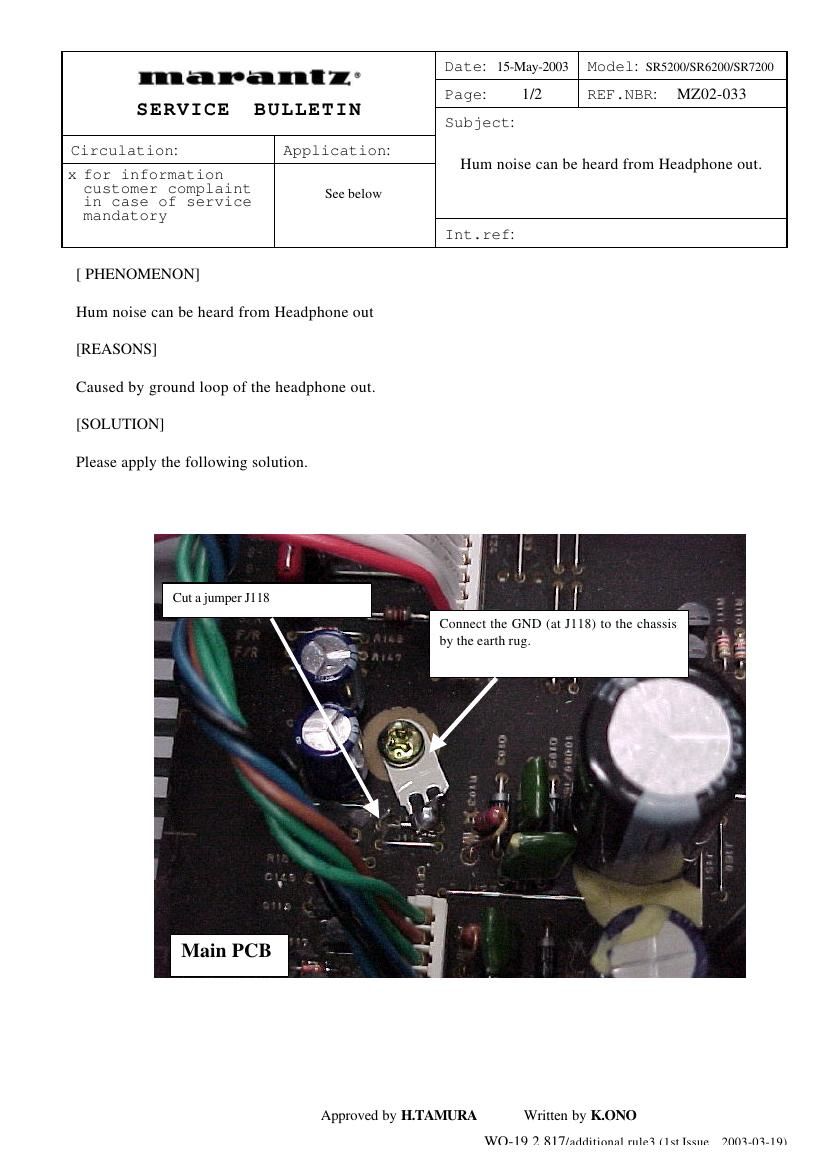

Page 1
Approved by H.TAMURAWritten by K.ONOWQ-19 2 817/additional rule3 (1st Issue 2003-03-19)MZ02-033 Page 2/2[REMARKS]
This solution has already been applied in the production after the serial numbers below.
SR5200/N2BMZ020149006031 and after
SR5200/N2GMZ020149004426 and after
SR5200/U2BMZ020149003041 and after
SR5200/K2GMZ020149003041 and after
SR6200/N2BMZ020149003531 and after
SR6200/N2GMZ020150002446 and after
SR6200/U2BMZ020149004311 and after
SR6200/K2GMZ020150001666 and after
SR7200/N2BMZ010148002426 and after
SR7200/N2GMZ010148002781 and after
SR7200/U2BMZ010148008211 and after
SR7200/K2GMZ010149000681 and after
Page 2
Approved by H.TAMURAWritten by K.ONOWQ-19 2 817/additional rule3 (1st Issue 2003-03-19)Date :15-May-2003 Model : SR5200/SR6200/SR7200
Page : 1/6REF.NBR: MZ02-032
Circulation:Application:
Subject:
Int.ref :
[ PHENOMENON]
Pop noise appears when stop playing or track skip on CD playback with Digital connection.
Pop noise appears in the condition of the Main volume is changed 74dB to 75dB(Mute) .
[SOLUTION]
Please apply the modifications as mentioned in page 2 to page 6.
[Caution] Modifications are deferent with version of the P.C.Board.
Please confirm the version of the P.C.Board
* Version 1 P.C.Board (7020 06076 001-0) : Please apply the modification mentioned on Page2 to 4.
* Version 2 P.C.Board (7020 06076 001-3) : Please apply the modification mentioned on Page5 to 6.[REMARKS]
This solution has already been applied in the production after the serial numbers below.
SR5200/N2BMZ020149006031 and after
SR5200/N2GMZ020149004426 and after
SR5200/U2BMZ020149003041 and after
SR5200/K2GMZ020149003041 and after
SR6200/N2BMZ020149003531 and after
SR6200/N2GMZ020150002446 and after
SR6200/U2BMZ020149004311 and after
SR6200/K2GMZ020150001666 and after
SR7200/N2BMZ010148002426 and after
SR7200/N2GMZ010148002781 and after
SR7200/U2BMZ010148008211 and after
SR7200/K2GMZ010149000681 and after
SERVICE BULLETIN
Pop noise
xfor information
customer complaint
in case of service
mandatory
See below
