Extracted text from Marantz SR 4300 Service Bulletin (Ocr-read)
Page 1
Approved by S.NAGAO Written by
WQ-19 2 817
/additional rule 3 (1st Issue 2003-03-19)

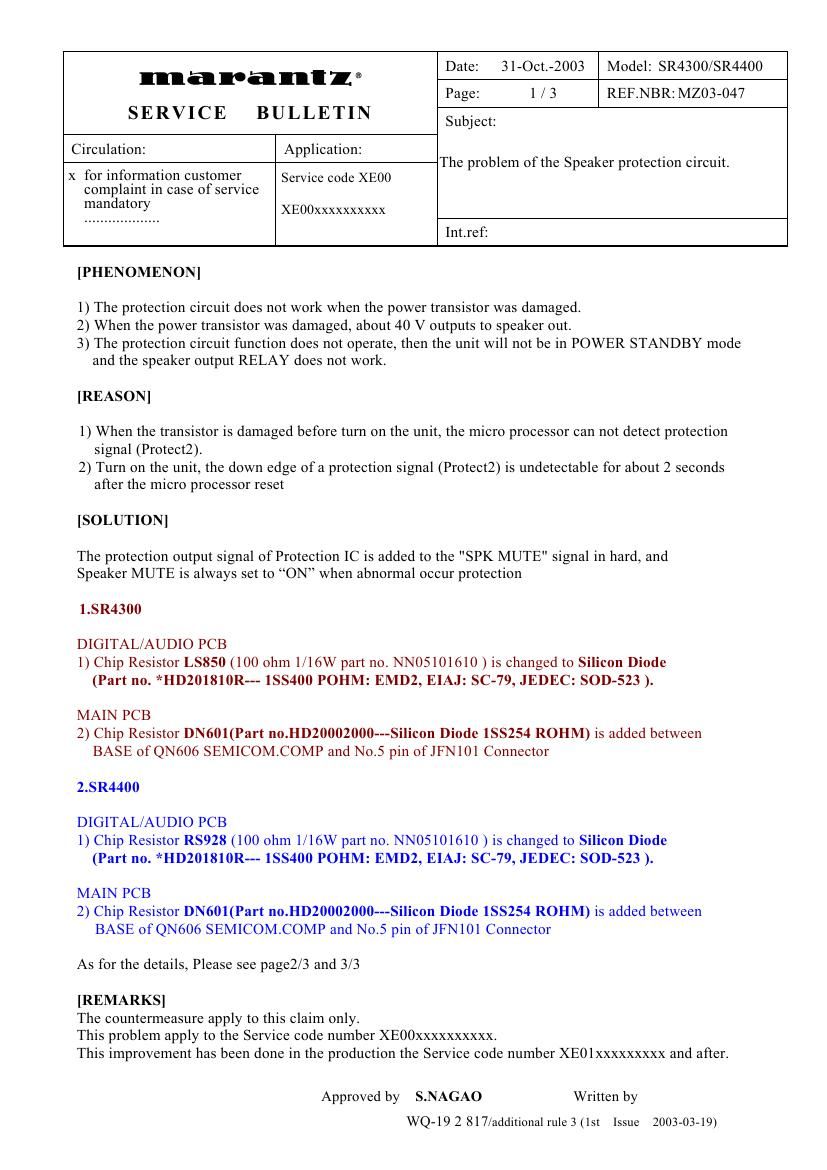

SR4300/SR4400 SERVICE BULLETIN (REF.NBR:MZ03-047) page2/3
SR4300
LS850 is changed to
Part no.
*HD201810R
Caution
JFS08 (FPC CONNECTOR) side is
CATHODE
DIGITAL/AUDIO PCB
No.5 pin of JFN101
BASE of QN606
Adhesives :
SC608LVZ (Sony Chemical Corp. -“ Self-extinguishing adhesive) or the equivalent
Insulation tube is used
MAIN PCB
DN601
Part no. HD20002000
CATHODE MARK
Page 2
Approved by S.NAGAO Written by
WQ-19 2 817
/additional rule 3 (1st Issue 2003-03-19)
SR4300/SR4400 SERVICE BULLETIN (REF.NBR:MZ03-047) page3/3
SR4400
CATHODE MARK
RS928 is changed to
Part no. *HD201810R
Caution
JFS08 (FPC CONNECTOR) side is
CATHODE
DIGITAL/AUDIO PCB
No.5 pin of JFN101
BASE of QN606
Adhesives :
SC608LVZ (Sony Chemical Corp. -“ Self-extinguishing adhesive) or the equivalent
Insulation tube is used
MAIN PCB
DN601
Part no. HD20002000
