Marantz SD 585 Owners Manual

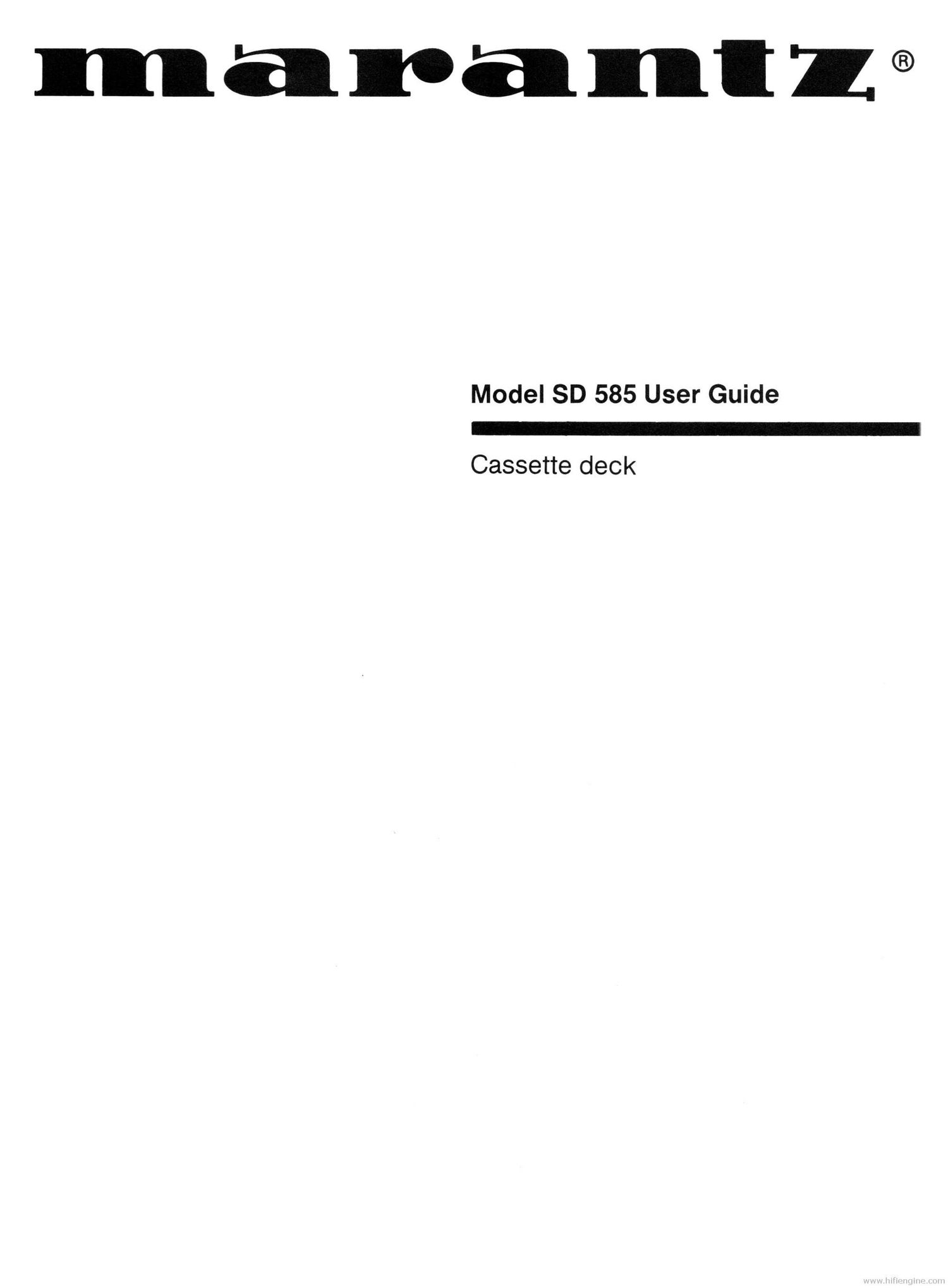

Page 1

maranll®

Model SD 585 User Guide
-

Cassette deck

Page 2

English

EQUIPMENT MAINS WORKING SETTING

Your Marantz product has been prepared to comply with the
household power and safety requirements that exist in your area.
This product has a four-position voltage selector (110/120/220/
240V) on the rear panel (E,N and T versions only). The voltage
selector has been set according to the third alphabetical letter of
the product serial number, see the table below. Using the table
below, check that the mains working voltage setting on the model
in your possession matches the mains voltage available in your
area. ~

SUFFIX VOLTAGE

E- 220 to 240V AC, 50/60 Hz
N- 220V AC,50/60 Hz

T- 240V AC, 50/60 Hz

MAINS PLUG CONNECTORS FOR EQUIPMENT SOLD IN THE
U.K.

The wires in the mains lead are coloured in accordance with the
following code:

- brown is the live wire
- blue is the neutral wire.

Because the colours of these wires may not correspond with the
terminal identification in your plug, proceed as follows. Connect
the:

- brown wire to the terminal marked L or coloured brown or
red
- blue wire to the terminal marked N or coloured blue or black.

When using a 13A plug conforming to BS1363, use a 3A fuse. For
other plugs, use a 5A or lower rated fuse in the plug, adaptor or
at the distribution board.

COPYRIGHT

Recording and playback of any material may require consent. For
further information, refer to the following:

- Copyright Act 1956

- Dramatic and Musical Performers Act 1958

- Performers Protection Acts 1963 and 1972

- any subsequent statutory enactments and orders.

AC POWER CONNECTION
English: While being IN (OFF, STOP, STAND BY, OFF/SLEEP,
STOP EJECT...) position, the units is not disconnect
from the AC Mains.

Svenska: Observera vid natdrift : l Iage (OFF, STOP, STAND
BY, OFF/SLEEP, STOP EJECT...) ar apparaten ej
electriskt skiljd fran natet

Dansk: l stilling OFF er apparatet stadig forbundet med
lysnettet. Hvis det onkes fuldst ndig afbrudt skal
netledningen tr kkes ud

Suomi: Huom :Virrankytkin on kytketty toisiopuolelle, eika se

kytke laitetta irti sahkoverkosta. Sisaanrakennettu
verkko-osa on kytkettyné sahkbverkkoon aina silloin,
kun pistoke on pistorasiassa

INTRODUCTION

This quick auto reverse double cassette deck is suitable for the
use of ferro, chromium and metal cassettes. The cassettes do not
need to be turned over at the end of the tape: the direction of tape
travel is reversed automatically at the end of the cassette, after
which recording or playback is continued on the other side of the
cassette.

The cassette deck is equipped with the Dolby B and Dolby C NR
(Noise Reduction) system, manufactured under license from
Dolby Laboratories Licensing Corporation.

The word Dolby and the symbol DD are trademarks of Dolby
Laboratories Licensing Corporation.

Recording or copying is only authorised if there is no violation of
copyrights or other rights of third parties.

INSTALLATION

0 After unpacking remove all protective materials.

0 Do not leave the equipment and the cassettes for any length of
time in direct sunlight or other places where high temperatures
can occur, such as in the vicinity of heating apparatus.

0 Do not expose the equipment to humidity or rain.

0 This unit is equipped with microprocessors. Static electricity,
for example, may sometimes cause interference. You can correct
this by switching off the mains switch for 2 minutes.

0 Always place the cassette deck on a horizontal surface.

0 If your cassette deck is placed on or close to other equipment,
hum may sometimes occur. A different position can eliminate the
interference.

CONNECTIONS

Fig. 2

For safety reasons it is necessary to consult your dealer for the

connection of equipment without a recorder connection, 9. g. TVs.

Q) L - OUT and R - OUT line outputs
For connecting the cassette deck to the inputs TAPE1
L+ R IN or TAPE 2 L+ R IN of the amplifier.

L - IN and R - IN line inputs
For connecting the cassette deck to the outputs TAPE1
L + R OUT or TAPE 2 L + R OUT of the amplifier.

({3} Output for synchronised recording.

© Terminal socket for mains lead
For connecting the cassette deck to the mains.
Before connecting the cassette deck to the mains, it is
absolutely essential that you check that the setting of the
voltage selector corresponds with the local mains voltage.
You can change the setting by turning the voltage selector
with a coin.

The type plate is located on the rear of the deck.

CONTROLS AND THEIR FUNCTION

Fig. 1

Q) POWER/STANDBY switch
For switching the whole unit on and off.

@ Cassette holder A

Q) Cassette holder 8

@ EJECT button
For opening the cassette holder @.

Q1) Zero reset button
Pressing this button returns the counter@ to 000. By setting
the counter to 000 at the beginning of the tape and noting the
position at the beginning of your recording, you will later be
able to relocate each recording easily.

(5) TAPE COUNTER (for deck 8 only)
