Extracted text from Marantz SA 17 S 1 Service Bulletin (Ocr-read)
Page 1
Approved by N.Sensui Written by S.NAGAO
WQ-19 2 817
/additional rule 3 (1st Issue 2003-03-19)

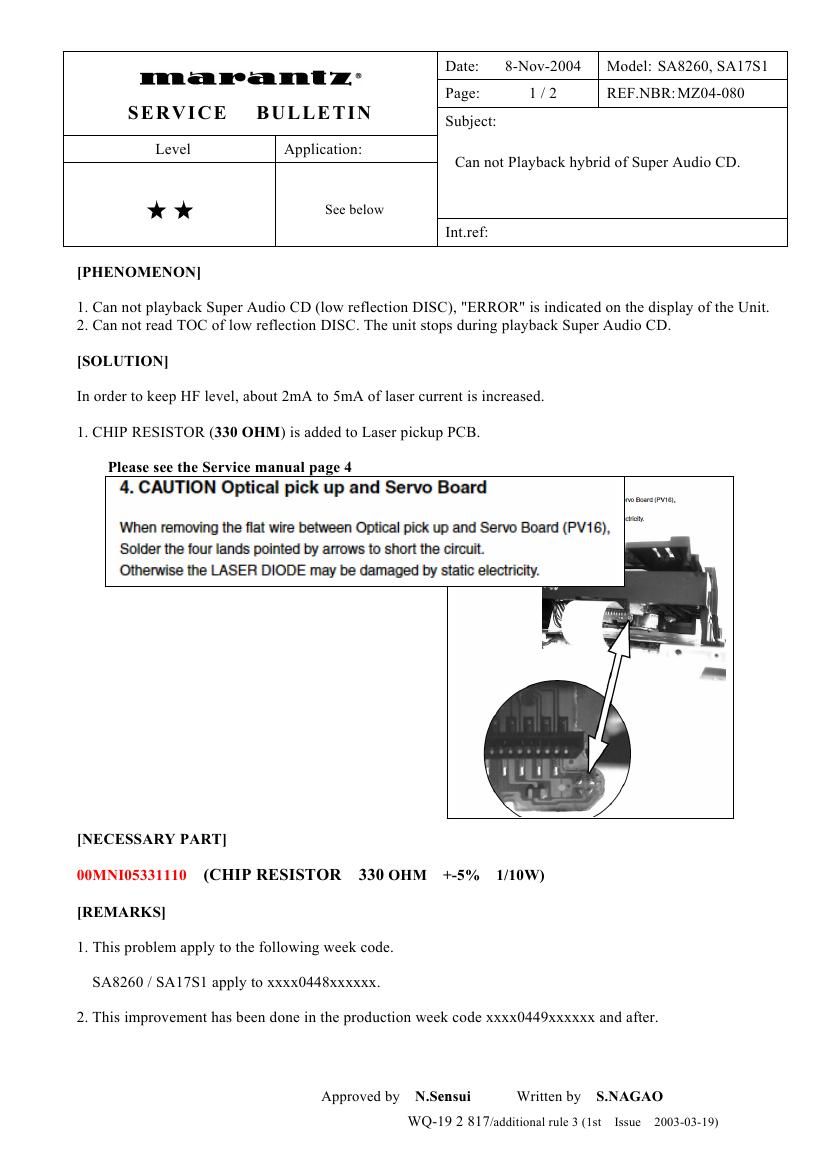

SA8260 / SA17S1 Service Bulletin REF.NBR: MZ04-080 page 2/2
Part no. 00MNI05331110
CHIP RESISTOR
330 OHM +-5% 1/10W
OPU UNIT
R119
100
R
330 VR
4.7K
PD
Vmo d
LD
GN D
Resistor (300 ohm) is put on
Resistor (300 ohm) in piles,
and soldered to them together
