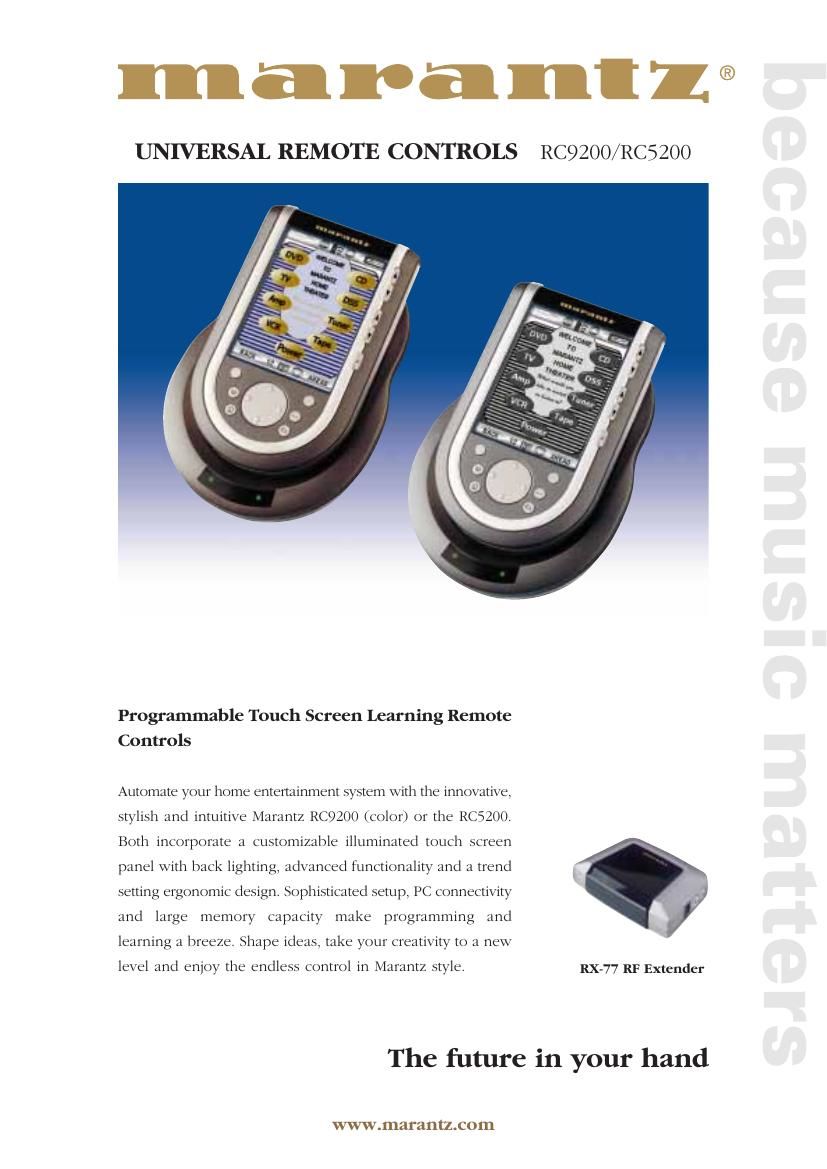

RC9200/RC5200 Remote Controls
Specifications
Hardware Red LED
16 IDs and 4 Chs,
4 Outputs for IR Emitters
Dimensions (W x H x D) 113 x 81 x 30mm
Operating
Temperature 0¡C - 50¡C
Infrared (IR) Operating Distance up to 20m.
Frequency Range: 36kHz - 550kHz
Radio
Frequency (RF) Operating Distance up to 20m.
Frequency Range: 434MHz
Output 4
Accessories AC Power Adapter
IR Emitter x 4
Mounting Kit
Weight 80g.
RX-77 RF Extender
Technology at handMarantz has taken a new bold step forward in remote
control technology with the RC9200 (color) and the
RC5200. The new generation programmable learning
remote controls incorporate an extensive array of user
friendly innovations and improvements, housed in a
sophisticated, ergonomic design. All of your existing
remotes can be replaced with one easy-to-use, feature-
packed remote for complete and customized control of
your entire Home Entertainment system. Both models are
IR/RF- capable while the RC9200 incorporates a high-
performance 33MHz Motorola Dragonball MC68328
processor for sophisticated and fast control capabilities.
The touch screen wayThe RC9200 features a large, full-color display (RC5200:
B&W), with an adjustable contrast dial for personal
preference. The units can be turned on with the manual
backlight button at the side, while an integrated motion
sensor will activate the LCD screen if it is lifted under an
angle of 50¡ or more. They also Òwake upÓ either by
pressing the hard buttons or by tapping the screen. The
effective resolution is 320 by 240 pixels. Along with the
high contrast background (RC9200: paper white) the
screens are extremely easy to read. Each touch screen
panel is treated with an excellent anti-glare coating for
significantly reduced reflection and optimized readability
under different viewing angles. All the hard buttons, 16 in
total, are intuitively placed for instant access and
navigation between screens. The RC9200 displays 256
breathtaking, high-resolution colors and has 8 MB of non
volatile, flash memory (RC5200: B&W, 2 MB Memory).
Customise and createThe RC9200 and RC5200 contain programmable instant
surf buttons that call up any channel at the touch of a
button, the ability to import channel icons and personal-
ized graphics. Furthermore they come pre-programmed
to operate a wide variety of Marantz audio and video
products. In addition, they feature up to 56kHz carrier
frequency learning capability to operate the most popular
brands of audio/video equipment.
The future in mindPersonalized setup can be further customized via a PC
interface and Windows PC programming software that
enables users to import custom animations, channel icons
and even their own graphics and photos. The new
generation Marantz remote controls are future proof and
allow you to update the software, which is downloadable
at www.marantz.com.
Features
¥ Pre-Programmed Marantz Codes ¥ Auto-On (Pickup Sensor, Angle > 50¡)
¥ High Resolution (320 x 240) Pixels ¥
Editable Macros (255 Commands per Macro) LCD Display ¥ Limitless Number of Devices,
¥ Adjustable Brightness Macros, Panels and Buttons
¥ Large Touch Screen ¥ Setup Protection
¥ IR/RF Transmission Capability ¥ Adjustable Timer for Sleep Mode
¥ 14 Programmable Direct-Access Buttons ¥ Independent, Adjustable Back
¥ Backlighting for LCD and Light Timer, for Hard Buttons
Direct Access Buttons and Screen
¥ Infrared Sending and Learning Eyes ¥ Mode, Macro and Device
¥ 3-Wire (RS232) Serial Port Connector Icons can be Activated/Deactivated
Specifications RC9200 RC5200 (differentiation)
LCD Screen cm (W x H) 5.6 x 7.3 (9.4 Diagonal) 6.1 x 7.9 (9.9 Diagonal)
LCD Resolution 320 x 240 Pixels, 320 x 240 Pixels,
256 Colors 4 Gray Scales
Backlight Paper White (LCD) Green
Green LED
(Up/Down, CH+/-, Mute)
Memory 8 MB 2 MB
Non Volatile Flash,
512 K SRAM
IR Operating Distance 10 Meters
Carrier Frequency Up To 56kHz
Learning Distance 2.5cm upto 100cm
RF Operating Distance 20m
Carrier Frequency 434 MHz, ± 100kHz
Battery Life (With Most Users) Approximately 3-4 Months
Operating Temperature 0¡C to 50¡C
Accessories RC9200 RC5200
Recharging Dock Station y y
RS232 Cable for PC Connection y y
NiMH 4.8 V Rechargeable Battery y y
AC to DC Power Adapter y y
RX-77RF Extender y Optional
General RC9200 RC5200
Color Gunmetal/Bronze Charcoal Grey/Silver
Dimensions (W x H x D) 89 x 149 x 38 mm 89 x 149 x 38 mm
Weight (With Batteries) 270g. 270g.
Weight (Without Batteries) 213g. 213g.
