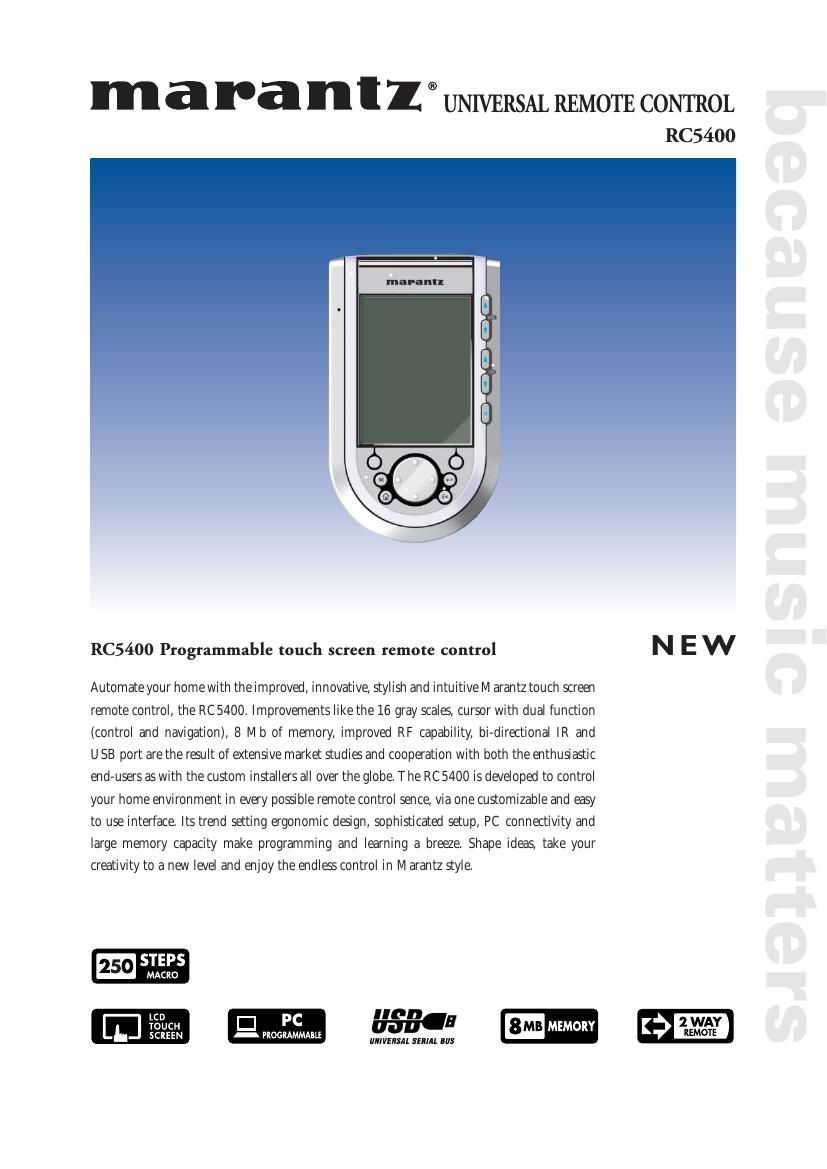

Page 1
The future in your hand
Marantz has taken a new bold step forward in remote control
technology with the RC5400. The new generation
programmable learning remote controls incorporate an extensive
array of user friendly innovations and improvements, housed in
a sophisticated, ergonomic design. All of your existing remotes
can be replaced with one easy-to-use, feature-packed remote for
complete and customized control of your entire Home
Entertainment system. This model is IR/RF-capable and
incorporates a new high-performance processor for sophisticated
and fast control capabilities.
The touch screen way
The RC5400 has an improved 320x240 pixel 3.8" display with
16 gray scales that allows you to create much more realistic
buttons and pictures. The bright blue backlight that lights up
both the LCD and all hard buttons ensures perfect operability in
the dark. The built-in pick-up sensor will switch the backlight
on automatically. The digital contrast adjustment is always
directly available to adjust the LCD-contrast similar to the
possibilities already available on the RC3200. The units can be
turned on with the manual backlight button at the side, while
an integrated motion sensor will activate the LCD screen if it is
lifted under an angle of 50° or more. They also wakes up
either by pressing the hard buttons or by tapping the screen.
Each touch screen panel is treated with an excellent anti-glare
coating for significantly reduced reflection and optimized
readability under different viewing angles. All the hard buttons,
18 in total, are intuitively placed for instant access and
navigation between screens. 15 out of these 18 buttons are
programmable for a product specific or global function. The five
hard buttons at the right side of the panel are back lit with blue
El foil. The RC5400 has an increased memory of 8 Mb of non
volatile, flash memory. Now you will never run out of memory.
Direct access buttons
A total of 18 hard buttons are available to perform basic
functions: The channel up/down, mute, volume up/down
buttons are conveniently located at the right side of the LCD.
The 4-direction cursor key can both be used for controlling
devices by infrared or navigating through the devices and pages
on the LCD. The four buttons are freely programmable. Of the
six buttons around the cursor five can be freely assigned and
labeled. User customizable hard buttons total up to 15: nearlyall of them, except for the top right hard button below the
screen (a Function button) and the page up/down keys on the
side. Also located on the side is a backlight button.
Customize and create
The RC5400 will be released with the new Touch Screen Setup
editing tool for the RC5400 and RC9400 (it won't work on any
other model remote). This program will let you dive headfirst in
the RC5400 remote control´s brand new features. We're talking
16 grayshades, bitmap transparencies, nearly full screen editing,
multiple concurrently open files and a host of other new
goodies. But don´t just sit there reading this, download it as
soon as possible.
The RC5400 contains programmable instant surf buttons that
call up any channel at the touch of a button, the ability to
import channel icons and personalized graphics. Furthermore
they come pre-programmed to operate a wide variety of Marantz
audio and video products. In addition, they features up to
56kHz (and 455kHz) carrier frequency learning capability to
operate the most popular brands of audio/video equipment.
The future in mind
Personalized setup can be further customized via a PC interface
and Windows PC programming software that enables users to
import custom animations, channel icons and even their own
graphics and photos. The software package Remote Control
Setup includes new functionality to help you create your
configuration file, now called PCF: multi document, multi level
(standard and advanced), transparency, multiple jumps in
macro, full screen configurability, assignment of system
functions to buttons and of course import CCF-files. We made
it even more easy to hook this beauty to your PC via an USB
connection. The new generation Marantz remote controls are
future proof and allow you to update the software, which is
downloadable at: www.marantz.com.
Technological glossary:
-– Large fully customizable touch screen with improved
readability and touch sensitivity
-– Allows you to create much more realistic buttons and pictures
-– Provides a status feedback possibility when used in
combination with high-end Marantz receivers
-– Using the pre-programmed hard keys provides fast access to
IR commands without window scrolling
-– More easy to use with a multitude of extra possibilities to
ensure maximum personalization of every screen on your
remote
-– Unlimited design possibilities through large internal memory
-– Very flexible; RF even makes it possible to transmit through a
wall
-– Fully customisable graphical remote layout lets you adapt the
remote to each individual system setup
-– Easy to connect to any PC with true plug and play editability
Benefits: Features:
-– High contrast 3.8" LCD touch screen
-– 16 Greyscales
-– 2-Way IR
-– 15 Programmable Direct-Access Buttons
-– Improved Touch Screen Setup software
-– 8 Mb of non-volatile flash memory
-– IR/RF Transmission Capability
-– Full screen editability
-– USB connectivity
Page 2
Ease of use
Many operational changes and improvements have also been
made. For instance, there are now three ways to navigate the
RC5400. The first method is via two on-screen buttons.
One presents a device overview, while the other presents an
overview of all pages under the device. The second method is by
the page up/down hard buttons on the side, combined with
device left/right buttons on-screen. Finally, the 4-way cursor pad
can also be configured to select pages and devices, with a special
toggle hard button that switches between this mode and normal
device IR commands.
Functional changes include full screen-configurability
(system items can be added and removed), multiple page jumps,
plus buttons with system function assignments (these are
remote-specific operations, such as page history, backlight, etc.).
Software improvements include conditional macros, new design
objects such as tabs and listboxes, adjustable IR transmission
times and more!
Optional: RX-77 RF extender
By default, the RC5400 uses infrared (IR) to operate the
programmed AV components. This means that you have to
point the remote towards the device you're operating. Normally,
IR signals have an
operating distance of
maximum 10 meter.
You can choose to
operate devices using
radio frequency (RF)
signals instead of IR
signals. Depending on
the circumstances,
RF signals have an
operating distance up
to approximately 30 meter in house and can, unlike IR signals,
go through obstacles like furniture and walls. The RF signals
sent out by the RC5400 are picked up by the RF extender
RX-77. The RF extender translates the RF signals into the
original IR signals and sends the IR signals to the appropriate
component. The combination of the RC5400 with the optional
RX-77 provide a great solution for an wireless multiroom or
hidden system control.
PC requirements:
- Windows 98/ME,Windows NT4.0/2000, Windows XP
- 16 MB of RAM
- 25 MB of free hard disk space
- Free USB port
-– User manual
-– Recharging docking station
-– USB cable for PC connection
-– AC to DC power adapter
-– NiMH 4,8V rechargeable batteries
Bypacked Accessories
