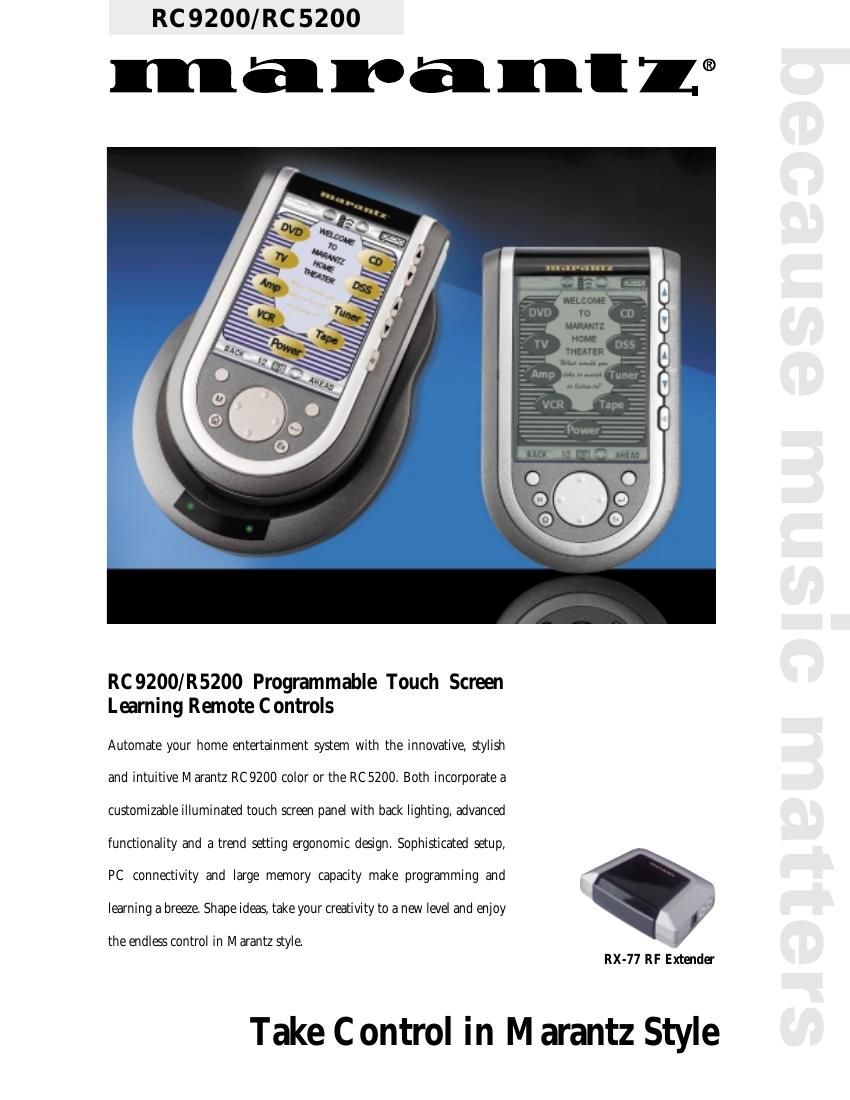

RC9200/RC5200 REMOTE CONTROLS
Features
- Pre-Programmed Marantz Codes- Auto-On (Pickup Sensor, Angle > 50°)
- High Resolution (320 x 240) Pixels- Editable Macros (255 Commands per Macro)
LCD Display- Limitless Number of Devices,
- Adjustable Brightness Macros, Panels and Buttons
- Large Touch Screen- Setup Protection
- IR/RF Transmission Capability- Adjustable Timer for Sleep Mode
- 14 Programmable Direct-Access Buttons- Independent, Adjustable Back
- Backlighting for LCD and Light Timer, for Hard Buttons
Direct Access Buttons and Screen
- Infrared Sending and Learning Eyes- Mode, Macro and Device
- 3-Wire (RS232) Serial Port Connector Icons can be Activated/Deactivated
Specifications RC9200 RC5200 (differentiation)
Accessories RC9200 RC5200
Recharging Dock Station Y Y
RS232 Cable for PC Connection Y Y
NiMH 4.8 V Rechargeable Battery Y Y
AC to DC Power Adapter Y Y
RX-77RF Extender Y Optional
General RC9200 RC5200
LCD Screen Inches (W x H)
LCD Resolution
Backlight
Memory
IR Operating Distance
Carrier Frequency
Learning Distance
RF Operating Distance
Carrier Frequency
Battery Life (With Most Users)
Operating Temperature2.2" x 2.9" (3.7" Diagonal)
320 x 240 Pixels,
256 Colors
Paper White (LCD)
Green LED
(Up/Down, CH+/-, Mute)
8 MB
Non Volatile Flash,
512 K SRAM
33 Feet (10 Meters)
Up To 56kHz, 455kHz
1 Inch up to 3 Feet
66 Feet
418 MHz, ± 100kHz
Approximately 3-4 Months
32°F to 122°F2.4" x 3.1" (3.9" Diagonal)
320 x 240 Pixels,
4 Gray Scales
Green
2 MB
Technology at Hand
Marantz has taken a new bold step forward in remote control
technology with the RC9200 color and the RC5200. The new
generation programmable learning remote controls
incorporate an extensive array of user friendly innovations and
improvements, housed in a sophisticated, ergonomic design.
All of your existing remotes can be replaced with one easy-to-
use, feature-packed remote for complete and customized
control of your entire Home Entertainment system. Both
models are IR/RF- capable while the RC9200 incorporates a
high-performance 33MHz Motorola Dragonball MC68328
processor for sophisticated and fast control capabilities.
The Touch Screen Way
The RC9200 features a large, full-color display (RC5200:
B&W), with a adjustable contrast dial for personal preference.
The units can be turned on with the manual backlight button
at the side, while an integrated motion sensor will activate the
LCD screen if it is lifted under an angle of 50° or more. They
also wakes up either by pressing the hard buttons or by
tapping the screen. The effective resolution is 320 by 240
pixels. Along with the high contrast background (RC9200:
paper white) the screens are extremely easy to read. The highly
aesthetic displays are perfectly legible under almost all lighting
conditions. Each touch screen panel is treated with an
excellent anti-glare coating for significantly reduced reflection
and optimized readability under different viewing angles. All
the hard buttons, 16 in total, are intuitively placed for instant
access and navigation between screens. 14 out of these 16
buttons are programmable for a product specific or global
function. The five hard buttons at the right side of the panel
are back lit with green LEDs. The RC9200 displays 256
breathtaking, high-resolution colors and has 8 MB of non
volatile, flash memory (RC5200: B&W, 2 MB Memory).
Customise and Create
The RC9200 and RC5200 contain programmable instant surf
buttons that call up any channel at the touch of a button, the
ability to import channel icons and personalized graphics.
Furthermore they come pre-programmed to operate a wide
variety of Marantz audio and video products. In addition, they
features up to 56kHz (and 455kHz) carrier frequency learning
capability to operate the most popular brands of audio/video
equipment.
The Future in Mind
Personalized setup can be further customized via a PC
interface and Windows
®PC programming software that
enables users to import custom animations, channel icons and
even their own graphics and photos. The new generation
Marantz remote controls are future proof and allow you to
update the software, which is downloadable at
www.marantz.com.
RX-77 RF EXTENDER
Specifications
Hardware
Dimensions
Operating
Temperature
Infrared (IR)
Radio
Frequency (RF)
Dual IR
Emitters
Accessories Red LED
16 IDs and 4 Chs, 4 Outputs for IR Emitters
Inches (W x H x D) 4
1/2"x 3 3/16"x 1 3/16"
32°F - 122°F
Operating Distance up to 16 ft.
Frequency Range: 36kHz - 550kHz
Operating Distance up to 100 ft.
Frequency Range: 418MHz
Number of IR Emitters,
up to 8
AC Power Adapter
IR Emitter x 4
Mounting KitColor
Dimensions Inch (W x H x D)
Weight (With Batteries)
Weight (Without Batteries)Gunmetal/Bronze
3
1/2"x 5 15/16"x 1 1/2"
9.5 oz.
7.5 oz.Charcoal Grey/Silver
3 1/2"x 5 15/16"x 1 1/2"
9.5 oz.
7.5 oz.
