D&M Professional1100 Maplewood Drive Itasca, Illinois 60143
Tel: 630.741.0330 Fax: 630.741.0652www.d mpro.com
Specifications
GeneralSystem Solid state recorder
Number of Channels2 (stereo), 1 (mono)
Usable Media CF memory cards, microdrives
Recording and Media Methods
.mp2MPEG1 layer II compression
.mp3 MPEG1 layer III compression
.mp3 MPEG2 layer III compression*
*for all half sample ratesPCM16 bit linear PCM
Power Consumption
Recording/Playback 5.2 W
Charging 12 W
Standby (Battery Driven) 2.2 mW
Headphone Output Power20 mW/32 ohms
Speaker Output Power 100 mW
Phantom Power 48 V, 10 mA
Dimensions (Maximum)Width 10.4 in. (264 mm)
Height2 in. (55 mm)
Depth7.3 in. (185 mm)
Weight 2 lbs., 14 oz. (1.3 Kg)
AudioRecording Bit rate (Selectable)
MP2 Stereo 384, 256, 192, 128, 96, 64 kbps
MP2 Mono 192, 128, 96, 64, 48, 32 kbpsMP3 Stereo320, 256, 160, 128, 80, 64 kbps
MP3 Mono 160, 128, 80, 64, 40, 32 kbps
Sampling Frequency Analog48, 44.1, 32, 24*, 22.050*, 16* kHz
*except MP2 Digital 48, 44.1 kHz
Frequency Response (PCM 44.1 kHz) 20,000 Hz ( 0.5 dB)
Signal to Noise Ratio IEC A Weighted LINE 86 dB
MIC 65 dB
Total Harmonic Distortion at
0 VU (PCM)LINE 0.03%
MIC 0.08%
Dynamic Range86 dB
Inputs/OutputsMIC IN L/R
Type XLR (1:GND, 2:HOT, 3:COLD)
Input Sensitivity 1.2 m Vrms/6.5 k ohms
LINE IN L/R
Type RCA jack
Input Sensitivity 300 m Vrms/20 k ohmsLINE OUT L/R
Type RCA jack
Standard Level 2 Vrms max./2 k ohms
DIGITAL IN/OUT
Type RCA jack
Impedance75 ohms
Standard Level 0.5 Vp p
Sampling Frequency 44.1/48 kHz
FormatSPDIF (IEC 958 type II)
Specifications are based on measurement conditions and proper care for the machine, and are
subject to change without notice.

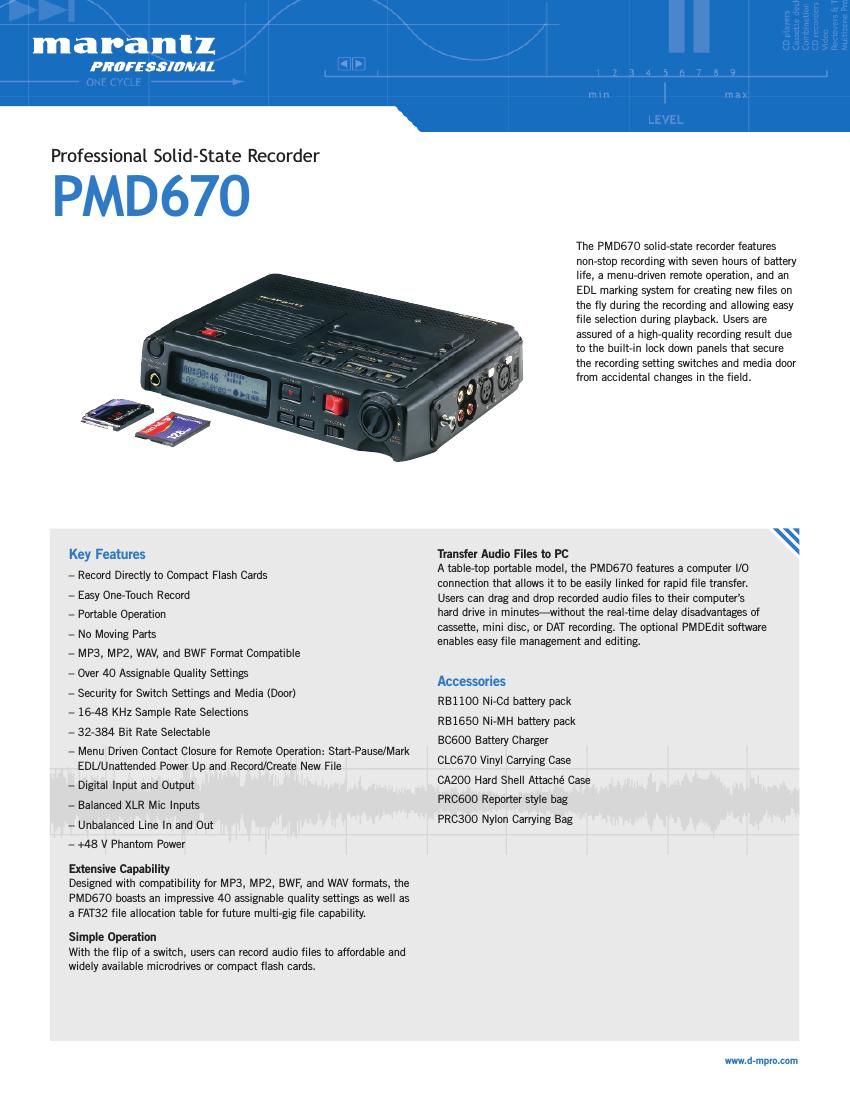

PMD670
