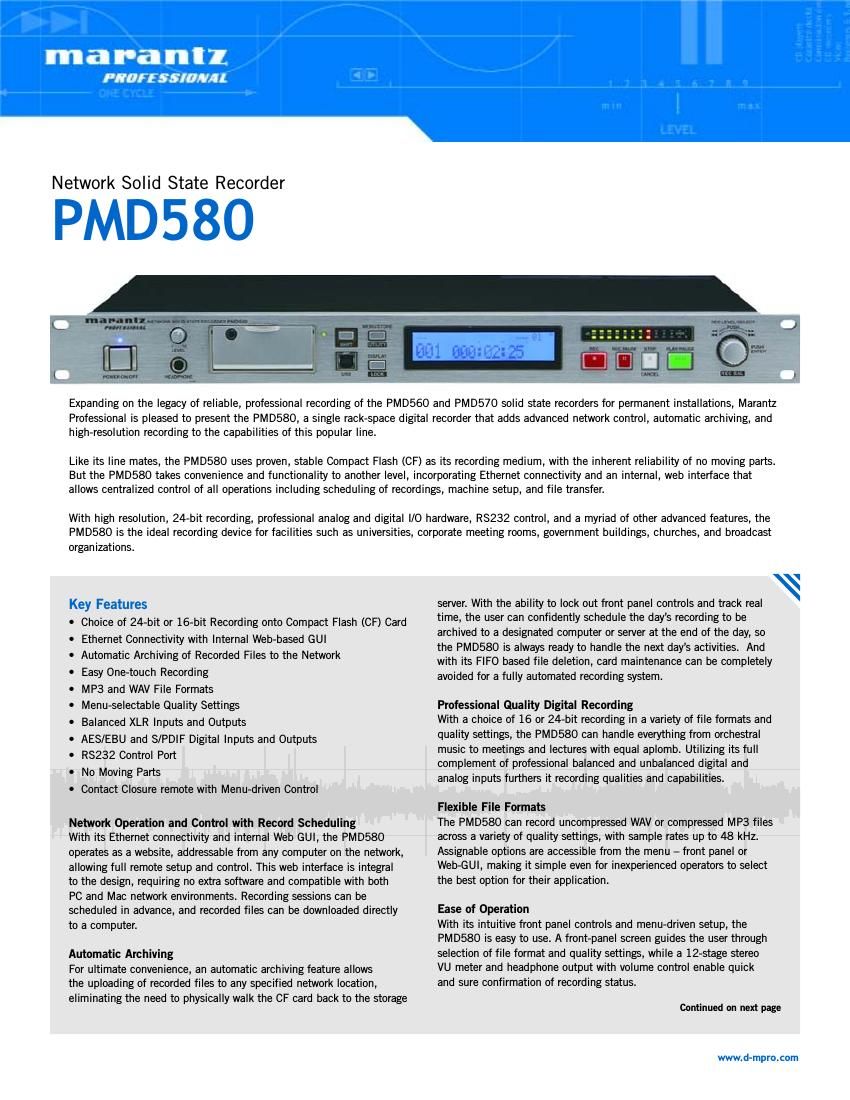

PMD580 Continued from previous page Specifications Digital Audio SystemSystem Solid State Recorder Usable Media CF Memory Cards, Microdrive Cards Recording and Media Methods MP3MPEG1 Layer III Compression WAV 16/24 Bit Linear PCM Recording MP3 Bitrate (Selectable) Mono 160, 128, 96, 64, 32 kbps Stereo 320, 256, 192, 128, 64 kbps Sampling Frequency 44.1/48 kHz Number of Channels 2 (Stereo), 1 (Mono) Audio Frequency Response10 to 20,000 Hz ±1.0 dB Signaltonoise Ratio, IECA Weighted 91 dB Total Harmonic Distortion at 0 VU 0.01% Dynamic Range94 dB InputsBalanced Input Type XLR (1:GND, 2:HOT, 3:COLD) Input Sensitivity+4 dBu/20dBu/24 kohms Unbalanced Input Type RCA Jack Input Sensitivity500 mVrms/22 kohms Balanced Digital Input TypeXLR (1:GND, 2:HOT, 3:COLD) Sampling Frequency 44.1/48 kHz FormatAES/EBU or SPDIF (IEC 958 Type II) Unbalanced Digital Input TypeRCA Jack Input Impedance 75 kohms Standard Input Level 0.5 Vpp Sampling Frequency44.1/48 kHz Format AES/EBU or SPDIF (IEC 958 Type II) OutputsBalanced Output Type XLR (1:GND, 2:HOT, 3:COLD) Level+18 dBu (+4 dBu Reference)/600 kohms Unbalanced Output Type RCA Jack Standard Level2 Vrms (+4 dBu Reference)/10 kohmsBalanced Digital Output Type XLR (1:GND, 2:HOT, 3:COLD) Output Impedance 110 ohms Standard Output Level 3.5 Vpp Format AES/EBU or SPDIF (IEC 958 Type II) Unbalanced Digital Output TypeRCA Jack Output Impedance 75 ohms Standard Output Level 0.5 Vpp Sampling Frequency44.1/48 kHz Format AES/EBU or SPDIF (IEC 958 Type II) LAN InterfaceFormat 10BaseT/100BaseTX Transmission Rate10/100 Mbps Connector8pin RJ45 GeneralPower Requirements U.S. ModelAC 120 V 60 Hz European Model AC100 240 V 50/60 Hz Power Consumption 26 W Environmental Conditions Operational Temperature 535 °C (4195 °F) Operational Humidity 25 85% (No Condensation) Storage Temperature -“20 60 °C (4 140 °F) Headphone Output Power18 mW+ 18 mW/32 ohms Dimensions Width 483 mm (19.0") Height 44 mm (1.7") Depth 344 mm (13.5") Weight 3.7 kg (8.2 lbs) Included AccessoriesPower Cord (for U.S.) 1 Power Cord (for Europe)2 USB Cable1 Audio Cable2 CF Door Screw 2 Retainer1 User Guide 1 CDROM 1 Customer Registration Document (Only for U.S.) 1 * Specifications are subject to change without notice. D&M Professional 1100 Maplewood Drive Itasca, Illinois 60143 Tel: 630.741.0330 Fax: 630.741.0652 www.dmpro.com System Compatibility With full professional inputs and outputs, both analog and digital, the PMD580 integrates easily into any system. Analog I/O includes both balanced XLR and unbalanced RCA connections, while digital capabilities include both AES/EBU and S/PDIF inputs and outputs. Beyond that, an RS232C port enables remote control in Crestron and AMX systems, while an Ethernet connection makes the PMD580 a fullfledged network device for both acquisition and playback. Convenience Features The PMD580 includes numerous functional recording and editing features. Files can be marked and divided either manually while recording, as well as automatically in predefined increments, making it easier to sort through hours of recorded materials. Whether used manually, via RS232 control or via its IP network interface, the PMD580 offers both comprehensive recording capability and ease of operation, making it the ultimate solid state recorder for the installation market.
