Marantz PM 52 Service Manual

Page 1

S e rv i 69 f I 74 PM52/ooa/o1B/023

loze/oss/om

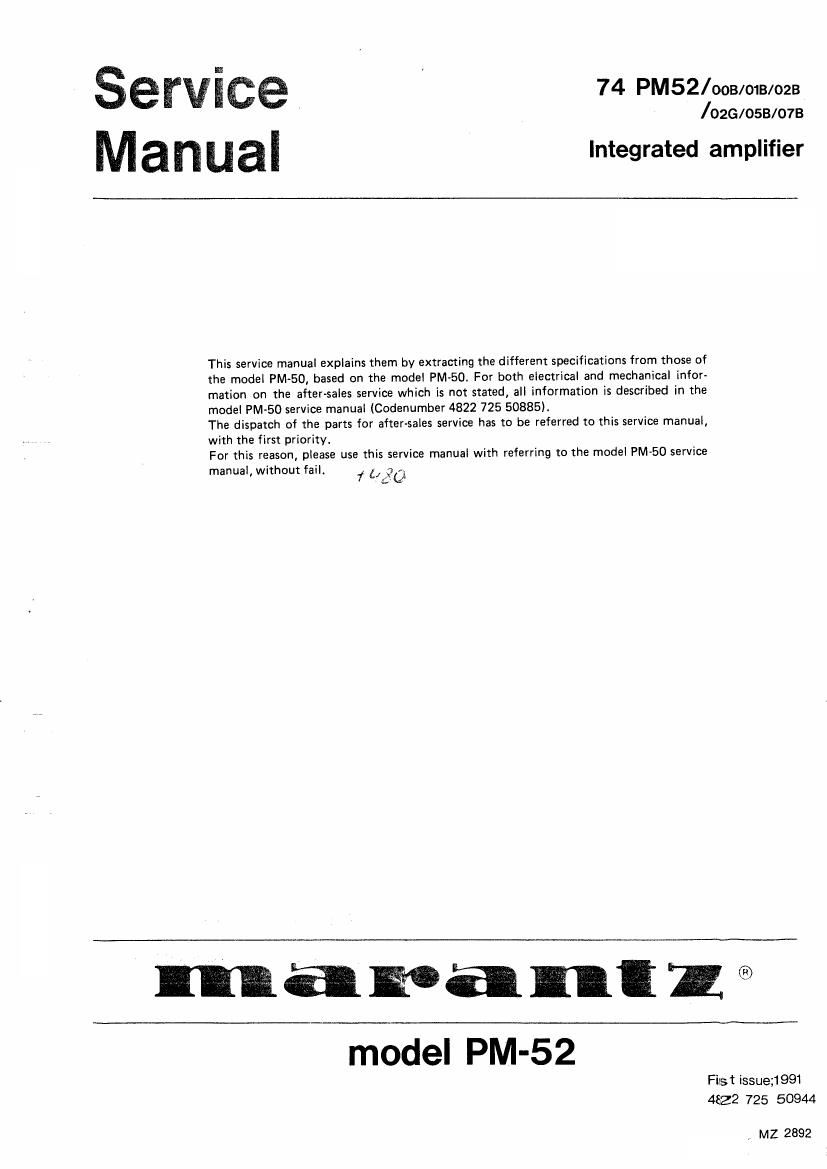

Manual integrated amplifier

This service manual explains them by extracting the different specifications from those of
the model PM-50, based on the model PM-50. For both electrical and mechanical infor-
mation on the after-sales service which is not stated, all information is described in the
model PM-SO service manual (Codenumber 4822 725 50885).

The dispatch of the parts for after-sales service has to be referred to this service manual,
with the first priority.

For this reason, please use this service manual with referring to the model PM-50 service
manual, wrthout fail. f [15:0

mama! z
model PM-52

Fist issue;1991
4822 725 50944

M2 2892
