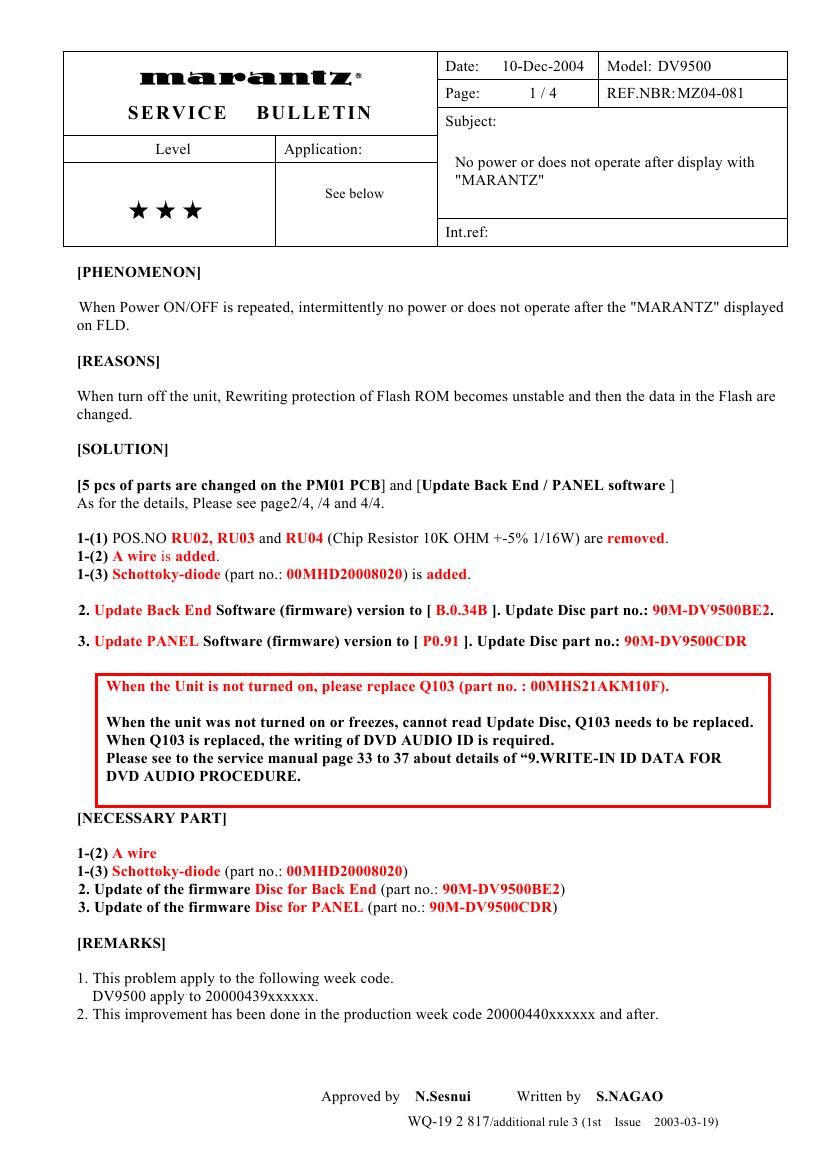

DV9500 Service Bulletin REF.NBR: MZ04-081 page 2/4 1-(1) Remove RU02, RU03, RU04 PM01 PCB RU04 RU03 RU02

Page 2

DV9500 Service Bulletin REF.NBR: MZ04-081 page 3/4 1-(2) Add a wire. 1-(3) Add a Schottoky-DIODE (part no.: 00MHD20008020) 1. Add Schottoky-DIODE and Insulation Tube. 2. Connect a wire to No.4 pin of QU03 Tube Connect a wire to this Test point (No.12 pin of Q103) WIRE UL1007 AWG30 Yellow About 140mm Adhesives Three places SC608LVZ (Sony Chemical Corp. -“ Self-extinguishing adhesive) or the equivalent.
