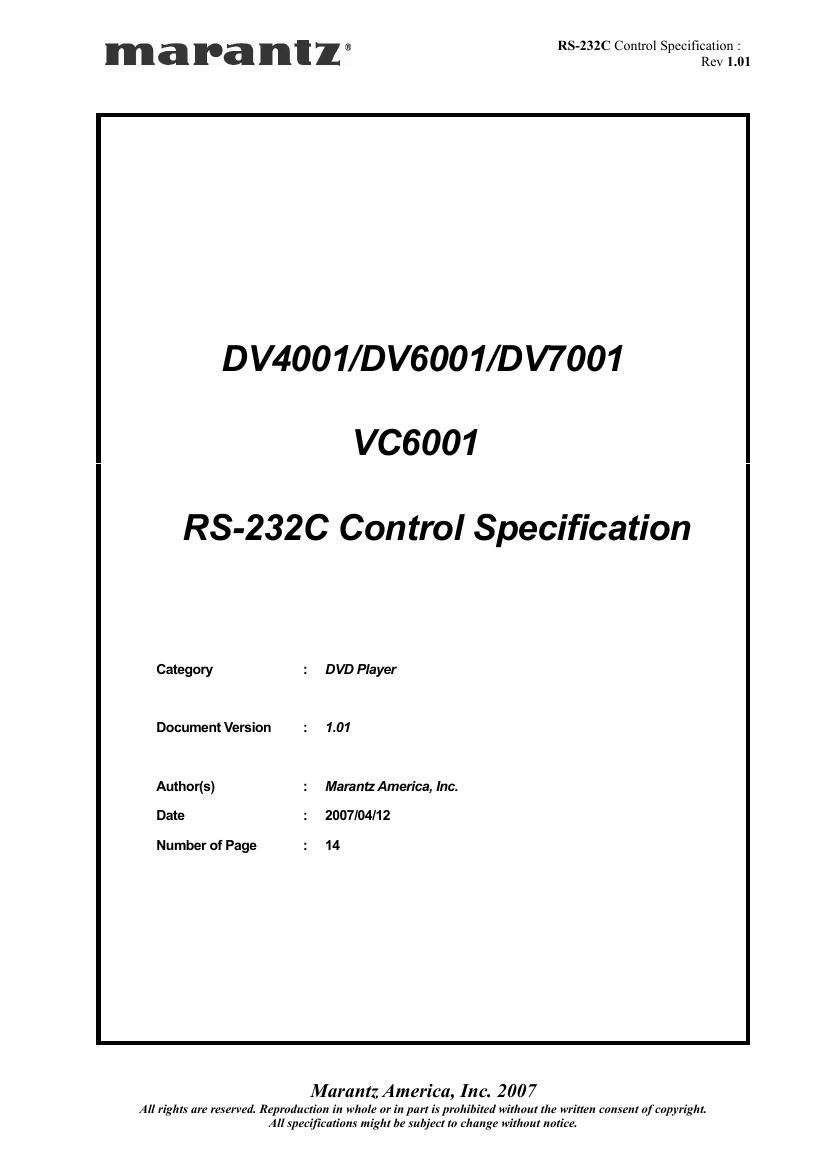

Marantz DV 4001 DV 6001 DV 7001 VC 6001 RS 232C Control Specification

Extracted text from Marantz DV 4001 DV 6001 DV 7001 VC 6001 RS 232C Control Specification (Ocr-read)


Page 1

DV4001/DV6001/DV7001/VC6001 RS-232C Control Specification Page: 2 / 14 Document Version [1.01] Company Restricted Table of Contents 1. Introduction ........................................................................\ .................................................................................... 3 1-1. Purpose ........................................................................\ .................................................................................... 3 1-2. Scope...................................................................\ ............................................................................................. 3 1-3. Abbreviations ........................................................................\ ........................................................................... 3 2. Global Description ........................................................................\ ..................................... ................................... 3 2-1. Overview......................................................................\ ..................................................................................... 3 2-2. Block Diagram........................................................................\ .......................................................................... 3 2-3. Interface connection specification of the product ........................................................................\ ...... ............. 3 2-4. Assumptions and Dependencies ........................................................................\ ........................... ................. 3 3. Detailed Description........................................................................\ ................................... ................................... 4 3-1. Connection format ........................................................................\ ................................................................... 4 3-1-1. Physical connection ........................................................................\ .................................... ..................... 4 3-1-1-1. Data transmission sequence from Host to Slave ........................................................................\ .. 4 3-1-1-2. Data transmission sequence from Slave to Host ........................................................................\ .. 4 3-2. Transmission data format ........................................................................\ ............................... ......................... 5 3-2-1. Transmission data format from Host to Slave ........................................................................\ ............ .... 5 3-2-1-1. Form1: Command ........................................................................\ ......................................... .......... 5 3-2-1-2. Form2: Status request ........................................................................\ .................................. ........... 5 3-2-2. Transmission data format from Slave to Host........................................................................\ ............ .... 5 3-2-2-1. Form1: ACK/NAK ........................................................................\ ......................................... ........... 5 3-2-2-2. Form2: Status answer and Auto status feedback ........................................................................\ .. 5 3-3. The transaction sequences and the regulations ........................................................................\ .......... .......... 6 3-3-1. The transaction sequences ........................................................................\ ............................................. 6 3-3-2. The transaction regulations ........................................................................\ ............................................. 6 3-3-3. Specification of Auto status feedback ........................................................................\ .................. ........... 6 3-3-4. Example of the transactions........................................................................\ ............................ ................ 6 3-3-5. Examples of the handshaking flowchart ........................................................................\ .................. ...... 7 3-3-5-1. Example of successful handshaking ........................................................................\ ......................7 3-3-5-2. Examples of handshaking error ........................................................................\ .............................. 7 4. Recommendations of Command, Status and Layer definition ..................................................................... 8 5. Commands ........................................................................\ ..................................................................................... 9 5-1. Regular Commands ........................................................................\ ....................................... ......................... 9 5-2. Request Commands ........................................................................\ ....................................... ...................... 12 6. Revision history........................................................................\ ....................................... .................................... 14

Page 2

DV4001/DV6001/DV7001/VC6001 RS-232C Control Specification Page: 3 / 14 Document Version [1.01] Company Restricted 1. Introduction 1-1. Purpose This document was written as a reference specification of products that are controled by the host controller. 1-2. Scope This document would be using by software or hardware engineers for production of the product. 1-3. Abbreviations Abbreviation Description 2. Global Description 2-1. Overview A Host controller can control or watch out the product as a Slave very easily via the communication cable. 2-2. Block Diagram * The product connector is using D-SUB 9pin male. * RS232C cable must use D-SUB 9pin female to connect the products. 2-3. Interface connection specification of the product uP Interface Signal name Connection device D-Sub Pin Connecter - N.C. - 1 TxD (output) 2 UAR T RxD (input) RS232C Level shift driver 3 - N.C. - 4 - GND GND 5 - N.C. - 6 - N.C. - 7 - N.C. - 8 - N.C. - 9 RS232C D-SUB (9pin, Male) Stereo Mini Jack (Ø3.5mm) 2-4. Assumptions and Dependencies HOST (Controller) SLAVE (The product) RS232C cable (straight) Connector D-SUB (9pin, male) 53 2
