Technology Evolves.
Specifications
Audio:
Laser pickup Semiconductor laser
Wavelength 655mm/790mm
Frequency response
(Digital audio)
DVD linear sound 96kHz sampling 4Hz to 44kHz
Audio CD 4Hz to 20kHz
Single to noise ratio (digital audio) >115dB
Dynamic range (digital audio) >102dB
Total harmonic distortion (digital audio) >.002%
Digital audio outputs optical x 1, coaxial RCA x 1
Analog audio outputs 200 mV (rms), (1kHz, -20 dB)
Video:
Composite video output 1.0V p-p, 75-„¦
S-Video output (Y) 1.0V p-p, 75-„¦
(C) 0.286V p-p, 75-„¦
Component video output (Y) 1.0V p-p, 75-„¦,
negative sync, Cb/Cr 0.7V p-p, 75-„¦
General:
Power requirements 120V, 60Hz, 15W
Dimensions 3
7/16"H x 18 "W x 12 5/16"D
88mm x 458mm x 313mm
Weight 14.1lbs (6.4 kg)
Note:The specifications and design of this product are
subject to change without notice.
440 Medinah Road ~ Roselle, Illinois 60172 ~ phone 630.307.3100 fax 630.307.2687
Locate an authorized dealer in your area at: www.marantz.com

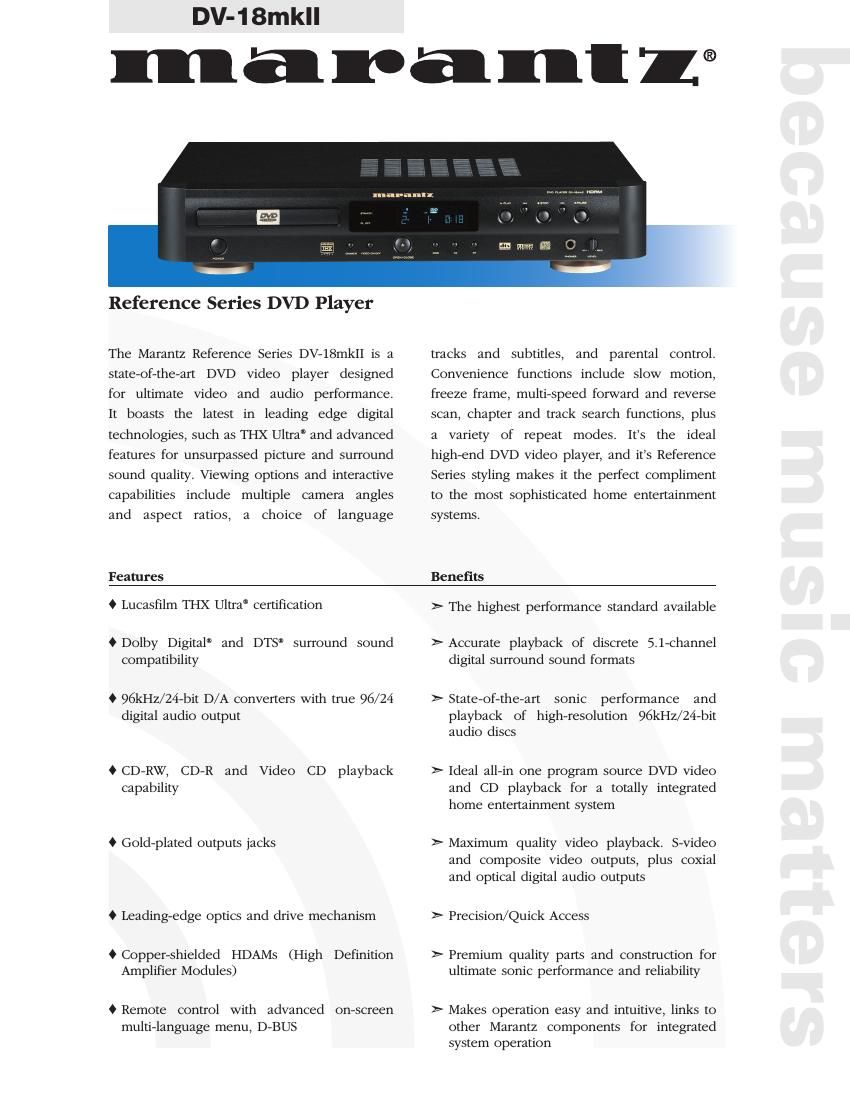

DVD PlayerDV-18mkII
THX EX, THX Ultra, THX Select, THX and Lucasfilm Cinema RE-EQ are registered trademarks of Lucasfilm Ltd. DOLBY, DOLBY DIGITAL,
Dolby Pro Logic, Dolby B, C, S, and Dolby HX Pro, and the double-D symbol are trademarks of Dolby Laboratories Licensing Corp.
DTS is a registered trademark of DTS Technology. DTV is a registered trademark of ATSC Laboratories.
