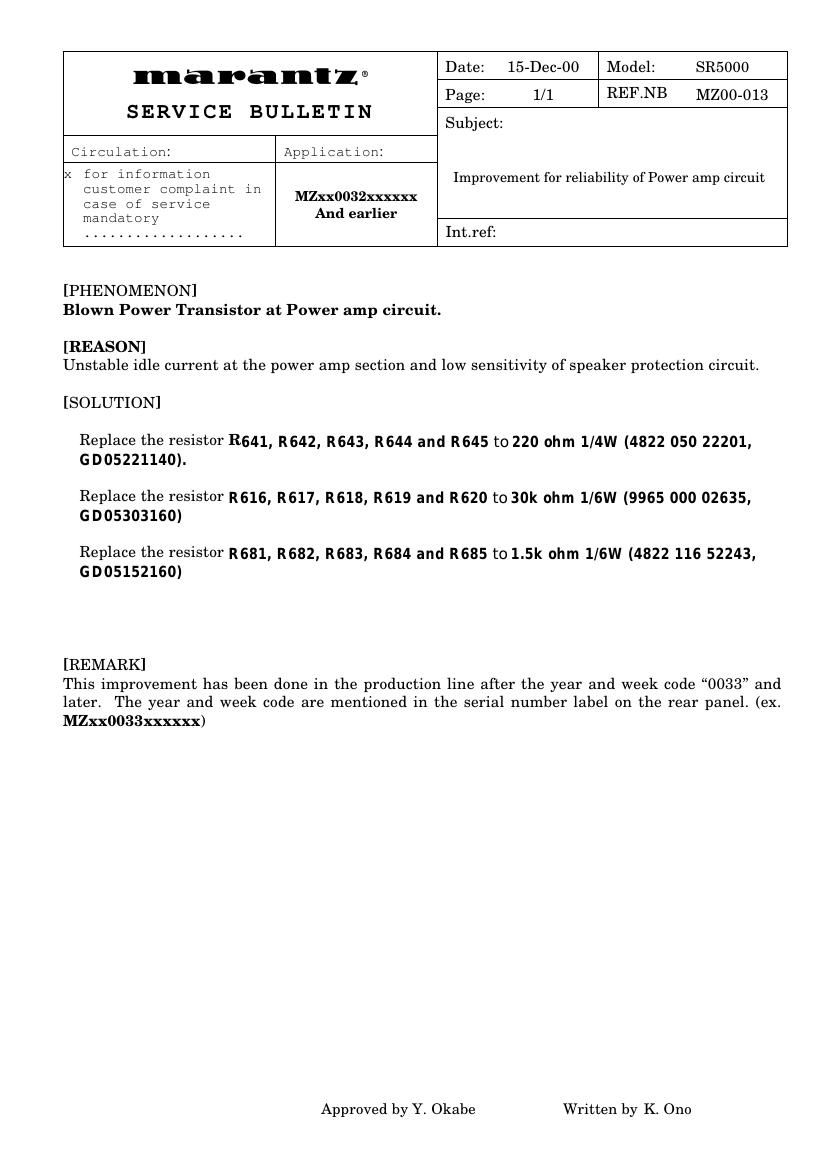

Approved by Y. OkabeýýýýýýýýýýýýýýýWritten by H. Tamuraýýýýýýýý Date: 28-Dec-99 Model SR5000 Page: 1/1 REF.NB MZ99-033 Subject: Circulation:Application: Int.ref: [ PHENOMENON] The picture quality via S-Video out is too poor. [ REASON] The amplitude gain in the video buffer amplifier is not correct. [ SOLUTION] Add resistors 150 W WW W ± ±± ±5% 1/6W ( 4822 116 83868 : GD05151160) to R272, R278, R281 and R282 (470 W) with parallel junction. SERVICE BULLETIN Bad picture quality via S-Video out. x for information customer complaint in case of service mandatory ................... MZxxxxxx 01xxxx | MZxxxxxx 14xxxx
