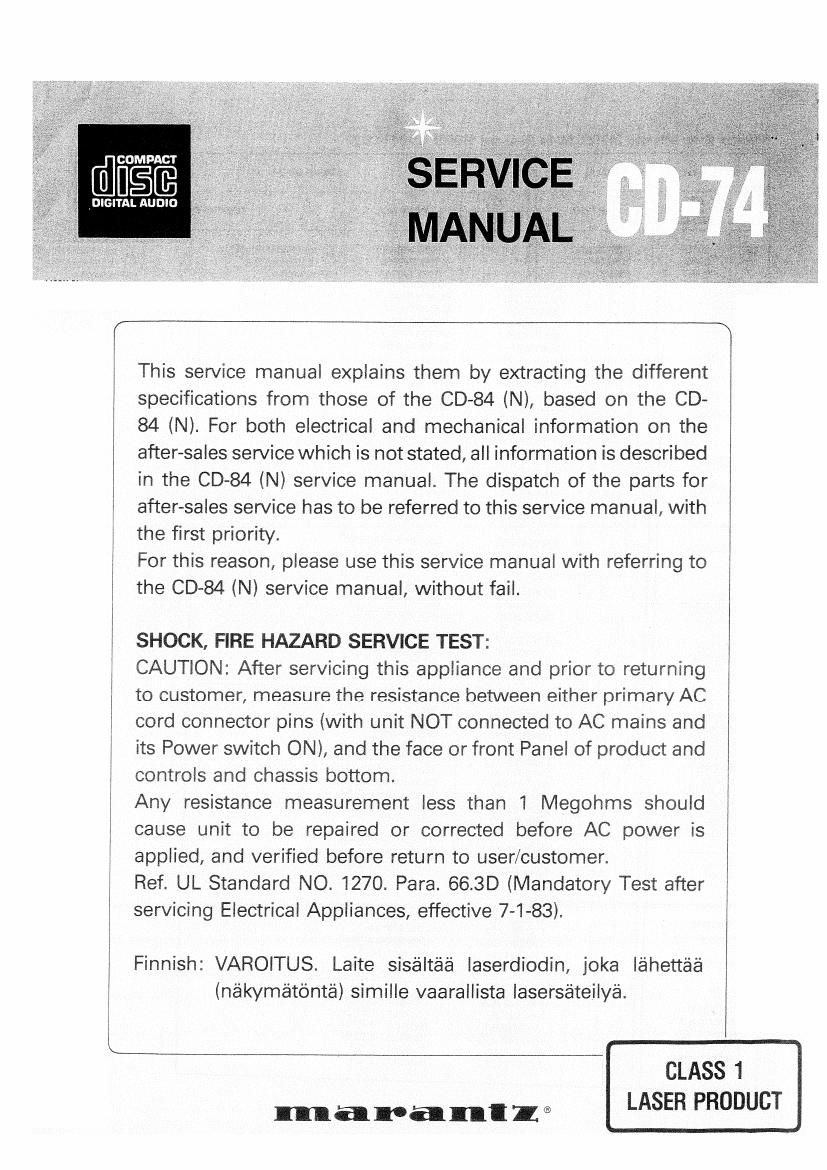

Marantz CD 74 Service Manual

Page 1

i

This service manual explains them by extracting the different
specifications from those of the CD-84 (N), based on the CD-
84 (N). For both electrical and mechanical information on the
after-sales service which is not stated, all information is described
in the (SD-84 (N) service manual. The dispatch of the parts for
after-sales service has to be referred to this service manual, with
the first priority.

For this reason, please use this service manual with referring to
the CD-84 (N) service manual, without fail.

SHOCK, FIRE HAZARD SERVICE TEST:

CAUTION: After servicing this appliance and prior to returning
to customer, measure the resistance between either primary AC
cord connector pins (with unit NOT connected to AC mains and
its Power switch ON), and the face or front Panel of product and
controls and chassis bottom.

Any resistance measurement less than 1 Megohms should
cause unit to be repaired or corrected before AC power is
applied, and verified before return to user/customer.

Ref. UL Standard NO. 1270. Para. 66.3D (Mandatory Test after
servicing Electrical Appliances, effective 7-1-83).

Finnish: VAROlTUS. Laite sisaltaa laserdiodin, joka lahettaa
(nakymatonta) simille vaarallista laserséteilya.

CLASS 1
LASER PRODUCT

maranll®
