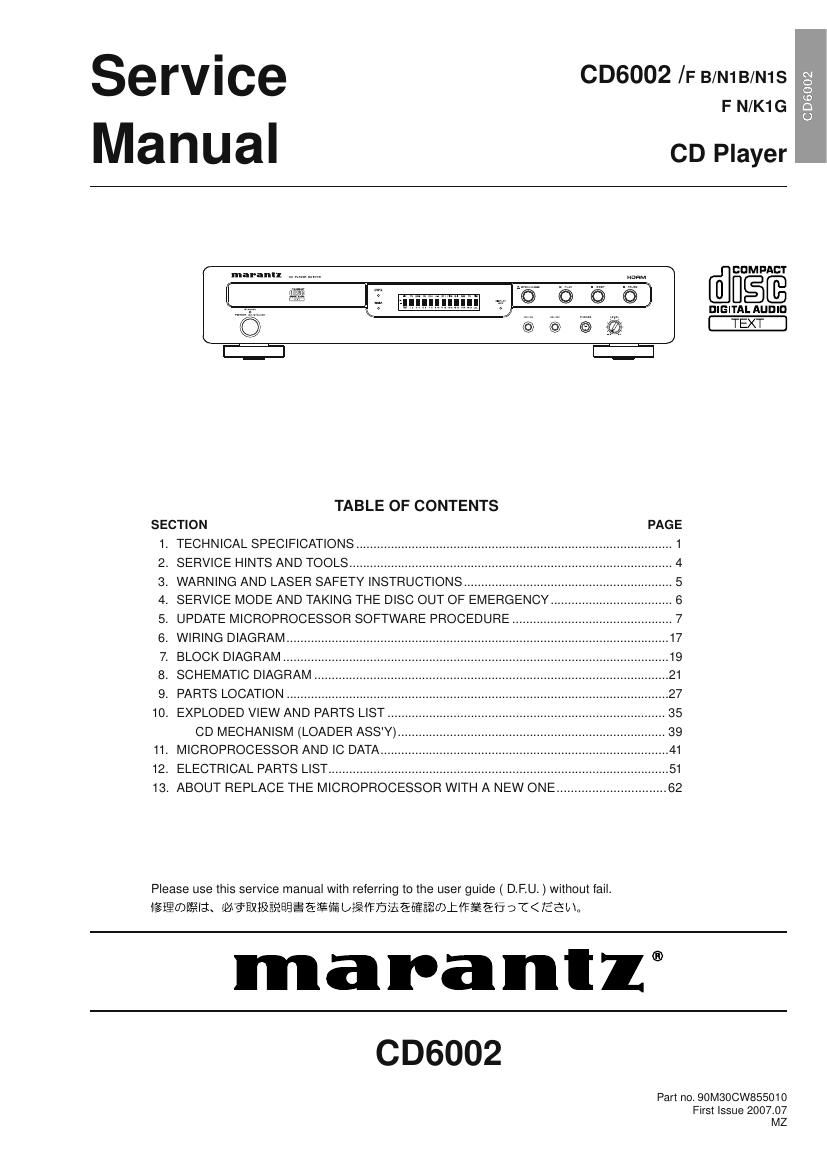

Marantz CD 6002 Service Manual

Page 1

SerVice CDBOOZ /F B/N1B/N1S

F N/K1G

Manual CD Player

maranu

I

Nam @EIDMSITBCT
DIGITAL AUDIO

@ ® @ -TEXT

TABLE OF CONTENTS

SECTION
1. TECHNICAL SPECIFICATIONS
SERVICE HINTS AND TOOLS...
WARNING AND LASER SAFETY INSTRUCTIONS .........................
SERVICE MODE AND TAKING THE DISC OUT OF EMERGENCY
UPDATE MICROPROCESSOR SOFTWARE PROCEDURE
WIRING DIAGRAM .................................................................
BLOCK DIAGRAM ............
SCHEMATIC DIAGRAM
PARTS LOCATION .............................
EXPLODED VIEW AND PARTS LIST
CD MECHANISM (LOADER ASS'Y).
11. MICROPROCESSOR AND IC DATA ......
12. ELECTRICAL PARTS LIST ...................................................................
13. ABOUT REPLACE THE MICROPROCESSOR WITH A NEW ONE..

propoyrnsnewiv

Please use this service manual with referring to the user guide ( D.F.U. ) without fail.
Iigi§wif%i3\ M?E¥}&E%EE§EEIE L/ §I$E§£EEEEE®LIT¥EG 3T< ESL in

maranl 1 ®
CD6002

Part no. 90M30CW855010
First Issue 2007.07
MZ

Page 2

MARANTZ DESIGN AND SERVICE

Using superior design and selected high grade components, MARANTZ company has created the ultimate in stereo sound.
Only original MARANTZ parts can insure that your MARANTZ product will continue to perform to the specifications for which
it is famous.

Parts for your MARANTZ equipment are generally available to our National Marantz Subsidiary or Agent.

ORDERING PARTS :

Parts can be ordered either by mail or by Fax.. In both cases, the correct part number has to be specified.

The following information must be supplied to eliminate delays in processing your order:

1. Complete address

2. Complete part numbers and quantities required

3. Description of parts

4. Model number for which part is required

5. Way of shipment

6. Signature : any order form or Fax. must be signed, othenNise such part order will be considered as null and void.

- USA - - EUROPE/TRADING - 7 CANADA
MARANTZ AMERICA,INC MARANTZ EUROPE B.V. MARANTZ CANADAINC.
100 CORPORATE DRIVE P. 0. BOX 8744, BUILDING SILVERPOINT 57505 APPLE CREEK BLVD.
MAHWAH, NEW JERSEY 07430 BEEMDSTRAAT 11, 5653 MA EINDHOVEN MARKHAM, ONTARIO L3H 531
USA THE NETHERLANDS CANADA
PHONE :+31 , 40 , 2507844 PHONE : 905 , 415 , 9292
FAX :+51 » 40 , 2507860 FAX :905 , 475 » 4159
- JAPAN 7 KOREA -
D&M Holdings Inc. fifigfi ?47PyFIAm7JD?4 ydx D&M SALES AND MARKETING KOREA LTD.
D&M BUILDING, 2,1 NISSHINVCHO, CHUNG JIN BID., #1001,
KAWASAKIVKU, KAWASAKIVSHI, 5375, WONHYORO 3 GA, YONGSANVGU,
KANAGAWA, 2103569 JAPAN 71 Ti T21078569 SEOUL, 1407719, KOREA
WfiIIIfiIIIWfimIIIWfiEEEWZA D&MEID PHONE : +82 , 2 , 323 , 2155
FAX 1+8272732372154

7 CHINA

MARANTZ SHANGHAI TRADING LTD.
FIOOM.506 SHANGHAI LIGHT INDUSTRY MANSION
1578 NANJING (WEST) ROAD SHANGHAI
CHINA

TEL : 021 , 6248 , 1064

FAX : 021 , 6248 , 3565

NOTE ON SAFETY :

Symbol A Fire or electrical shock hazard. Only original parts should be used to replaced any part marked with symbol A .
Any other component substitution (other than original type), may increase risk of fire or electrical shock hazard.

figrmiig :
Abottfltéafitla. fifiiigfigficfisfim flxdtaienfttégfiEJ§-��®e®Eifififi b'CTéuo

SHOCK, FIRE HAZARD SERVICE TEST :

CAUTION : After servicing this appliance and prior to returning to customer, measure the resistance between either primary AC
cord connector pins ( with unit NOT connected to AC mains and its Power switch ON ), and the face or Front Panel of product
and controls and chassis bottom.

Any resistance measurement less than 1 Megohms should cause unit to be repaired or corrected before AC power is applied,
and verified before it is return to the user/customer.

In case of difficulties, do not hesitate to contact the Technical
Department at above mentioned address.

070115MZ
