Marantz CC 4001 Service Manual

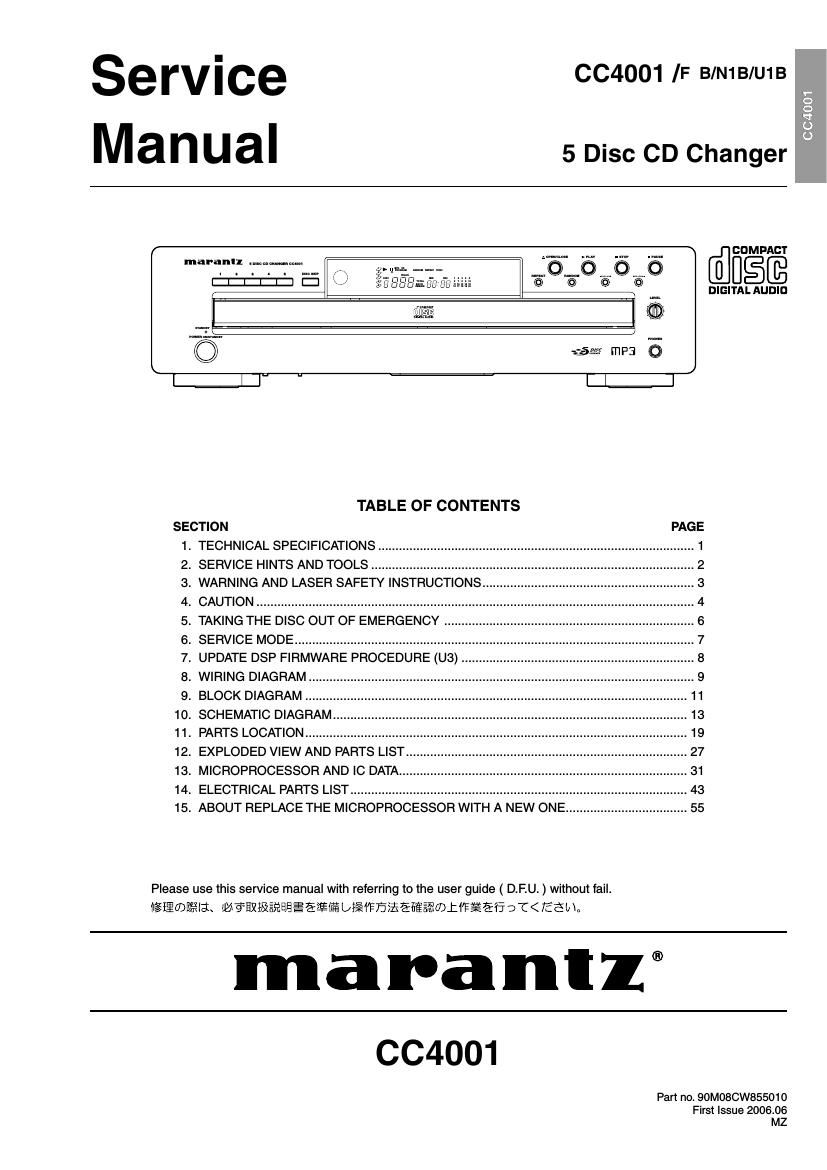

Page 1

Service
Manual

CC4001 /F B/N1B/U1B

5 Disc CD Changer

"°"'.. 7.".""".-... MO 66,6

SECTION
1 .

11.
12.
13.
14.
15.

WNFWPPN

TABLE OF CONTENTS

TECHNICAL SPECIFICATIONS
SERVICE HINTS AND TOOLS ..
WARNING AND LASER SAFETY INSTRUCTIONS
CAUTION ..
TAKING THE DISC OUT OF EMERGENCY .
SERVICE MODE ................................................
UPDATE DSP FIRMWARE PROCEDURE (U3)
WIRING DIAGRAM ...............................................................................................................
BLOCK DIAGRAM ........
SCHEMATIC DIAGRAM
PARTS LOCATION ............................
EXPLODED VIEW AND PARTS LIST..
MICROPROCESSOR AND IC DATA....
ELECTRICAL PARTS LIST .............................................................
ABOUT REPLACE THE MICROPROCESSOR WITH A NEW ONE

{D

Please use this service manual with referring to the user guide ( D.F.U. ) without fail.
Iigiiajiifia. %¢HY¥&§REH§EZE1E DI§I$E5£EEEEEQLI¢¥EE 3-C< 736M.

COMPACT

DIGITAL AUDID

marantz®

CC4001

Part no. 90MOSCW855010
First Issue 2006.06

MZ

Page 2

MARANTZ DESIGN AND SERVICE

Using superior design and selected high grade components, MARANTZ company has created the ultimate in stereo sound.
Only original MARANTZ parts can insure that your MARANTZ product will continue to perform to the specifications for which

it is famous.

Parts for your MARANTZ equipment are generally available to our National Marantz Subsidiary or Agent.

ORDERING PARTS :

Parts can be ordered either by mail or by Fax.. In both cases, the correct part number has to be specified.
The following information must be supplied to eliminate delays in processing your order :

1. Complete address

2. Complete part numbers and quantities required

3. Description of parts

4. Model number for which part is required

5. Way of shipment

6. Signature : any order form or Fax. must be signed, otherwise such part order will be considered as null and void.

7 USA

MARANTZ AMERICA, INC
100 CORPORATE DRIVE
MAHWAH, NEW JERSEY 07430
USA

7 EUROPE I TRADING

MARANTZ EUROPE B.V.

P. 0. BOX 8744, BUILDING SILVERPOINT
BEEMDSTRAAT 11, 5653 MA EINDHOVEN
THE NETHERLANDS

PHONE : +31 - 40 - 2507844

FAX : +31 - 40 - 2507860

- CANADA

MARANTZ CANADA INC.
5-505 APPLE CREEK BLVD.
MARKHAM, ONTARIO L3R 581
CANADA

PHONE : 905 - 415 - 9292

FAX : 905 - 475 - 4159

- AUSTRALIA

OuaIiFi Ply Ltd,

24 LIONEL ROAD,

MT. WAVERLEY VIC 3149
AUSTRALIA

PHONE: +61 - (0)3 - 9543 - 1522
FAX : +61 - (0)3 - 9543 - 3677

, THAILAND

MRZ STANDARD CO., LTD

746 - 754 MAHACHAI ROAD.,
WANGBURAPAPIROM, PHRANAKORN,
BANGKOK, 10200 THAILAND

PHONE : +66 - 2 - 222 9181

FAX : +66 - 2 - 224 6795

SINGAPORE

WO KEE HONG DISTRIBUTION PTE LTD
No.1 JALAN KILANG TIMOR

#08-03 PACIFIC TECH CENTRE

SINGAPORE 159303

PHONE : +65 6376 0338

FAX : +65 6376 0166

7 NEW ZEALAND
WILDASH AUDIO SYSTEMS N2
14 MALVERN ROAD MT ALBERT
AUCKLAND NEW ZEALAND
PHONE 24-64 - 9 - 8451958
FAX : +64 - 9 - 8463554

7 TAIWAN
PAI- YUING CO., LTD.
6 TH FL NO, 148 SUNG KIANG ROAD,
TAIPEI, 10429, TAIWAN R.O.C.
PHONE : +886 - 2 - 25221304
FAX : +886 - 2 - 25630415

- MALAVSIA -
WO KEE HONG ELECTRONICS SDN. BHD.
2ND FLOOR BANGUNAN INFINITE CENTRE
LOT 1, JALAN 13/6, 46200 PETALING JAYA
SELANGOR DARUL EHSAN, MALAYSIA
PHONE : +60 - 3 - 7954 8088
FAX :+60 - 3 - 7954 7088

- JAPAN
D&M Holdings Inc.
D&M BUILDING, 2-1 NISSHIN»CHO,
KAWASAKI-KU, KAWASAKI-SHI,

lifififi F4 *7) Flhmiib?4 yd}

- KOREA
MAFIANTZ KOREA CO., LTD.
ROOM 604, ELECTRO OFFICE, 16-58,
HANGGANG-RO 3GA, YONGSAN-KU,

2< #1 mzwrssss
fiiilfiiillfifiiillifiEEISEEJZ-i D&Mt:)v

KANAGAWA, 210-8569 JAPAN SEOUL, 140-013, KOREA
PHONE : +82 - 2 - 323 - 2155

FAX :+82 - 2 - 323 - 2154

7 CHINA
MAFIANTZ SHANGHAI TRADING LTD.
ROOM.506 SHANGHAI LIGHT INDUSTRY MANSION
1578 NANJING (WEST) ROAD SHANGHAI
CHINA
TEL :021 - 6248 - 1064
FAX : 021 - 6248 - 3565

SHOCK, FIRE HAZARD SERVICE TEST :

CAUTION : After servicing this appliance and prior to returning to customer, measure the resistance between either primary AC
cord connector pins ( with unit NOT connected to AC mains and its Power switch ON ), and the face or Front Panel of product
and controls and chassis bottom.

Any resistance measurement less than 1 Megohms should cause unit to be repaired or corrected before AC power is applied,
and verified before it is return to the user/customer.

Ref. UL Standard No. 6500.

In case of difficulties, do not hesitate to contact the Technical
Department at above mentioned address.

060607MZ
