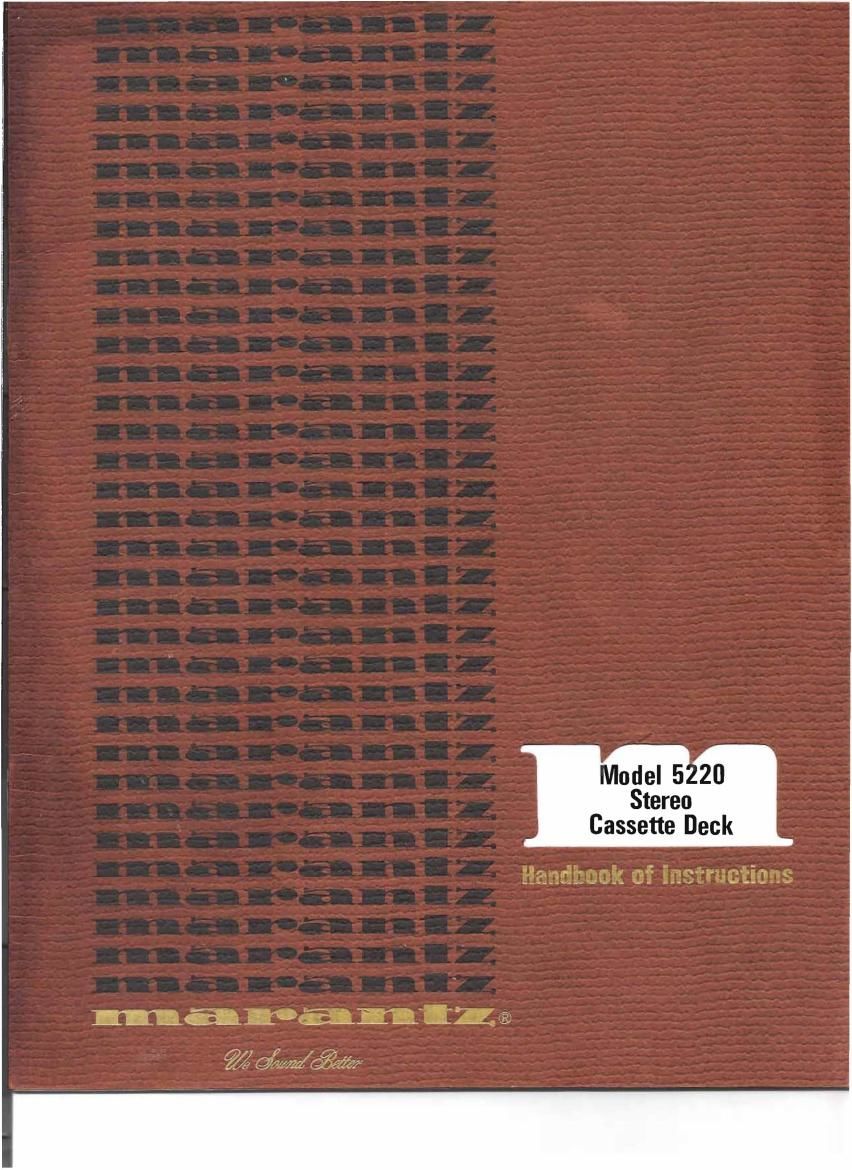

Page 1
Model 5220
Stereo
~ R Cassette Deck
MARANTZ CO., INC . 20525 NORDHOFF STREET, CHATSWORTH , CALIFORNIA 91311
A WHOLLY-OWNED SUBSIDIARY OF SUPERSCOPE INC., CHATSWORTH, CALIFORNIA 91311
Page 2
E o FT A
To obtain maximum performance and enjoyment
from the Model 5220 Stereo Cassette Deck,
please
study these ins tru c tio ns c a refully. Inst all
i ng and ope
rat ing the Mode l 5220 is not com pi i
cated,
but the flexib i lity p rov ided by its nume
rous operating features merits
your becoming
fam il iar
with its controls and connections. Our
recommended procedures will assure you of
securing the superb performance for which the
Model 5220 was designed.
For convenience, this manual is divided into three
parts.
The first part covers installation. The
second part outlines a simplified operating pro
cedure. The third part provides a more detailed
description of the features of the Model 5220,
and explains some of the finer points of recording
techniques. Technical specifications are also in
cluded in
this part.
For quick identification of the many controls,
connection facilities, and adjustments on the
Model 5220 all references to them in this manual
are
printed in BOLDFACE type.
AC Line Operation
WARNING : TO PREVENT FIRE OR SHOCK HAZARD, 00
NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
It i s advisable to reta in all original packing
material
to p revent dam age should you wish to
transport or ship the Model 5220 (refe r to page
16
for repacking and sh ipping instructions). Be
careful that
you do not inadvertently throwaway
or lose the parts packed with the unit.
Please inspect your Model 5220 Stereo Cassette
Deck
carefully for any signs of shipping damage.
Our very strict qu ality control and profess ional
pride ensure that each Model 5220 left the
factory in perfect condition. If the unit is
damaged or fails
to operate, immediately notify
your dealer. If the unit was shipped to you
directly, notify the transportation company with
out delay. Only you, the consignee, may institute
a claim against the carrier for shipping damage.
Save the
carton and all packing material as
evidence
of damage for their inspection. Should
assistance be required, the Marantz Company will
cooperate fully in assisting your claim.
Please
fill out and m ail the Warranty Registration
Card
within ten days of purchase. The card will
rema in on fi le at the Marantz Company for the
durat ion of the warr anty per iod. We a lso st rongly
ad vise that you ret ain your sales rece ipt to
prov ide proof of purchase in the event that
Warranty service is sought.
