MORE POWER. MORE
FEATURES 'I'IIAR EVEII
_- 1 (ya/.2252 .
[AH I M)
M 25,-!) MONlYm WHO I'ILIIH
moon
H . .m-K
5 ..
a -' c
IJ. "7"! E\ "5": 2
5 1' H _I M
phones sch-(10'-
.....................
bass
mid
......................
lreb'e
aflyflfilffl. fiflaw'w'
GYRO' TOUCH TUNING 5
PHASE LOCKED LOOP
volume po\vr
IOIPOOIIOIIIO

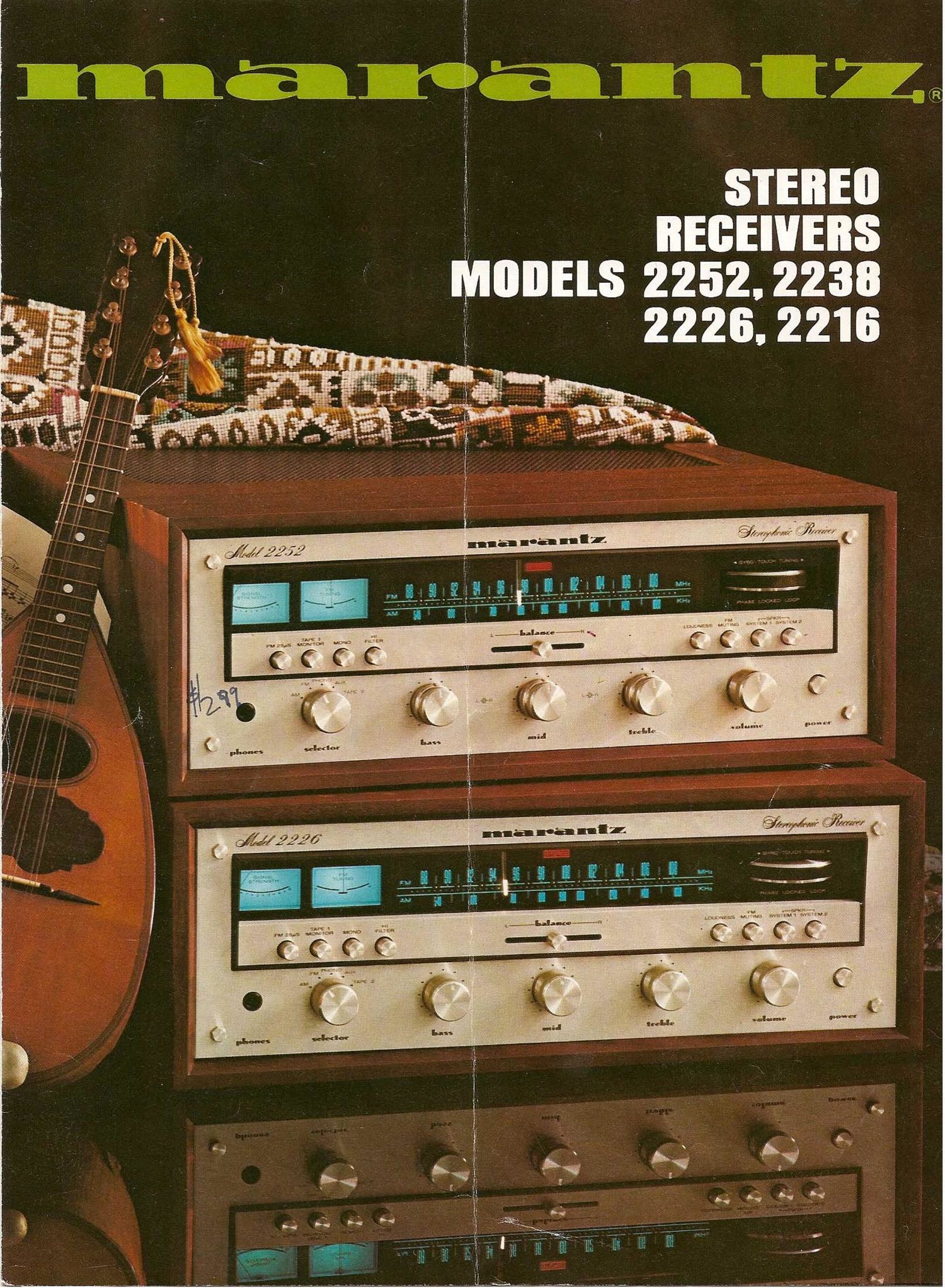

Marantz MOIIGIS 2252.
2238. 2226 and 2216
-I0lll' III the
OIIOIIIIIO ROW MOPOMZ
POOOIVOPS IOI 1977.
Never until now has a line of stereo
receivers packed so much muscle and
so little distortion.
The Marantz 2252 produces a mini-
mum continuous power output of 52
watts per channel, with no more than
0.1% total harmonic distortion, from 20
Hz to 20 kHz, both channels driven into
8 ohms.
Under the same conditions, the 2238
delivers 38 watts per channel, with no
more than 0.1% total harmonic distor-
tion. The 2226 delivers 26 watts per
channel, with no more than 0.3% THD.
And the 2216 delivers 16 watts per
channel, with no more than 0.5% THD.
Whichever Marantz receiver you
choose, you get the same technical ex-
pertise and uncompromising standards
of excellence that made Marantz the
worlds most respected name in high
fidelity.
A Marantz may cost more than an
ordinary stereo receiver. But thats be-
cause we put more quality into a
Marantz. And it's because a Marantz is
designed to continue to meet its speci-
fications through years of steady per-
formance.
You dont just buy a Marantz, you
invest in it.
POWER AMPLIFIER SEOIIOI
Fllll comnlementarv
symmetry OIIIIIIII
Every Marantz receiver features a full
complementary symmetry output stage
-the same design used extensively in
Marantz professional components. Its
more costly than the quasi-comple-
mentary outputs of many receivers. But
it assures significant performance im-
provements in linearity and harmonic
and intermodulation distortion over oth-
er types of output stage circuitry.
The Marantz output stage design also
produces an exceptionally wide Safe
Operating Area - that range where
voltage, current and temperature con-
ditions permit reliable output stage op-
eration. The result is an amplifier sec-
tion so stable, it will drive a load at
virtually any frequency or level without
breaking down.
Output devices and speakers are
guarded by a sophisticated energy-
sensing protection circuit, which elimi-
nates distortion caused by the tradition-
al protection circuitry used in ordinary
receivers.
OUASI- FULL
COMPLEMENTARY
OUTPUT
CIRCUIT
COMPLEMENTARY
OUTPUT
CIRCUIT
OII'OOI OOIIOIBO POWOI OIIIOIII
Provides wide power bandwidth, ex-
cellent lowfrequency transient response
and improved damping factors.
CAPACITOR
COUPLED (
II
II
DIRECT
COUPLED I]:
TRANSFORMER
COUPLED CC
SINGLE
CHANNEL
INPUT
Early transistorized power amplifiers
incorporated either a transformer or a
capacitor between output stage and
speaker terminals. However necessary
this was for adequate output-to-speak-
er coupling, it tended to limit low fre-
