Manley laboratories d to a converter owners manual

This is the 9 pages manual for manley laboratories d to a converter owners manual.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

Page: 1 / 9
left right
manley laboratories d to a converter owners manual

Extracted text from manley laboratories d to a converter owners manual (Ocr-read)

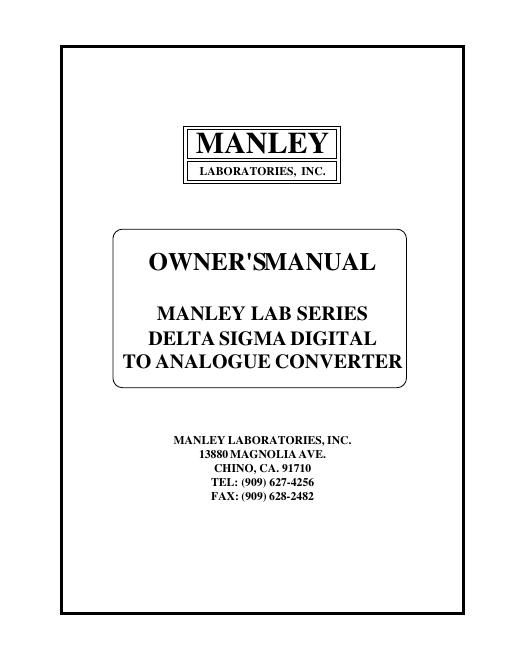

Page 1

CONTENTS INTRODUCTION3 MAINS CONNECTIONS4 CONNECTING YOUR CONVERTER5 OPERATIONAL NOTES6 SPECIFICATIONS7 WARRANTY8 WARRANTY REGISTRATION9 SECTION PAGE

Page 2

INTRODUCTIONTHANK YOU!... for choosing the Manley LAB SERIES DELTA SIGMA DIGITAL TO ANALOGUE CONVERTER. Designed by David Manley, the CONVERTERS use only the best available components, with the shortest and cleanest signal path possible. The circuit and the components used have been chosen carefully after years of development and refinement for reliability, constancy and most importanly, musical, accurate, and emotional delivery of the sound. The circuit topology is similar to other designs in the MANLEY range. The CONVERTER features SPDIF inputs followed by an anti-jitter digital conditioning circuit. The CONVERTER chip is a recent 18 bit DELTA SIGMA design used mostly in professional applications. The ANALOGUE LINE STAGE is true cathode follower TUBE design to render the most musical and truest presentation to the listener. GENERAL NOTES LOCATION & VENTILATION The Manley must be installed in a stable location with ample ventilation. Allow a minimum of 1 inch of clearance over the top of the converter such that a constant flow of air can flow. WATER & MOISTURE As with any electrical equipment, these converters should not be used near water or moisture. If liquid enters the converter, it must be immediately returned to your dealer for servicing. SERVICING The user should not attempt to service the converter beyond that described in the owner's manual. Refer all servicing other than tube replacement to Manley Laboratories SPECIAL NOTES Tubes may become loose during transit. Straighten and press down each tube before plugging the converter into the mains socket. Furthermore, do not touch the tubes after the converter has been switched on, as the tubes become very hot during operation and should only be handled after the power has been turned off and the tubes have cooled. Your converter has been factory set to the correct mains voltage for your country. The voltage setting is marked on the serial badge, located on the rear panel. Check that this complies with your local supply. Thank you again, and please enjoy!
